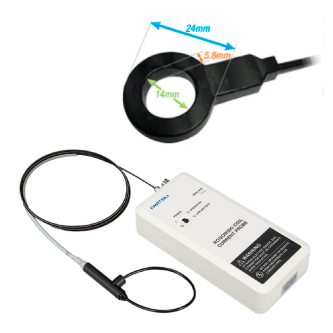

GRAPHTEC IWATSU Rogowski Coil Current Probe SS-680 Series
Achieved 100MHz Measurement Frequency Bandwidth, suitable for evaluation of High-Speed Power Devices,such as SiC and GaN, etc. -

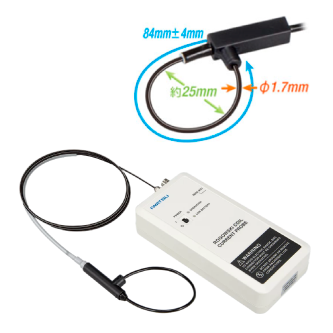

GRAPHTEC IWATSU Rogowski Coil Current Probe SS-280A Series
Equipped with 1.7mm Thin Sensor Coil Wire Diameter, suitable for direct probing to TO Type MOSFET, IGBT Devices which are widely used for Power Electronics Equipment, such as Switching Power Supplies. -

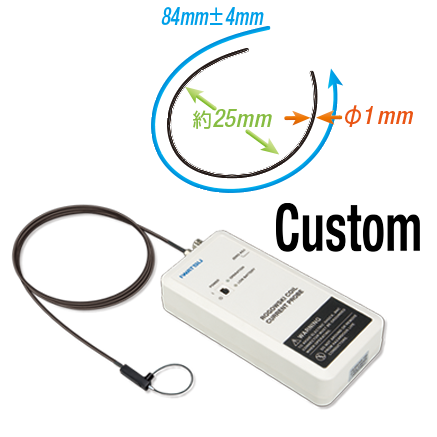

GRAPHTEC IWATSU Rogowski Coil Current Probe SS-660 Series
Ultra Thin Coil φ1mm. Frequency Bandwidth: 30MHz -

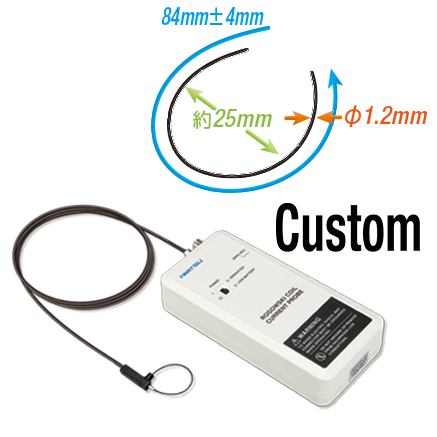

GRAPHTEC IWATSU Rogowski Coil Current Probe SS-660P Series
Ultra Thin Coil φ1.2mm. Frequency Bandwidth: 30MHz -

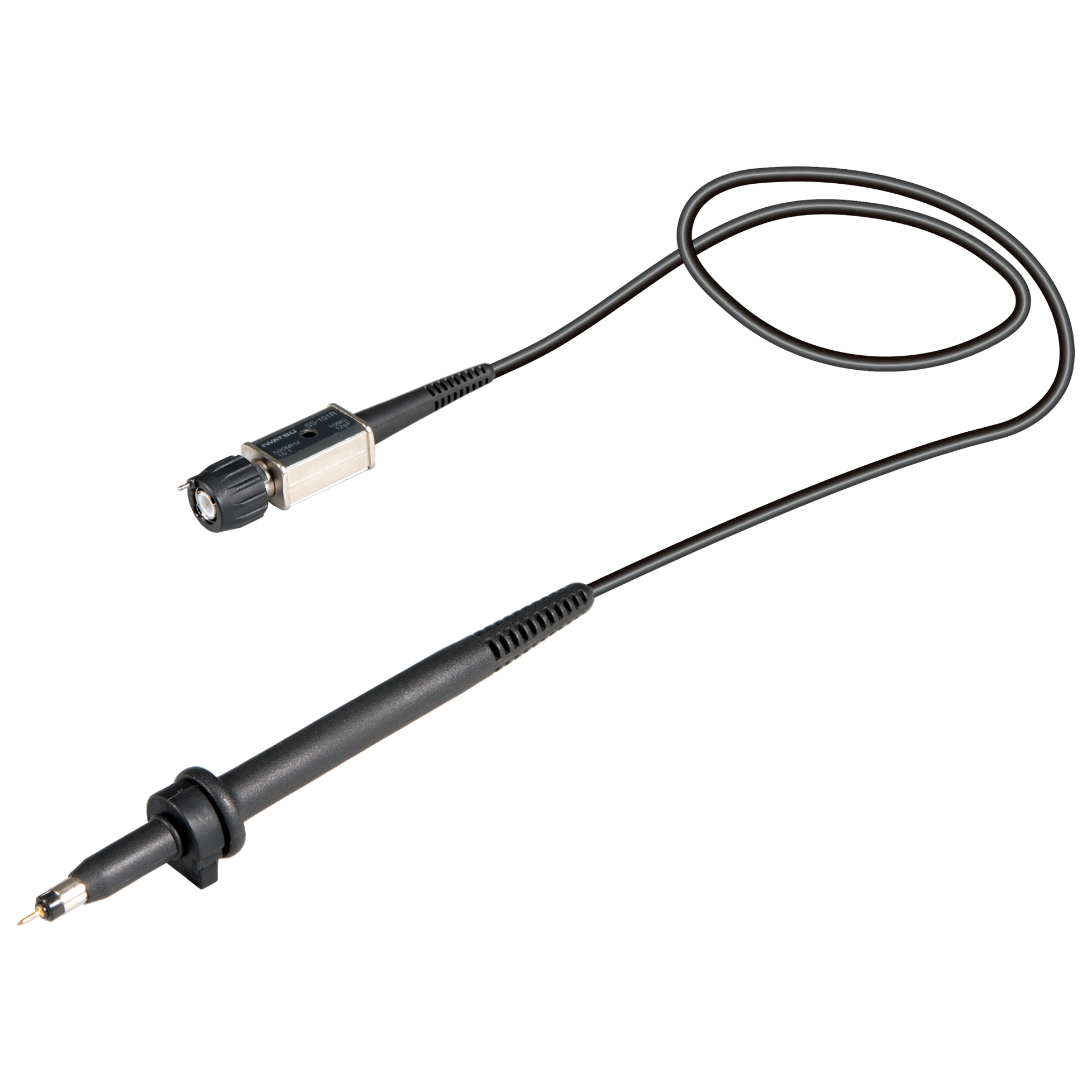

GRAPHTEC IWATSU Passive Probes for Oscilloscopes
Our recommended standard probe for oscilloscopes (4 types) -

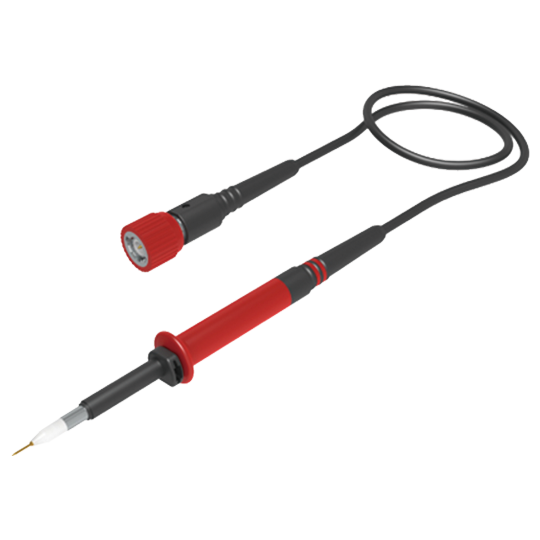

GRAPHTEC IWATSU High Voltage Passive Probe PHV1000
Can also be used for a wide range of general-purpose oscilloscopes! High voltage 1kV (CAT II), 2kVpeak (No Category) probes (12 types) -
GRAPHTEC IWATSU High Voltage Passive Probe PHV2000 / PHVS2000
Can also be used for a wide range of general-purpose oscilloscopes! High voltage 1kV (CAT II), 4kVpeak (No Category) probes (24 types) -
GRAPHTEC IWATSU Rogowski Coil Current Probe SS-280A-H Series
Equipped with 1.7mm Thin Sensor Coil Wire Diameter, suitable for direct probing to TO Type MOSFET, IGBT Devices which are widely used for Power Electronics Equipment, such as Switching Power Supplies. -

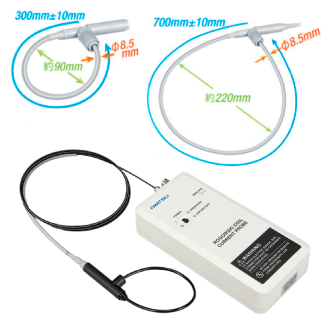

GRAPHTEC IWATSU Rogowski Coil Current Probe SS-290S & SS290L Series
Rogowski Coil Current Probe SS-290S & SS290L Series -
GRAPHTEC IWATSU Rogowski Coil Current Probe SS-620S & SS-620M Series
Equipped with 3.0mm Thin Sensor Coil Wire Diameter, and Max. 5kV peak withstanding Voltage. -

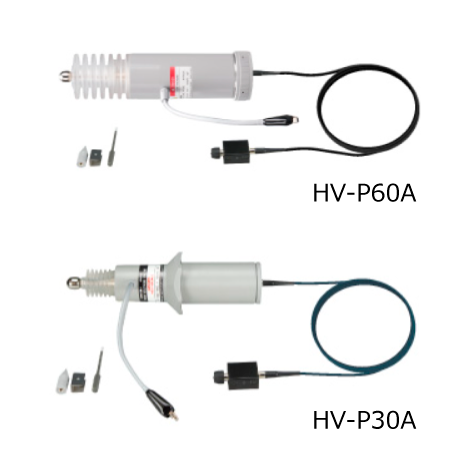

GRAPHTEC IWATSU High Voltage Probe HV-P Series
Probes with excellent waveform quality for high voltage measurement of up to 60kV and 30kV (2 types) -
【IWATSU ELECTRIC】High Bandwidth Active Probe – FET Probe Sonic Series Sonic 4000
For crystal/high frequency digital circuits measurement
Frequency Bandwidth: DC~4GHz -
【IWATSU ELECTRIC】Rogowski Coil Current Probe SS-280A Series SS-289A
Frequency Bandwidth: 2Hz～30MHz
Max. Peak Current: 12kA, Max. Peak Voltage: 1.2kV -
【IWATSU ELECTRIC】Rogowski Coil Current Probe SS-280A Series SS-288A
Frequency Bandwidth: 2Hz～30MHz
Max. Peak Current: 6kA, Max. Peak Voltage: 1.2kV -
【IWATSU ELECTRIC】Rogowski Coil Current Probe SS-280A Series SS-287A
Frequency Bandwidth: 2Hz～30MHz
Max. Peak Current: 3kA, Max. Peak Voltage: 1.2kV -
【IWATSU ELECTRIC】Rogowski Coil Current Probe SS-280A Series SS-286A
Frequency Bandwidth: 3Hz～30MHz
Max. Peak Current: 1.2kA, Max. Peak Voltage: 1.2kV -
【IWATSU ELECTRIC】Rogowski Coil Current Probe SS-280A Series SS-285A
Frequency Bandwidth: 6Hz～30MHz
Max. Peak Current: 600A, Max. Peak Voltage: 1.2kV -
【IWATSU ELECTRIC】Rogowski Coil Current Probe SS-280A Series SS-284A
Frequency Bandwidth: 9Hz～30MHz
Max. Peak Current: 300A, Max. Peak Voltage: 1.2kV -
【IWATSU ELECTRIC】Rogowski Coil Current Probe SS-280A Series SS-283A
Frequency Bandwidth: 32Hz～30MHz
Max. Peak Current: 120A, Max. Peak Voltage: 1.2kV -
【IWATSU ELECTRIC】Rogowski Coil Current Probe SS-680 Series SS-689
Frequency Bandwidth: 2Hz～30MHz
Max. Peak Current: 12kA, Max. Peak Voltage: 1.2kV -
【IWATSU ELECTRIC】Rogowski Coil Current Probe SS-680 Series SS-688
Frequency Bandwidth: 3Hz～30MHz
Max. Peak Current: 6kA, Max. Peak Voltage: 1.2kV
