- Science Instruments / Analysis Equipment
- Particle Counters

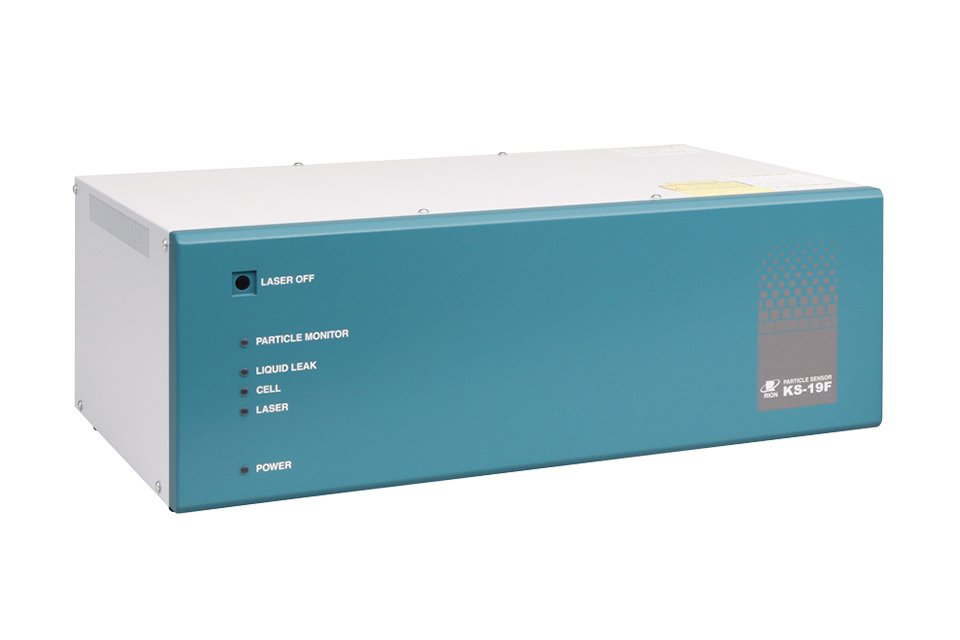

- RION Liquid-borne Particle Counters KS-19F
For Chemical HF 0.03 µm
Detects particles to 0.03 µm
Compatible with Hydrofluoric acid
With abundant options, it can be used for both in-line and off-line measurement
Liquid-borne Particle Counters
Model:
KS-19F
Maker:
RION CO., LTD.
Features
- Detects particles to 0.03 µm
- User can freely select particle size
Up to 10 channels from 0.03 µm to 0.13 µm - Sapphire flow cell
- With abundant options, it can be used for both in-line and off-line measurement
Specifications
| Item | Specifications |
|---|---|
| Optical system | Light-scattering method |
| Light source | Diode pumped solid state laser (wavelength: 532 nm, rated output 800 mW) |
| Materials of parts exposed to sample fluid | Sapphire, PFA |
| Measurement size range | 4 channels (Factory default):≥0.03 µm, ≥0.06 µm, ≥0.1 µm, ≥0.13 µm |
| Setting range | 0.03 µm to 0.13 µm |
| Flow rate | 10 mL/min |
| Maximum particle number concentration | 40,000 particles/mL (coincidence loss 10%) |
| Power requirements | DC12 V (Supplied by KE-40B1) |
| Dimensions | Approx. 170 (H) x 487 (W) x 310 (D) mm |
| Weight | Approx. 13.5 kg |
