- Science Instruments / Analysis Equipment
- Particle Counters

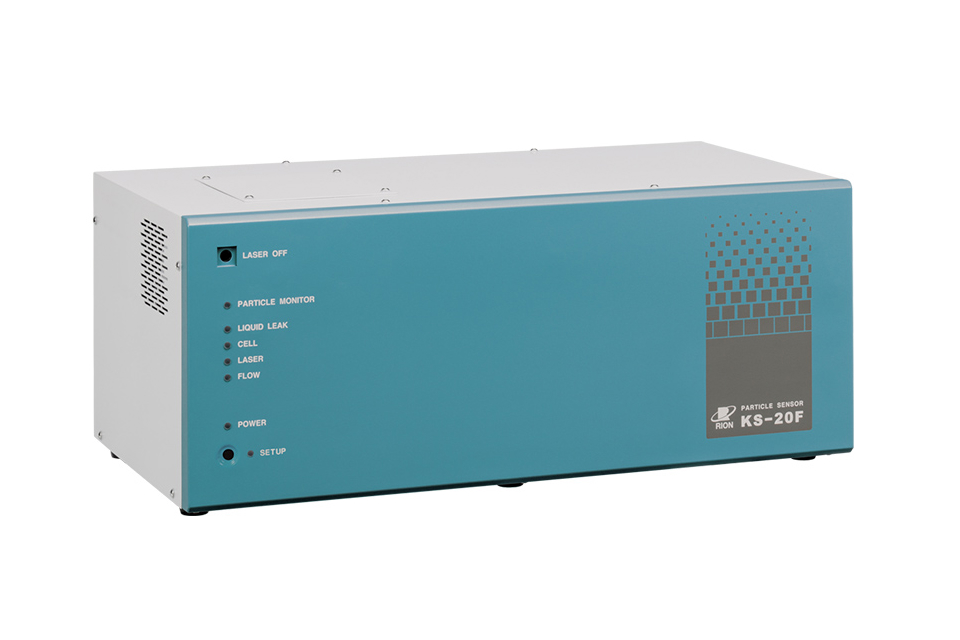

- RION Liquid-borne Particle Counters KS-20F
For Chemical HF 0.02 µm
Detects particles to 0.02 µm
Compatible with Hydrofluoric acid
With abundant options, it can be used for both in-line and off-line measurement
Liquid-borne Particle Counters
Model:
KS-20F
Maker:
RION CO., LTD.
Features
- Detects particles in chemical and upw down to 0.02 μm size, at a flow rate of 10 mL/min
- Particle size range
Up to 7 user selectable channels (by KE-40B1) from 0.02μm to 0.08μm
Factory default setting : 4 channels (≥0.02 μm, ≥0.03 μm, ≥0.04 μm, ≥0.06 μm) - Sapphire flow cell
- With abundant options, it can be used for both in-line and off-line measurement
Specifications
| Item | Specifications |
|---|---|
| Optical system | Light-scattering method |
| Light source | Diode pumped solid state laser (wavelength: 532 nm, rated output 1.5W) |
| Materials of parts exposed to sample fluid | Sapphire, PFA |
| Measurement size range | 4 channels (Factory default):≥0.02 µm, ≥0.03 µm, ≥0.04 µm, ≥0.06 µm |
| Setting range | 0.02 µm to 0.08 µm |
| Flow rate | 10 mL/min |
| Maximum particle number concentration | 50,000 particles/mL (coincidence loss 10%) |
| Power requirements | 100 to 240 V AC, 50/60 Hz, Approx. 250 VA |
| Dimensions | Approx. 235 (H) x 552 (W) x 340 (D) mm |
| Weight | Approx. 18 kg |
