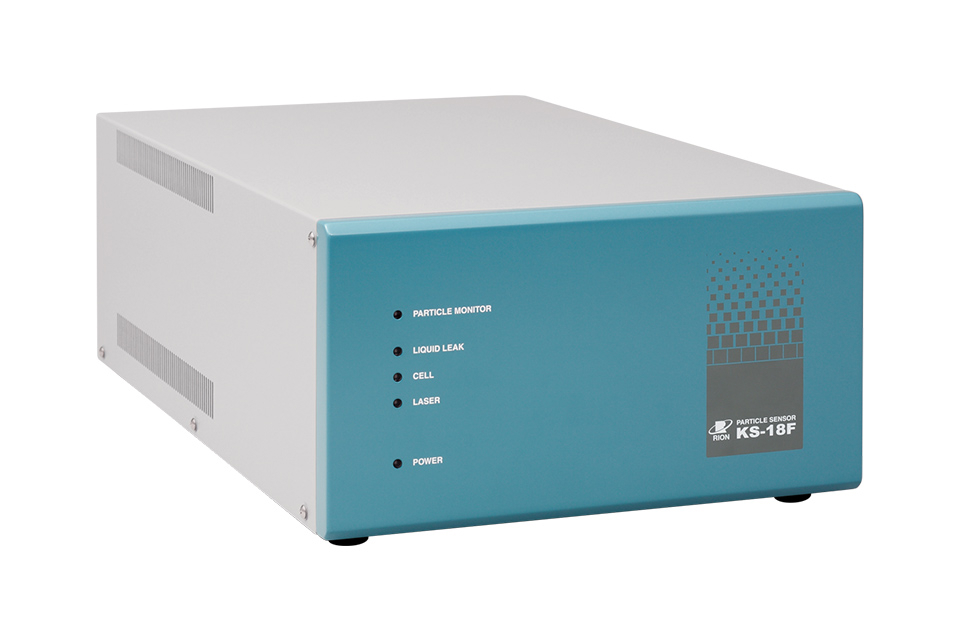

- RION Liquid-borne Particle Counters KS-18F
Detects particles down to 0.05 µm size, at a flow rate of 10 mL/min
Counting efficiency improved to 10%
Compatible with Hydrofluoric acid
Particle size resolution enhancement technology employed (patented)
Liquid-borne Particle Counters
Model:
KS-18F
Maker:
RION CO., LTD.
Features
- Detects particles down to 0.05 μm size, at a flow rate of 10 mL per minute
- Four particle size range (4 channels, factory default setting) ≥ 0.05 μm, ≥ 0.1 μm, ≥ 0.15 μm, ≥ 0.2 μm
- Integrated leak sensor with alarm output
- Sapphire flow cell
- User selectable channels within measurement range (using KE-40B1)
- Particle size resolution enhancement technology employed (patented)
Specifications
| Item | Specifications |
|---|---|
| Optical system | Light-scattering method |
| Light source | Diode pumped solid state laser (wavelength: 532 nm, rated output 500 mW) |
| Materials of parts exposed to sample fluid | Sapphire, PFA |
| Measurement size range | 4 channels (Factory default): ≥0.05 µm, ≥0.1 µm, ≥0.15 µm, ≥0.2 µm |
| Setting range | 0.05 µm to 0.2 µm |
| Flow rate | 10 mL/min |
| Maximum particle number concentration | 30,000 particles/mL (coincidence loss 10%) |
| Power requirements | DC12 V (Supplied by KE-40B1) |
| Dimensions | Approx. 147 (H) x 272 (W) x 442 (D) mm |
| Weight | Approx. 12 kg |
