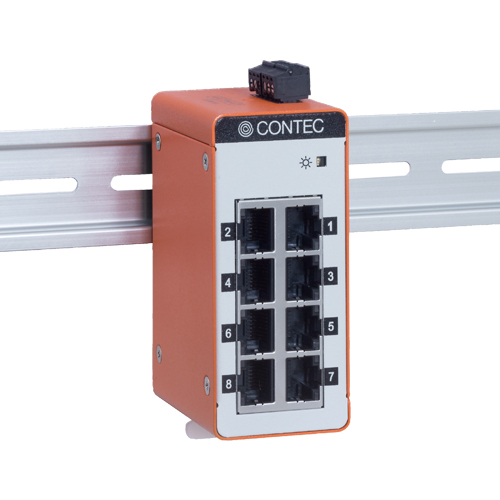

- CONTEC FLEXLAN Series 8 Ports 10/100M Unmanaged Industrial Switching HUB SH-8008F
With its compact size, it corresponds to 100BASE-TX in eight all port. 2-way power connector and reverse wiring protection within
This product is a compact-sized industrial switching HUB [40(W) x 60(D) x 90(H)mm] with 8 ports for IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T) compliant. In addition, the Auto MDI/MDI-X features automatic negotiation. An ideal product for the place where quietness is required as it contains no fan. Moreover, with metal that is excellent in heat dissipation, the product can operate in the temperature between -20 and + 60°C. There are two supplies of power, and function that prevents power from connecting in reverse.
FLEXLAN Series 8 Ports 10/100M Unmanaged Industrial Switching HUB
Model:
SH-8008F
Maker:
CONTEC Co., Ltd.
Features
- With its compact size, it corresponds to 100BASE-TX in eight all ports.
This product contains eight ports for IEEE802.3u (100BASE-TX)/ IEEE802.3(10BASE-T) in the compact size(40(W) x 60(D) x 90(H) mm). - 2-way power connector and reverse wiring protection within
The product supports 2-way power supply. Even when one of the power systems fails during the operation, the product continues functioning. Our safety design supports the product to function even when wires are connected in reverse. - Adaptable to a wide range of temperature between -20 and +60°C
The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments. - For Auto MDI/MDI-X feature, auto-negotiation feature
The Auto MDI/MDI-X feature automatically determines straight or crossover cable, avoiding wiring trouble due to wiring mistake. Moreover, auto-recognition function of communication rates (10/100Mbps) and communication methods (half/full duplex) by the auto-negotiation feature. - Installation on DIN rail is possible
As the product is mounted on the 35mm DIN rail, removing and replacing are easy as well. - Compatible with 8 – 35VDC wide range power
It is compatible with 8 – 35VDC wide range power and can be used in various power environment. In addition, An FG terminal is equipped in the power connector.
Specifications
HUB and PoE Injector
| HUB Function | 10M/100M switch |
|---|---|
| Number of Ports | x8 (10T/100TX) |
| Number of sfp Ports | |
| PoE Function | – |
System specifications
| Item | Specifications |
|---|---|
| Ethernet standards | IEEE802.3/IEEE802.3u-compliant |
| Data transfer rate | 10Mbps/100Mbps(auto-negotiation) |
| Access method | CSMA/CD |
| Communications method | All ports: Full/Half duplex (auto-negotiation) |
| Topology | Star topology |
| Flow control | FullDuplex: IEEE802.3x compliant flow control HalfDuplex: Back pressure |
| Number of effective ports | 8 |
| Switching method | Store and forward |
| Filtering speed | 8,130pps (at 10Mbps)/ 148,800pps (at 100Mbps) |
| Forwarding speed | 8,130pps (at 10Mbps)/ 148,800pps (at 100Mbps) |
| Address table | 1,024 entries |
| Buffer capacity | 448Kbits |
| Aging time | 300sec (Max.) |
| LED indicator | POWER(Green), LINK/ACT (Green), SPEED 10/100M (Orange) |
| Power supply voltage | 8V -35VDC±5% |
| Hybrid supply system *1 | Enable |
| Reverse polarity protection | Enable |
| FGpin | Power supply connector equipped with FG pin |
| Power consumption (Max.) | When inputting 12V: 0.12A When inputting 24V: 0.06A |
| Physical dimensions (mm) | 40(W) x 60(D) x 90(H) (exclusive of protrusions) |
| Material of the case | Metal shell |
| Weight | 215g |
| Module installation method | Attachment of a 35mm DIN rail. |
*1 This product can operate with a single power supply. Also, you can add redundancy to the power supply by adding a second power supply input.
