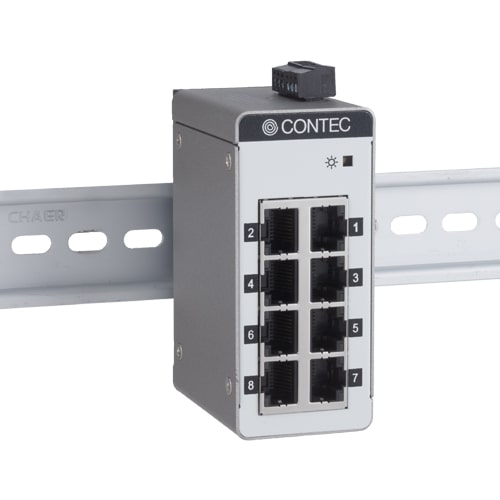

- CONTEC 8 Ports 10/100M Unmanaged Industrial Switching HUB SH-8008F-2
With its compact size, it corresponds to 100BASE-TX in eight all port. 2-way power connector and reverse wiring protection within
This product is an 100Mbit compact-sized industrial switching HUB (8 ports). This hub can be used in the places where the quietness or a longer lifetime of the product is desired. Furthermore, a metal housing with excellent heat dissipation enables the product to be operated in the temperature between -20°C and +60°C. This product has been arranged so that the DIN rail position is in the center, compared to the previous model. As a result, it can be installed in a variety of control panel.
8 Ports 10/100M Unmanaged Industrial Switching HUB
Model:
SH-8008F-2
Maker:
CONTEC Co., Ltd.
Features
- With its compact size, it corresponds to 100BASE-TX in eight all port
This product contains eight ports for IEEE802.3u (100BASE-TX)/IEEE802.3(10BASE-T) in the compact size(40(W) x 70(D) x 90(H) mm). - 2-way power connector and reverse wiring protection within
Even when one of the power systems fails during the operation, the product continues functioning. Our safety design supports the product to function even when wires are connected in reverse. - Adaptable to a wide range of temperature between -20 and +60°C
The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments. - Installation on DIN rail is possible
As the product is mounted on the 35mm DIN rail, removing and replacing are easy as well. - Compatible with 8 to 35VDC wide range power
It is compatible with 8 – 35VDC wide range power and can be used in various power environment. In addition, An FG terminal is equipped in the power connector.
Specifications
HUB and PoE Injector
| HUB Function | 10M/100M switch |
|---|---|
| Number of Ports | x8 (10T/100TX) |
| Number of sfp Ports | |
| PoE Function | – |
System specifications
| Item | Specifications |
|---|---|
| Ethernet standards | IEEE802.3/IEEE802.3u |
| Data transfer rate | 10Mbps/100Mbps (auto-negotiation) |
| Communications method | All ports: Full/Half duplex (auto-negotiation) |
| Flow control | Full Duplex: IEEE802.3x compliant flow control Half Duplex: Back pressure |
| Number of effective ports | 8 |
| Switching method | Store and forward |
| Filtering speed | 8,130pps (at 10Mbps) / 148,800pps (at 100Mbps) |
| Forwarding speed | 8,130pps (at 10Mbps) / 148,800pps (at 100Mbps) |
| Address table | 1,024 entries |
| Buffer capacity | 448Kbits |
| Aging time | 300sec (Max.) |
| LED indicator | POWER(Green), LINK/ACT (Green), SPEED 10/100M (Orange) |
| Power supply voltage *1 | 8V -35VDC±5% |
| Hybrid supply system *2 | Enable |
| Reverse polarity protection | Enable |
| FG pin | Power supply connector equipped with FG pin |
| Power consumption | When inputting 8V: 0.18A (Max.) When inputting 35V: 0.04A (Max.) |
| Physical dimensions (mm) | 40(W) x 70(D) x 90(H) (exclusive of protrusions) |
| Weight | 250g |
| Module installation method | Mounting on DIN rail or on the wall |
*1 Use the F&eITseries AC adapter [POA201-10-2 (recommended)] or a commercially available stabilized power supply.
*2 This product can operate with a single power supply. Also, you can add redundancy to the power supply by adding a second power supply input.
