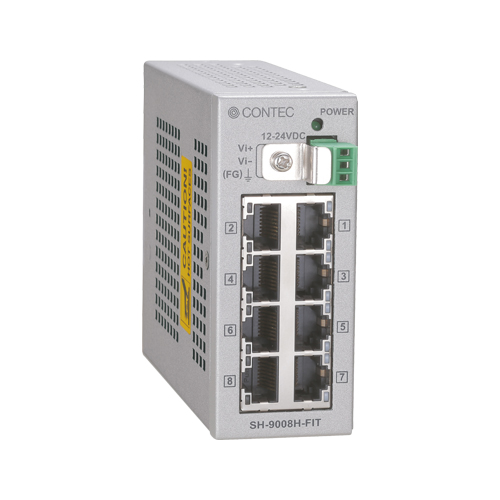

- CONTEC 10/100/1000M AUTO-MDIX Industrial Switching HUB(For DIN Rail, 8port) SH-9008H-FIT
Compact-sized (39 (W) × 120 (D) ×94 (H) mm) unit equipped with 8 ports capable of 1000BASE-T. For jumbo frame
SH-9008H-FIT is a compact-sized [39(W) × 120(D) × 94(H) mm] industrial switching HUB unit that is compliant with the IEEE802.3ab (1000BASE-T)/IEEE802.3u (100BASE-TX)/ IEEE802.3 (10BASE-T) standards. Its features include Jumbo Frame support, AutoMDI/MDI-X, auto-negotiation, and automatic power adjusting function. The automatic power adjusting function can reduce the power consumption by up to 60%. *1 With fan less configuration, SH-9008H-FIT is suitable for places where silence is required. In addition, the adoption of metal casing with great radiation performance enables the unit to be used in ambient temperatures of 0 to 50°C. A DIN rail mounting mechanism and the mounting brackets provided with the unit enable various types of installation. Please read this manual carefully so that you can build a system by connecting the switching HUB unit to external devices.
*1 The comparison result of measured values when all (eight) ports are in operation with those when all (eight) ports are unused.
10/100/1000M AUTO-MDIX Industrial Switching HUB(For DIN Rail, 8port)
Model:
SH-9008H-FIT
Maker:
CONTEC Co., Ltd.
Features
- Compact-sized (39 (W) × 120 (D) ×94 (H) mm) unit equipped with 8 ports capable of 1000BASE-T
mm) is equipped with the 8 ports that are compliant with IEEE802.3ab (1000BASE-T)/IEEE802.3u (100BASE-TX)/IEEE802.3 (10BASE-T). With fan less configuration, this product is suitable for places where silence is required. In addition, the adoption of metal casing with great radiation performance provides the operating ambient temperature of 0 to 50°C. - For jumbo frame
It is compatible with Jumbo Frame that increases transfer rate. Connection with Jumbo Frame compatible devices increases data transfer rate and contributes to increased transfer rate and reduced CPU load. - Auto MDI/MDI-X feature, auto-negotiation feature
The Auto MDI/MDI-X feature can automatically recognize the cable type, straight-through cable or crossover cable, to prevent problems using the wrong cable type. Also, the auto-negotiation feature can automatically recognize and choose the best communication rate (10/100/1000Mbps) and method (half/full duplex) available. - Automatic power adjusting function
This function can automatically adjust the power consumption of unused ports, enabling reduced power consumption by up to 60%. *1
*1 The comparison result of measured values when all (eight) ports are in operation with those when all (eight) ports are unused. - Flexible installation orientation
The unit is equipped with a 35mm DIN rail mounting mechanism as standard. Also, the mounting brackets provided with the unit make installation in any orientation possible (floor, ceiling, etc.). - Capable of running on a wide range of input voltages (12 to 24VDC)
The unit will function normally even if input voltage fluctuates within the acceptable range. In addition, the power connector includes an FG terminal.
Specifications
HUB and PoE Injector
| HUB Function | 10M/100M/1000M switch |
|---|---|
| Number of Ports | x8 (10T/100TX/1000T) |
| Number of sfp Ports | |
| PoE Function | – |
System specifications
| Item | Specifications | |
|---|---|---|
| Ethernet standards | IEEE802.3/IEEE802.3u /IEEE802.3ab –compliant | |
| Data transfer rate | 10Mbps/100Mbps/1000Mbps (auto-negotiation) | |
| Access method | CSMA/CD | |
| Communications method | All ports Full/Half duplex (auto-negotiation) | |
| Topology | Star topology | |
| Flow control | Full Duplex: IEEE802.3x compliant flow control Half Duplex: Back pressure |
|
| Number of effective ports | 8 | |
| Switching method | Store and forward | |
| Address table | 8,192 entries | |
| Jumbo frame*1 | 9.6Kbyte | |
| Buffer capacity | 512Kbyte | |
| Aging time | 300sec (Max.) | |
| LED indicator | POWER(Green), LINK/ACT 10M(Yellow), LINK/ACT 100M(Green), LINK/ACT 1000M(Green) |
|
| Power supply voltage | 12V -24VDC±5% | |
| FG pin | Power supply connector equipped with FG pin | |
| Power consumption (Max.) | When inputting 12V 0.65A, When inputting 24V 0.35A | |
| Physical dimensions (mm) | 39(W) x 120(D) x 94(H) (exclusive of protrusions) | |
| Weight | 360g (410g when the DIN rail fixation metal fittings(standard) or the flat putting fixing bracket is installed) | |
| Module installation method | One-touch attachment of a 35mm DIN rail. (Mounting mechanism is equipped with the main body as standard), Fixation with the mounting phase by using the flat putting fixing bracket and rubber feet. | |
*1 When using Jumbo Frame, it is necessary for other network devices on the communication route to be Jumbo Frame compatible.
