- CONTEC Industrial 8 Ports Unmanaged Gigabit PoE Ethernet Switching HUB SH-9008AT-POE2
PoE power supply function based on IEEE802.3af, IEEE802.3at. Eight of 1000BASE-T ports are equipped
This product is an eight-port, industrial switching hub that conforms to IEEE 802.3af/at and is capable of PoE power supply. You can use Category 5 or higher LAN cables to supply power from up to seven ports to devices that conform to IEEE 802.3af/at. The SH-9008AT-POE2 can supply up to 30 W per port and up to 105 W* over all ports. Various fixing brackets are available for installations on walls and 35 mm DIN rails.
The dedicated cascade connection port allows the hub to be expanded through these connections when the number of ports on a single hub is insufficient. Due to the fan-less design, this hub can be used in the places where the quietness or a longer lifetime of the product is desired.
* The supplied power will be limited by the power supply input voltage.

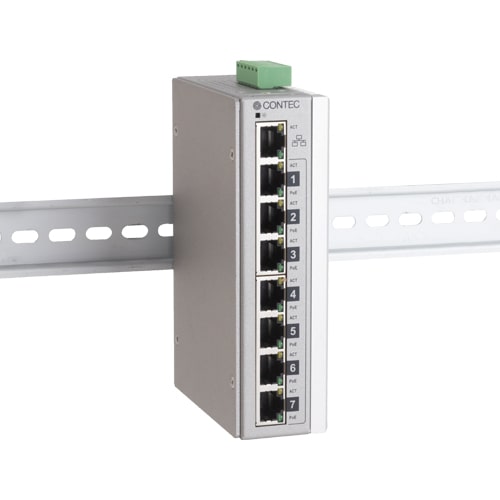

Industrial 8 Ports Unmanaged Gigabit PoE Ethernet Switching HUB
Model:
SH-9008AT-POE2
Maker:
CONTEC Co., Ltd.
Features
- PoE power supply function based on IEEE802.3af, IEEE802.3at
Power can be supplied to PoE devices that conform to IEEE802.3af, IEEE802.3at of maximum 7ports. Up to 30W per port and up to 105W * for all ports can be powered.
* There is a limit to supply the power depending on the power input voltages. - Eight of 1000BASE-T ports are equipped
The product has eight ports which conform to IEEE802.3ab(1000BASE T) / IEEE802.3u(100BASE-TX)/ IEEE802.3(10BASE-T). Due to the fan-less design, this hub can be used in the places where the quietness or a longer lifetime of the product is desired. - Capable of operating in a wide-ranged power inputs, and features dual power support
The product is capable of operating in a wide range of DC power between 12 and 54VDC. Moreover, dual power supports the product to continue to work even if one of the power supplies fails. - DIN rail mounting or Wall installation
With the supplied brackets, the product can be set on a 35mm-DIN rail or on the wall. - Cascade port
One of the eight Ethernet ports supports cascade connections, ensuring safe operation even when using cascade connections to link multiple instances of this product.
Specifications
HUB and PoE Injector
| HUB Function | 10M/100M/1000M switch |
|---|---|
| Number of Ports | x8 (10T/100TX/1000T) |
| Number of sfp Ports | |
| PoE Function | IEEE802.3at standard; IEEE802.3af standard |
System specifications
| Item | Specifications |
|---|---|
| Ethernet standards | IEEE802.3/IEEE802.3u/IEEE802.3ab/IEEE802.3af/IEEE802.3at *1 -compliant |
| Data transfer rate | 10Mbps/100Mbps/1000Mbps (auto-negotiation) |
| Communications method | All ports: Full/Half duplex (auto-negotiation) |
| Flow control | Full Duplex: IEEE802.3x compliant flow control Half Duplex: Back pressure |
| Number of effective ports | 8 |
| Number of PoE output ports | 7 |
| Switching method | Store and forward |
| Address table | 4,096 entries |
| Jumbo frame | 9Kbyte |
| Buffer capacity | 192Kbyte |
| Aging time | 300 seconds |
| LED indicator | POWER x1 (Green), ACT x 8 (Green), PoE x 7(Yellow) |
| Power supply voltage | 12V -54VDC±5% |
| FG pin | Power supply connector equipped with FG pin |
| Current consumption(Max.) | When PoE is not in use: 12V0.42A (Max.), 24V 0.23A(Max.), 57V 0.10A(Max.) When PoE is in use: 12V5.55A (Max.), 24V 5.25A(Max.), 57V 2.24A(Max.) |
| Physical dimensions (mm) | 41(W)×95(D)×144(H) (exclusive of protrusions) |
| Weight | 700g |
| Module installation method | Mounting on DIN rail or on the wall |
