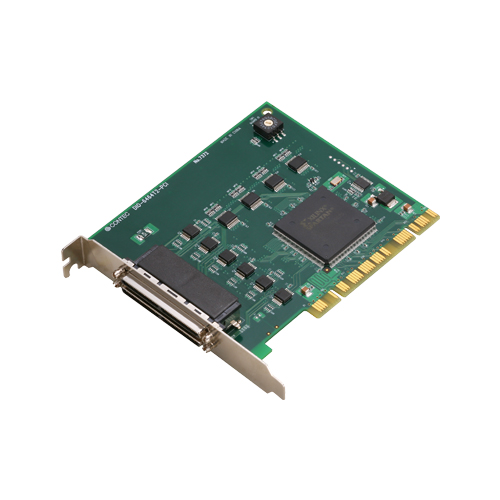

- CONTEC Digital I/O PCI Card 64ch/64ch (Non-isolated 5VDC-TTL) DIO-6464T2-PCI
Unisolated TTL level input, unisolated open-collector output. You can use 16 input signals as interrupt request signals.
This product is a PCI bus-compliant interface board used to provide a digital signal I/O function on a PC.
There are 64 unisolated TTL level inputs and 64 unisolated open-collector outputs.
You can use 16 input signals as interrupt inputs. In addition, the digital filter function to prevent wrong recognition of input signals is provided.
Digital I/O PCI Card 64ch/64ch (Non-isolated 5VDC-TTL)
Model:
DIO-6464T2-PCI
Maker:
CONTEC Co., Ltd.
Features
- Unisolated TTL level input, unisolated open-collector output
It has the unisolated TTL level inputs 64channels, and the unisolated open collector outputs 64channels whose response speed is 200nsec. Output rating : max 30VDC, 40mA per pin. - You can use 16 input signals as interrupt request signals.
You can use 16 channels of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge. - This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
This product has a digital filter to prevent input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI |
| Size | Short Size |
| Used Connector | 4x BNC |
Measurement Instrument
| Measurement Instrument | Digital multi-meter |
|---|---|
| Function | DC/AC Current measurement; DC/AC電圧測定; Resistance measurement |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit) |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specifications | |
|---|---|---|
| Input | Type | Non-isolated TTL-Level Input (Negative logic *1) |
| Number of Channels | 64ch (16 channels for interrupts) (1 common) | |
| Input resistance | Pull up 10kΩ(1TTL load) | |
| Interrupts | Combine 16 interrupt signals to one interrupt request signal as the INTA. Either rising edge or falling edge of input signal can generate interrupt. | |
| Response time | 200nsec within | |
| Output | Type | Open Collector Output(Negative logic *1) |
| Number of Channels | 64ch (1 common) | |
| Output rated voltage | 30VDC (Max.) | |
| Output rated current | 40mA/channel (Max.) | |
| Response time | 200nsec within | |
| Common | External supply capable current | 5VDC 1A (Max.) *3 |
| Connecting distance | 1.5m(Typ.) (depending on wiring environment) | |
| I/O address | Any 32-byte boundary | |
| Interruption level | 1 level use | |
| Boards in one system | Maximum of 16 boards can be install in a same system. | |
| Power consumption | 5VDC 450mA(Max.) *4 | |
| PCI bus specification | 32bit, 33MHz, Universal key shapes supported *2 | |
| Dimension (mm) | 121.69(L) x 105.68(H) | |
| Weight | 100g | |
*1 Data “0” and “1” correspond to the High and Low levels, respectively.
*2 This product requires power supply at +5V from an expansion slot (it does not work on a machine with a +3.3V power supply alone).
*3 Because it supplies the +5V power supply from an expansion slot, the external supply capable current depends on the PC.
*4 The power consumption does not include it in the external supply capable current.
