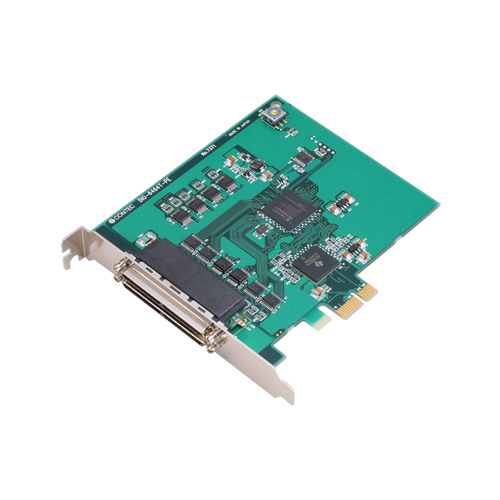

- CONTEC Digital I/O PCI Card 64ch/64ch (Non-isolated 5VDC-TTL) DIO-6464T-PE
Unisolated TTL level input, unisolated open-collector output. You can use 16 input signals as interrupt request signals.
This product is an Non-isolated interface card of PCI Express bus conformity that perfom input and output of a digital signal (TTL level). It is equipped with 64 points of Non-isolated TTL level input, Non-isolated open collector output 64 points and can use 16 input signals as interrupt. In addition, it is equipped with a digital filter function to prevent misrecognition of an input signal. It attaches a driver library for Windows/Linux as standard equipment and can make the application that is made use of a characteristic of our hardware in.
Digital I/O PCI Card 64ch/64ch (Non-isolated 5VDC-TTL)
Model:
DIO-6464T-PE
Maker:
CONTEC Co., Ltd.
Features
- Unisolated TTL level input, unisolated open-collector output
The < DIO-6464T-PE > has the 64ch of unisolated TTL level input and 64ch of unisolated open-collector output whose response speed is 200nsec.
The output rating is max. 30VDC, 40mA per ch. - You can use 16 input signals as interrupt request signals.
You can use 16 input signals as interrupt request signals and also disable or enable the interrupt in bit units and select the edge of the input signals, at which to generate an interrupt. - Windows/Linux compatible driver libraries are attached.
Using the attached driver library API-PAC(W32) makes it possible to create applications of Window/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided. - Functions and connectors are compatible with PCI compatible card DIO-6464T2-PCI
The functions same with PCI compatible card DIO-6464T2-PCI are provided.
In addition, as there is compatibility in terms of connector shape and pin assignments, it is easy to migrate from the existing system. - LabVIEW is supported by a plug-in of dedicated library VI-DAQ.
Using the dedicated library VI-DAQ makes it possible to make a LabVIEW application.
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI Express |
| Size | Short Size |
| Used Connector | 2x 0.8mm-pitch 100-pin (Female) |
Digital I/O
| Input Channels | 64-ch |
|---|---|
| Output Channels | 64-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200nsec (max.) |
| Response Time (Output) | 200nsec (max.) |
| Operating Voltage (Input) | 5VDC-TTL |
| Operating Voltage (Output) | 5VDC-TTL |
| Input Circuit | Non-isolated TTL level input (Negative logic) |
| Output Circuit | Non-isolated TTL open-collector output (Negative logic) |
| Built-in Power Supply | – |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specification | ||
|---|---|---|---|
| Input | Input format | UnisolatedTTL level input (Negative logic *1) | |
| Number of input signal channels | 64ch (16ch available for interrupts) (1 common) | ||
| Input resistance | Pull up 10kΩ(1TTL load) | ||
| Interrupt | 16 interrupt input signals are arranged into a single output of interrupt signal INTA. An interrupt is generated at the rising edge (HIGH-to-LOW transition) or falling edge (LOW-to-HIGH transition). |
||
| Response time | Within 200nsec | ||
| Output | Output format | Unisolatedopen-collector output (Negative logic *1) | |
| Number of output signal channels | 64ch (1 common) | ||
| Output rating | Output voltage | 30VDC (Max.) | |
| Output current | 40mA (par channel) (Max.) | ||
| Response time | Within 200nsec (change by pull-up resistor value) | ||
| Common | External supply capable current (Max.) | 5VDC 350mA | |
| Allowable distance of signal extension | Approx. 1.5m (depending on wiring environment) | ||
| I/O address | Any 32-byte boundary | ||
| Interruption level | 1 level use | ||
| Max. board count for connection | 16 boards including the master board | ||
| Power consumption (Max.) | 3.3VDC 900mA | ||
| Operating condition | 0 – 50°C, 10 – 90%RH (No condensation) | ||
| Bus specification | PCI Express Base Specification Rev. 1.0a x1 | ||
| Dimension (mm) | 121.69(L) x 110.18(H) | ||
| Connector | 100-pin 0.8mm pitch connector [F (female) type] x 2 HDRA-E100W1LFDT1EC-SL+ [HONDA TSUSHIN KOGYO CO., LTD.] or equivalent to it |
||
| Weight | 120g | ||
| Certification | VCCI Class A, CE Marking (EMC Directive Class A, RoHS Directive), UKCA | ||
*1 Data “0” and “1” correspond to the High and Low levels, respectively.
