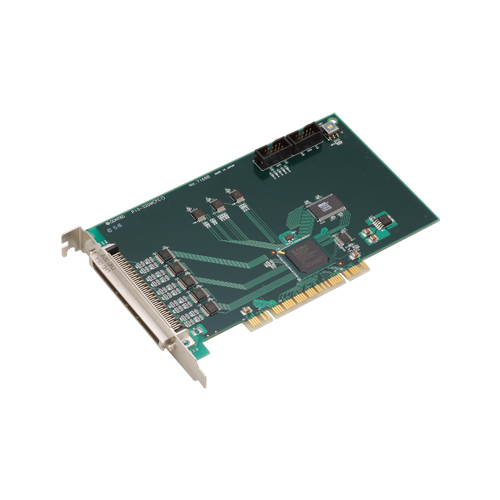

- CONTEC Digital I/O Low Profile PCI Card Bi-directional 32ch (High-speed Non-isolated 5VDC-TTL) PIO-32DM(PCI)
This board can be used to TTL-level input/output 48 points bi-directional digital corresponding to to the equivalence to the i8255 mode 0.
It is used on external equipment and the interface board of the PCI bus conformity which performs digital input and output by bus master transmission, mounting in the PCI bus expansion slot of the main part of a personal computer. The digital signal of a TTL level can use an input and 32 outputs in all. With the Windows version driver (API-PAC(W32)).
Digital I/O Low Profile PCI Card Bi-directional 32ch (High-speed Non-isolated 5VDC-TTL)
Model:
PIO-32DM(PCI)
Maker:
CONTEC Co., Ltd.
Features
- 32 input-and-output point (selection of 32 inputs, 16 input and output each, and 32 outputs is possible)
- When bus master transmission is used, continuation input and output of a series etc. are possible (a maximum of 20MHz).
- A synchronous bus connector is used and two or more boards a simultaneous input / output are possible (synchronous cable standard appending).
Compatible with the application software pattern generator and logic analyzer “C‑LogicDesigner”. - Compatible with the software “C‑LogicDesigner,” which provides digital signal generation and logic analyzer functions through signal sampling. Features an intuitive and easy‑to‑use GUI‑based logic pattern creation function.
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI |
| Size | Short Size |
| Used Connector | 1.27mm-pitch 96-pin (Male); 2x Pin header 10-pin (Male) |
Digital I/O
| Input Channels | – |
|---|---|
| Output Channels | – |
| Bi-directional I/O Channels | 32-ch |
| Response Time (Input) | 50nsec (max.) |
| Response Time (Output) | 50nsec (max.) |
| Operating Voltage (Input) | 5VDC-TTL |
| Operating Voltage (Output) | 5VDC-TTL |
| Input Circuit | Non-isolated LVTTL level input (Positive logic) |
| Output Circuit | Non-isolated TTL level output (Positive logic) |
| Built-in Power Supply | – |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
*The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Digital section | ||
| Number of I/O Channels | 32-bit input lines, 16-bit input/output lines, 32-bit output lines (programmable) | |
|---|---|---|
| I/O signal level | TTL level (Equivalent toALS245A) | |
| Data access method | General-purpose digital I/O or pattern I/O with bus mastering DMA | |
| Echo-back function | Available (at general-purpose output) | |
| Connector | Equivalent to PCR-96LMD (HONDA) | |
| Signal extension distance | 1.5m (dependent on wiring environment) | |
| Pattern input | Samplingstart trigger | Software start/External start/Pattern detection |
| Samplingstop trigger | Software stop/External stop/End of transfer/Transfer error | |
| Samplingclock | Sampling timer/External clock input/handshake/SC connector | |
| Samplingtimer | 50ns – 107s 25nsunit | |
| Pattern output | Generating start trigger | Software start/External start/SC connector |
| Generating stop trigger | Software stop/External stop/End of transfer/Transfer error/Specified number of items/SC connector |
|
| Generating clock | Output timer/External clock input/Handshake/SC connector | |
| Generating timer | 50ns – 107s 25nsunit | |
| Control signal | I/O signal level | TTL level (Input: equivalent to ALS541; Output: equivalent to LS125A) |
| REQ signal (handshake) | Negative logic tL=50ns (Min.) | |
| ACK signal (handshake) | Negative logic tL=50ns (Min.) | |
| External start signal | Selection of rising/falling edge with the software | |
| External stop signal | Selection of rising/falling edge with the software | |
| External clock input | f=10 MHz (Max.) | |
| Bus master section | ||
| DMA channels | 2 channels (one each for input and output) | |
| Transfer bus width | 32-/16-bit width | |
| Transfer data length | 8 PCI Words length (Max.) | |
| Transfer rate | 80 MB/sec. | |
| FIFO | 1K Word/ch. | |
| Scatter/Gather function | 64 MB/ch. | |
| Synchronization section | ||
| Control output signal | Selection of output signal with the software when specifying a sync master board. | |
| Control input signal | Selection of sync factor with the software when specifying sync slave boards. | |
| Max. board count for connection | 16 boards including the master board | |
| Connector | PS-10PE-D4T1-B1 (JAE) or equivalent x 2 | |
| Common section | ||
| I/O addresses | Occupies 2 locations, any 32-ports and 64-portsboundary | |
| Interrupt | Errors and various factors, One interrupt request line as INTA | |
| Current consumption | 5 VDC, 700 mA (Max.) | |
| Operating conditions | 0 – 50°C, 10 – 90%RH (No condensation) | |
| PCI bus specification | 32bit, 33MHz, Universal key shapes supported *1*2 | |
| External dimensions (mm) | 176.41(L) x 106.68(H) | |
| Weight | 130g | |
| Standard | VCCI Class A, CE Marking (EMC Directive Class A, RoHS Directive),UKCA | |
*1 This board requires power supply at +5V from an expansion slot (it does not work on a machine with a +3.3V power supply alone).
*2 When the board No. is 7166, PCI bus specification is 32bit, 33MHz, 5V.
