- CONTEC Digital I/O PCI Express Card 64ch/64ch (Isolated 12 - 24VDC) DIO-6464L-PE
Optocoupler isolated inputs (compatible with current sink output), and Optocoupler isolated open-collector outputs (current sink type). Optocoupler bus isolation
This product is a PCI Express bus-compliant interface board for input/output of digital signals. This product can input and output digital signals at 12 - 24VDC. DIO-6464L-PE features 64 opto-coupler isolated inputs (supporting current sink output) and 64 opto-coupler isolated open-collector outputs (current sink type). You can use 16 input signals as interrupt inputs. In addition, the digital filter function to prevent wrong recognition of input signals is provided and output transistor protection circuit (surge voltage protection and overcurrent protection). Windows/Linux device driver is supported with this product.

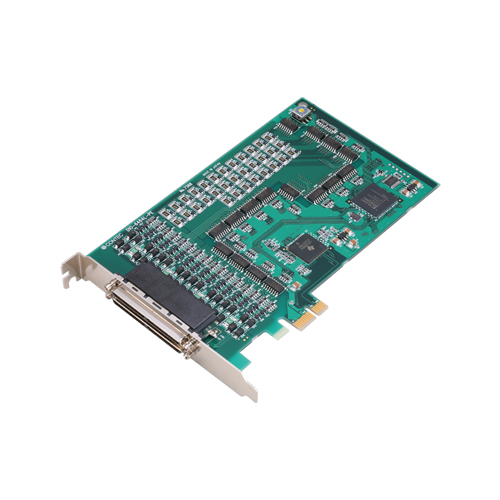

Digital I/O PCI Express Card 64ch/64ch (Isolated 12 - 24VDC)
Model:
DIO-6464L-PE
Maker:
CONTEC Co., Ltd.
Features
- Optocoupler isolated inputs (compatible with current sink output), and Optocoupler isolated open-collector outputs (current sink type)
This product has the 64 channels of Optocoupler isolated input (compatible with current sink output) and 64 channels Optocoupler isolated open-collector output (current sink type) whose response speed is 200μsec. Common terminal provided per 16 channels, capable of supporting a different external power supply. Supporting driver voltages of 12 – 24 VDC for I/O. - Optocoupler bus isolation
As the PC is isolated from the input and output interfaces by Optocoupler, this product has excellent noise performance. - You can use 16 input signals as interrupt request signals.
You can use 16 input signals as interrupt request signals. You can use 16 input signals as interrupt request signals and also disable or enable the interrupt in bit units and select the edge of the input signals, at which to generate an interrupt. - Windows/Linux support device driver
Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided. - This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software. - Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection.
Zener diodes are connected to the output circuits to protect against surge voltages. Similarly, poly switches are fitted to each group of 8 channels outputs for over-current protection. Output rating : max 35VDC, 100mA per pin.
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI Express |
| Size | Short Size |
| Used Connector | 2x 0.8mm-pitch 100-pin (Female) |
Digital I/O
| Input Channels | 64-ch |
|---|---|
| Output Channels | 64-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200μsec (max.) |
| Response Time (Output) | 200μsec (max.) |
| Operating Voltage (Input) | 12 to 24VDC |
| Operating Voltage (Output) | 12 to 24VDC |
| Input Circuit | Opto-isolated input (for sink current output) |
| Output Circuit | Opto-isolated open-collector output (current sink type) |
| Built-in Power Supply | – |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specifications | |
|---|---|---|
| Input | Type | Opto-Isolated Input(for current sinking output) (Negative logic *1) |
| Number of Channels | 64ch (16 channels available for interrupts) (One common power supply per 16 channels) | |
| Input resistance | 4.7kΩ | |
| Current required to turn ON | 2.0mA or more | |
| Current required to turn OFF | 0.16mA or less | |
| Interrupts | Combine 16 interrupt signals to one interrupt request signal as the INTA. Either rising edge or falling edge of input signal can generate interrupt. | |
| Response time | 200µsec within | |
| Output | Type | Opto-Isolated Open Collector Output (current sinking type) (Negative logic *1) |
| Number of Channels | 64ch(One common power supply per 16 channels) | |
| Output rated voltage | 35VDC(Max.) | |
| Output rated current | 100mA/channel (Max.) | |
| Residual voltage with output on | 0.5V or less (Output current ≤50mA), 1.0V or less (Output current ≤100mA) |
|
| Surge protector | Zener diode RD47FM(Renesas) or equivalent | |
| Response time | 200µsec within | |
| Common | Connecting distance | 50m(Typ.)(depending on wiring environment) |
| I/O address | Any 32-byte boundary | |
| Interruption level | 1 level use | |
| Boards in one system | Maximum of 16 boards can be install in a same system. | |
| Isolated voltage | 250Vrms | |
| External circuit power supply | 12 – 24VDC(±10%) | |
| Power consumption | 3.3VDC 600mA(Max.) | |
| Bus specification | PCI Express Base Specification Rev. 1.0a x1 | |
| Dimension (mm) | 169.33(L) x 110.18(H) | |
| Weight | 215g | |
*1 Data “0” and “1” correspond to the High and Low levels, respectively.
