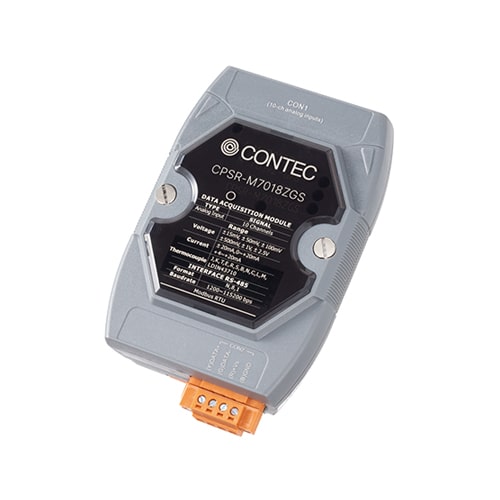

- CONTEC Modbus-RTU RS-485 Remote I/O Thermocouple Input 16bit 10ch - CONPROSYS Robust I/O Series CPSR-M7018ZGS
RS-485 based Robust remote I/O module for Modbus-RTU protocol : 10ch 16bit Thermocouple Input. Over-voltage Protection
The CONPROSYS Robust I/O series is a standalone remote I/O module that supports the Modbus communication protocol. It is designed to be environmentally resistant, with excellent noise resistance and overvoltage and overcurrent protection circuits, and can be used in industrial applications such as monitoring factory equipment and production lines and process control.
Modbus-RTU RS-485 Remote I/O Thermocouple Input 16bit 10ch - CONPROSYS Robust I/O series
Model:
CPSR-M7018ZGS
Maker:
CONTEC Co., Ltd.
Features
- RS-485 based Robust remote I/O module for Modbus-RTU protocol : 10ch 16bit Thermocouple Input
RS-485 (Modbus-RTU) based remote I/O with 10ch 16bit Thermocouple Input. Communication control system of up to 1.2 km can be constructed using low-cost twist-pair cable. - Over-voltage Protection
Analog input channels feature high overvoltage protection, preventing the module from being damaged by high voltage spikes or incorrect wiring. - Designed for a wide operating temperature range of -25 to 75°C (-13 to 167°F)
Designed to withstand a wide operating temperature range of -25 to 75°C (during operation) (-13 to 167°F). Robust design that can be used in outdoor environments with large temperature changes. - Dual watchdog function monitors module and communication failures
Dual watchdog function monitors module and communication failures. If the module detects an operational fault, it will automatically reset. - Robust ESD/EFT and surge resistance
Passes IEC 61000-4-5 surge testing, IEC 61000-4-2 ESD testing, and IEC 61000-4-4 EFT testing. Robust design resists noise, spikes, and high-voltage electrostatic discharges.
Specifications
Add-on Module
| Series | CONPROSYS Robust I/O |
|---|---|
| Bus Specification | RS-485 (Modbus-RTU) |
| Size | – |
| Used Connector | – |
Sensor Input
| Type | Thermocouple |
|---|---|
| Input Channels | Differential 10-ch |
| Compatible Sensor | Type B; Type C; Type E; Type J; Type K; Type L; Type M; Type N; Type R; Type S; Type T; Type LDIN43710 |
| ADC Resolution | 16-bit |
| Sampling Rate | 100msec (10Hz) |
Digital I/O
| Input Channels | – |
|---|---|
| Output Channels | – |
| Bi-directional I/O Channels | – |
| Response Time (Input) | – |
| Response Time (Output) | – |
| Operating Voltage (Input) | – |
| Operating Voltage (Output) | – |
| Input Circuit | – |
| Output Circuit | – |
| Built-in Power Supply | – |
Counter
| Number of Channels | – |
|---|---|
| Counting System | – |
| Response speed | – |
Supported OS
| Supported OS | – |
|---|
System specifications
| Model | Description | |
|---|---|---|
| CPU Module | Watchdog Timer | Module, Communication (Programmable) |
| Isolation | Intra-module Isolation | 3000 VDC |
| EMS Protection | EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal | |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line | |
| LED Indicators | Status | 1 x Power and Communication |
| COM Ports | Ports | 1 x RS-485 |
| Baud Rate | 1200 – 115200 bps | |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1) | |
| Protocol | Modbus RTU, | |
| Power | Reverse Polarity Protection | Yes |
| Input Range | +10 -+30 VDC | |
| Consumption | 1.0 W | |
| Mechanical | Dimensions (mm) | CPSR-M7018ZGS: 73(W)x 116(L)x 34(H) CPSR-DB1820: 65(W)x 78(L)x 22(H) |
| Installation | DIN-Rail Mounting | |
| Environment | Operating Temperature | -25 -+75 °C |
| Storage Temperature | -40 -+85°C | |
| Humidity | 10 -95% RH, Non-condensing | |
| Standard | VCCI Class A, FCC Class A, CE Marking (EMC Directive Class A, RoHS Directive), UKCA |
