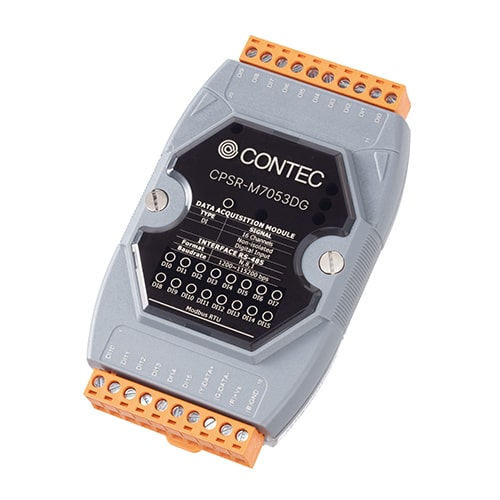

- CONTEC Modbus-RTU RS-485 Remote I/O Digital Input (Counter) 16ch - CONPROSYS Robust I/O Series CPSR-M7053DG
RS-485 based Robust remote I/O module for Modbus-RTU protocol : 16ch Digital Input (Counter). Designed for a wide operating temperature range of -25 to 75°C (-13 to 167°F)
The CONPROSYS Robust I/O series is a standalone remote I/O module that supports the Modbus communication protocol. It is designed to be environmentally resistant, with excellent noise resistance and overvoltage and overcurrent protection circuits, and can be used in industrial applications such as monitoring factory equipment and production lines and process control.
Modbus-RTU RS-485 Remote I/O Digital Input (Counter) 16ch - CONPROSYS Robust I/O Series
Model:
CPSR-M7053DG
Maker:
CONTEC Co., Ltd.
Features
- RS-485 based Robust remote I/O module for Modbus-RTU protocol : 16ch Digital Input (Counter)
RS-485 (Modbus-RTU) based remote I/O with 16ch Digital Input (Counter). Communication control system of up to 1.2 km can be constructed using low-cost twist-pair cable. - Designed for a wide operating temperature range of -25 to 75°C (-13 to 167°F)
Designed to withstand a wide operating temperature range of -25 to 75°C (during operation) (-13 to 167°F). Robust design that can be used in outdoor environments with large temperature changes. - Dual watchdog function monitors module and communication failures
Dual watchdog function monitors module and communication failures. If the module detects an operational fault, it will automatically reset.
Specifications
Add-on Module
| Series | CONPROSYS Robust I/O |
|---|---|
| Bus Specification | RS-485 (Modbus-RTU) |
| Size | – |
| Used Connector | – |
Digital I/O
| Input Channels | 16-ch (possible to allocate counter) |
|---|---|
| Output Channels | – |
| Bi-directional I/O Channels | – |
| Response Time (Input) | – |
| Response Time (Output) | – |
| Operating Voltage (Input) | 10 to 50VDC |
| Operating Voltage (Output) | – |
| Input Circuit | Opto-isolated input (for Dry contact) |
| Output Circuit | – |
| Built-in Power Supply | – |
Supported OS
| Supported OS | – |
|---|
System specifications
| Item | Description | |
|---|---|---|
| Software | Built-in Web Server | Yes |
| CPU Module | Watchdog Timer | Module, Communication (Programmable) |
| 2-Way Isolation | Ethernet | 1500 VDC |
| I/O | 2500 VDC | |
| EMS Protection | EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
|
| LED Indicators | Status | Run, Ethernet |
| Ethernet | Ports | 1 x RJ-45, 10/100 BASE-TX |
| Access Control | ID, Password and IP Filter | |
| Protocol | Modbus TCP, Modbus UDP | |
| Power | Reverse Polarity Protection | Yes |
| Consumption | 2.7W (Max.) | |
| Powered from Terminal Block | +10to +30VDC | |
| Mechanical | Dimensions (mm) | 72(W)x 123(L)x 35(H) |
| Installation | DIN-Rail mounting | |
| Environment | Operating Temperature | -25 -+75 °C |
| Storage Temperature | -30 -+80 °C | |
| Humidity | 10 -90% RH, Non-condensing | |
| Standard | VCCIClass A, FCC Class A, CE Marking (EMC Directive Class A, RoHS Directive), UKCA |
