- CONTEC Modbus-RTU RS-485 Remote I/O Power Relay Output 4ch / 4ch Digital Input (Counter) - CONPROSYS Robust I/O Series CPSR-M7060PDG
Edge AI accelerator equipped with NVIDIA® Jetson Xavier™ NX. Long-term supply and maintenance
The CONPROSYS Robust I/O series is a standalone remote I/O module that supports the Modbus communication protocol. It is designed to be environmentally resistant, with excellent noise resistance and overvoltage and overcurrent protection circuits, and can be used in industrial applications such as monitoring factory equipment and production lines and process control.

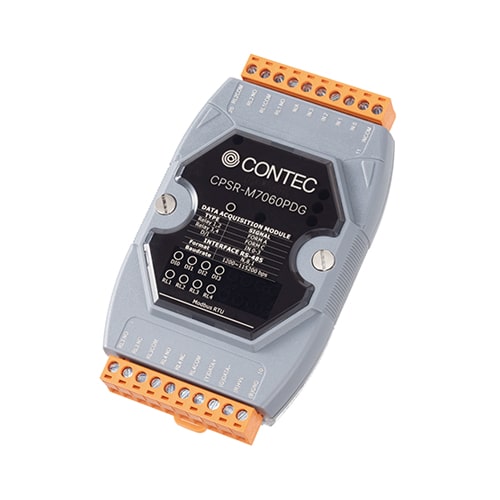

Modbus-RTU RS-485 Remote I/O Power Relay Output 4ch / 4ch Digital Input (Counter) - CONPROSYS Robust I/O Series
Model:
CPSR-M7060PDG
Maker:
CONTEC Co., Ltd.
Features
- RS-485 based Robust remote I/O module for Modbus-RTU protocol : 4ch Power Relay Output / 4ch Digital Input
RS-485 (Modbus-RTU) based remote I/O with 4ch Power Relay Output / 4ch Digital Input. Communication control system of up to 1.2 km can be constructed using low-cost twist-pair cable. - Over-voltage Protection
Digital input channels feature high overvoltage protection, preventing the module from being damaged by high voltage spikes or incorrect wiring. - Dual watchdog function monitors module and communication failures
Dual watchdog function monitors module and communication failures. If an operational failure of the module is detected, it will automatically reset and return the signal output to the set value. If the communication command from the host is interrupted, the signal output will also return to the set value. This prevents damage and abnormal operation of the sensors/actuators connected to the module. - Robust ESD/EFT and surge resistance
Passes IEC 61000-4-5 surge testing, IEC 61000-4-2 ESD testing, and IEC 61000-4-4 EFT testing. Robust design resists noise, spikes, and high-voltage electrostatic discharges.
Specifications
Add-on Module
| Series | CONPROSYS Robust I/O |
|---|---|
| Bus Specification | RS-485 (Modbus-RTU) |
| Size | – |
| Used Connector | – |
Digital I/O
| Input Channels | 6-ch (possible to allocate counter) |
|---|---|
| Output Channels | 4-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | – |
| Response Time (Output) | – |
| Operating Voltage (Input) | 10 to 50VDC |
| Operating Voltage (Output) | to 250VAC (type-C contact); to 250VAC / to 30VDC (type-A contact) |
| Input Circuit | Opto-isolated input (for both current sink and source output) |
| Output Circuit | Power relay output (type-C contact); Power relay output (type-A contact) |
| Built-in Power Supply | – |
Supported OS
| Supported OS | – |
|---|
System specifications
| Model | Description | |
|---|---|---|
| CPU Module | Watchdog Timer | Module, Communication (Programmable) |
| Display | Type | I/O LED Indicator |
| Isolation | Intra-module Isolation | 3750VDC |
| EMS Protection | EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
|
| Surge (IEC 61000-4-5) | ±3 kV for Power Line | |
| LED Indicators | Status | 1 x Power and Communication 8 x Relay Output |
| COM Ports | Ports | 1 x RS-485 |
| Baud Rate | 1200 – 115200 bps | |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1) | |
| Protocol | Modbus RTU | |
| Power | Reverse Polarity Protection | Yes |
| Input Range | +10 -+30 VDC | |
| Consumption | 1.8 W | |
| Mechanical | Dimensions (mm) | 72(W) x 122(L) x 34 (H) |
| Installation | DIN-Rail Mounting | |
| Environment | Operating Temperature | -25 -+75 °C |
| Storage Temperature | -40 -+85°C | |
| Humidity | 10 -95% RH, Non-condensing | |
| Standard | VCCI Class A, FCC Class A,CE Marking (EMC Directive Class A, RoHS Directive), UKCA |
