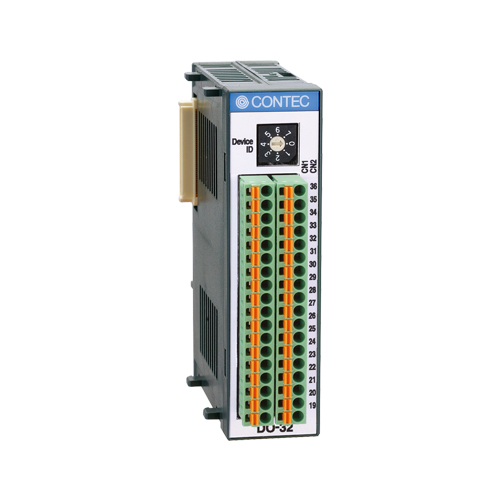

Digital Output F&eIT I/O module 32ch (Isolated 12 - 48VDC)
This product is an expansion module (device module) that adds digital signal I/O interfaces to one of various types of controllers. The product is used in combination with the I/O controller module < CPU-CAxx(FIT)GY > (*1) or BOX-PC < BX-300-DC5xxx > (*1) or microcontroller unit < CPU-SBxx(FIT)GY > (*1) in the F&eIT Series.This product can perform a maximum of 32 points of opto-isolated output per module. (Output: 12 - 48 VDC specified)
This module is available in different product models. "x" in each model number represents a blank or one alphanumeric character. This is applicable to the rest of this document
Different external power supplies can be used for each common pin as it is shared by 16 channels. DO-32(FIT)GY has 32 digital output channels.
The output section is a high sink current, open collector type using high-capacitance transistors. 150 mA/24 VDC or 50 mA/48 VDC max. (per channel).
Isolated I/O operations using an opto-coupler improves noise immunity.
A rotary switch allows you to set device IDs to help you keep track of device numbers.
Like other F&eIT series products, the module has a 35mm DIN rail mounting mechanism as standard. A connection to a controller module can be effected on a lateral, stack basis in a unique configuration, which permits a simple, smart system configuration without the need for a backplane board.
Digital Output F&eIT I/O Module 32ch (Isolated 12 - 48VDC)
Model:
DO-32(FIT)GY
Maker:
CONTEC Co., Ltd.
Features
- Opto-coupler isolated open-collector output (current sink type)
DO-32B-PE has the opto-coupler isolated open-collector output 16channels (current sink type) whose response speed is 200?sec. Common terminal provided per 16channels, capable of supporting a different external power supply. Supporting driver voltages of 12 – 24 VDC for I/O - Opto-coupler bus isolation
As the PC is isolated from the input and output interfaces by opto-couplers, this product has excellent noise performance. - Power for opto-coupler operation (12VDC 240mA) supplied internally
As the power(12VDC 240mA) to run the opto-couplers is supplied internally, no external power supply is required. The use of jumpers allows you to decide whether you want to use the internal or external power supply for every 16 points. - Windows/Linux support device driver
Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided. - Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection.
Zener diodes are connected to the output circuits to protect against surge voltages. Similarly, polyswitches are fitted to each group of 8channels outputs for over-current protection. The output rating is max. 35VDC, 100mA per channel.
Specifications
Add-on Module
| Series | F&eIT |
|---|---|
| Bus Specification | F&eIT stack bus |
| Size | F&eIT 1U |
| Used Connector | – |
Digital I/O
| Input Channels | – |
|---|---|
| Output Channels | 32-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | – |
| Response Time (Output) | 1msec (max.) |
| Operating Voltage (Input) | – |
| Operating Voltage (Output) | 12 to 48VDC |
| Input Circuit | – |
| Output Circuit | Opto-isolated open-collector output (current sink type) |
| Built-in Power Supply | – |
Supported OS
| Supported OS | – |
|---|
* The supported OS depends on connected controllers (CPU-CA20, BX-320 etc.).
System specifications
| Item | Specifications | ||
|---|---|---|---|
| Output section | Output format | Opto-isolated open collector output (current sink type) | |
| Ratings | Output voltage | 12 – 48 VDC (±15%) | |
| Output current | 150 mA (12 – 24V) (per channel) (Max.) 50 mA (36 – 48V) (per channel) (Max.) |
||
| Number of output signal points | 32 points (16 points/common) | ||
| Response time | Within 1msec | ||
| Common section | External circuit power supply | 12 – 48 VDC (±15%) | |
| Internal current consumption | 5 VDC(±5%) 150 mA(Max.) *1 | ||
| Allowable distance of signal extension | Approx. 50m (depending on wiring environment) | ||
| Physical dimensions (mm) | 25.2(W) x 64.7(D) x 94.0(H) (exclusive of protrusions) | ||
| Weight of the module itself | 100g | ||
| Module connection method | Stack connection by means of a connection mechanism standard with the system | ||
| Module installation method | One-touch connection to 35mm DIN rails (standard connection mechanism provided in the system) | ||
| Appliable wire | AWG28 – 16 | ||
| Applicable plug | FMC 1,5/18-ST-3,5(made by Phoenix Contact Corp.) | ||
*1 The stack connector accepts currents of up to 3.0A (Max.).
