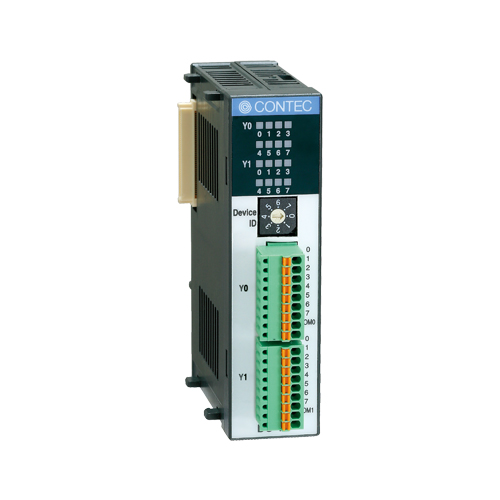

Digital Output F&eIT I/O Module 16ch (Isolated 12 - 48VDC)
The Module perform to output digital signals to external devices, can be used by connecting it to F&eIT series controller modules . DO-16(FIT)GY can be connected to DO-16(USB)GY, respectively, to extend I/O channels. Opto-isolation prevent electrical influence from external devices to the host PC. DO-16(FIT)GY has 16 output channels per module.
DO-16(FIT)GY has 16 channel digital signal output, treating 8 channel as a group and handling two groups per operation.
Isolated I/O operations using an opto-coupler improves noise immunity.
A rotary switch allows you to set device IDs to help you keep track of device numbers.
Screwless connector plug allows you to easily attach and detach wires without using any special tools.
Like other F&eIT series products, the module has a 35mm DIN rail mounting mechanism as standard. A connection to a controller module can be effected on a lateral, stack basis in a unique configuration, which permits a simple, smart system configuration without the need for a backplane board.
Digital Output F&eIT I/O Module 16ch (Isolated 12 - 48VDC)
Model:
DO-16(FIT)GY
Maker:
CONTEC Co., Ltd.
Specifications
Add-on Module
| Series | F&eIT |
|---|---|
| Bus Specification | F&eIT stack bus |
| Size | F&eIT 1U |
| Used Connector | – |
Digital I/O
| Input Channels | – |
|---|---|
| Output Channels | 16-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | – |
| Response Time (Output) | 1msec (max.) |
| Operating Voltage (Input) | – |
| Operating Voltage (Output) | 12 to 48VDC |
| Input Circuit | – |
| Output Circuit | Opto-isolated open-collector output (current sink type) |
| Built-in Power Supply | – |
Supported OS
| Supported OS | – |
|---|
* The supported OS depends on connected controllers (CPU-CA20, BX-320 etc.).
System specifications
| Item | Specifications | ||
|---|---|---|---|
| Output section | Output format | Opto-isolated open collector output (current sinking type) | |
| Output rating | Output voltage | 12 – 48VDC (±15%) | |
| Output current | 12 – 24V: 150mA (Max. )(par channel) , 36 – 48V: 50mA(Max. )(par channel) |
||
| Number of output signal points | 16 points (8 points/common) | ||
| Response time | 1msec (Max. ) | ||
| Common section | External circuit power supply | 12 – 48VDC (±15%) | |
| Internal current consumption | 5VDC (±5%) 150mA (Max.) *1 | ||
| Allowable distance of signal extension | Approx. 50m (depending on wiring environment) | ||
| Physical dimensions (mm) | 25.2(W) x 64.7(D) x 94.0(H) (exclusive of protrusions) | ||
| Weight of the module itself | 100g | ||
| Module connection method | Stack connection by means of a connection mechanism that is provided in the system as a standard item | ||
| Module installation method | One-touch connection to 35mm DIN rails (standard connection mechanism provided in the system) | ||
| Applicable wire | AWG 28 – 20 | ||
| Applicable plug | FK-MC0,5/9-ST-2,5 (made by Phoenix Contact Corp.) 2.5 mm-pitch, nominal current: 4A (Max.) | ||
*1 Allowable current for the stack connector: 3.0A (Max.).
