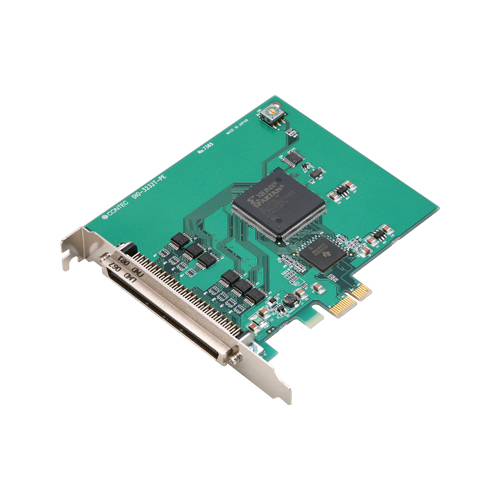

- CONTEC Digital I/O PCI Express Card 32ch/32ch (Non-isolated 5VDC-TTL) DIO-3232T-PE
Unisolated TTL level input, unisolated open-collector output. You can use 32 input signals as interrupt request signals.
This product is a PCI Express bus-compliant unisolated digital I/O card for input/output of digital signals (TTL level). Unisolated TTL level input 32ch and unisolated open collector output 32ch are provided, and all input signals can be used as interrupts. In addition, digital filter function to prevent wrong recognition of input signals is provided. With the driver libraries for Windows/Linux supplied as standard, applications with CONTEC hardware features fully utilized can be created. LabVIEW is supported with a plug-in of dedicated libraries.
Digital I/O PCI Express Card 32ch/32ch (Non-isolated 5VDC-TTL)
Model:
DIO-3232T-PE
Maker:
CONTEC Co., Ltd.
Features
- Unisolated TTL level input, unisolated open-collector output
32ch of unisolated TTL level input and 32ch of unisolated open-collector output with a response time of 200nsec. Output rating: max 30VDC, 40mA per pin. - You can use 32 input signals as interrupt request signals.
You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge. - This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
This product has a digital filter to prevent input signals from carrying noise or a chattering. All input channels can be added a digital filter, and the setting can be performed by software. - Windows/Linux compatible driver libraries are attached
Bundled driver library API-PAC(W32) enables to create Window/Linux applications. In addition, a diagnostic program by which the operations of hardware can be checked is provided. - Functions and connectors are compatible with PCI compatible card PIO-32/32T(PCI)H
The functions are same with PCI compatible card PIO-32/32T(PCI)H. In addition, as there is compatibility in terms of connector shape and pin assignments, it is easy to migrate from the existing system.
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI Express |
| Size | Short Size |
| Used Connector | 1.27mm-pitch 96-pin (Male) |
Digital I/O
| Input Channels | 32-ch |
|---|---|
| Output Channels | 32-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200nsec (max.) |
| Response Time (Output) | 200nsec (max.) |
| Operating Voltage (Input) | 5VDC-TTL |
| Operating Voltage (Output) | 5VDC-TTL |
| Input Circuit | Non-isolated TTL level input (Negative logic) |
| Output Circuit | Non-isolated TTL open-collector output (Negative logic) |
| Built-in Power Supply | – |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specifications | |
|---|---|---|
| Input | Type | Non-isolated TTL-Level Input (Negative logic *1) |
| Number of Channels | 32 channels (all available for interrupts) (1 common) | |
| Input resistance | 10kΩ | |
| Interrupts | Combine 32interrupt signals to one interrupt request signal as the INTA. Either rising edge or falling edge of input signal can generate interrupt. | |
| Response time | 200nsec within | |
| Output | Type | Non-isolated Open Collector Output (Negative logic *1) |
| Number of Channels | 32ch (1common) | |
| Output rated voltage | 30VDC (Max.) | |
| Output rated current | 40mA(per channel) (Max.) | |
| Response time | 200nsec within (Variable with pull-up resistance) | |
| Common | External supply capable current | 5VDC 350mA(Max.) |
| Connecting distance | 1.5m(Typ.)(depending on wiring environment) | |
| I/O address | Any 32-byte boundary | |
| Interruption level | 1 level use | |
| Boards in one system | Maximum of 16 boards can be install in a same system. | |
| Power consumption | 3.3VDC 350mA (Max.) | |
| Bus specification | PCI Express Base Specification Rev. 1.0a x1 | |
| Dimension (mm) | 121.69(L)×110.18(H) | |
| Weight | 100g |
*1 Data “0” and “1” correspond to the High and Low levels, respectively.
