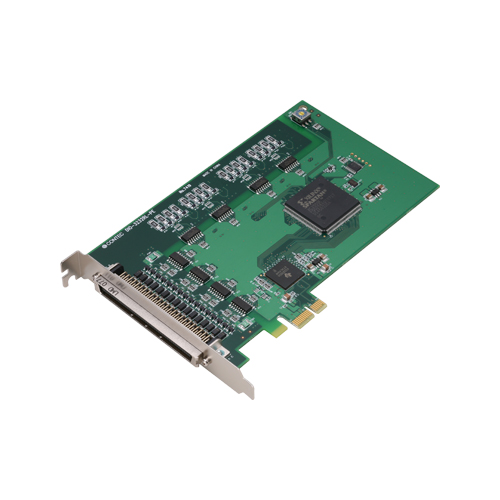

- CONTEC Digital I/O PCI Express Card 32ch/32ch (Negative-common Isolated 12 - 24VDC) DIO-3232RL-PE
Opto-coupler isolated input (compatible with current source output signals) and opto-coupler isolated output (current source type). Opto-coupler bus isolation
This product is a PCI Express bus-compliant interface board for input/output of digital signals. This product is a negative-common type isolated digital input/output board and supports input/output of 12 - 24VDC digital signals. DIO-3232RL-PE features 32 opto-coupler isolated inputs (compatible with current source output signals) and 32 opto-coupler isolated outputs (current source type). You can use all input signals as interrupt inputs. In addition, the digital filter function to prevent wrong recognition of input signals is provided and output transistor protection circuit (surge voltage protection and overcurrent protection). Windows/Linux device driver is supported with this product.
Digital I/O PCI Express Card 32ch/32ch (Negative-common Isolated 12 - 24VDC)
Model:
DIO-3232RL-PE
Maker:
CONTEC Co., Ltd.
Features
- Opto-coupler isolated input (compatible with current source output signals) and opto-coupler isolated output (current source type)
It has the opto-coupler isolated input 32channels (compatible with current source output signals) whose response speed is 200µsec and opto-coupler isolated output 32channels (current source type). Common terminal provided per 16channels, capable of supporting a different external power supply. Supporting driver voltages of 12 – 24 VDC for I/O - Opto-coupler bus isolation
As the PC is isolated from the input and output interfaces by opto-couplers, this product has excellent noise performance. - Opto-coupler bus isolation
You can use all of the input signals as interrupt request signals and also disable or enable the interrupt in bit units and select the edge of the input signals, at which to generate an interrupt. - Windows/Linux support device driver
Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided. - This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI Express |
| Size | Short Size |
| Used Connector | 1.27mm-pitch 96-pin (Male) |
Digital I/O
| Input Channels | 32-ch |
|---|---|
| Output Channels | 32-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200μsec (max.) |
| Response Time (Output) | 200μsec (max.) |
| Operating Voltage (Input) | 12 to 24VDC |
| Operating Voltage (Output) | 12 to 24VDC |
| Input Circuit | Opto-isolated input (for source current output) |
| Output Circuit | Opto-isolated output (source current type) |
| Built-in Power Supply | – |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specifications | |
|---|---|---|
| Input | Type | Opto-Isolated Input(Compatible with current source output) (Positive logic *1) |
| Number of Channels | 32ch(all available for interrupts) (One common power supply per 16 channels) | |
| Input resistance | 4.7kΩ | |
| Current required to turn ON | 2.0mAor more | |
| Current required to turn OFF | 0.16mA or less | |
| Interrupts | Combine 32 interrupt signals to one interrupt request signal as the INTA. Either rising edge or falling edge of input signal can generate interrupt. | |
| Response time | 200µsec within | |
| Output | Type | Opto-Isolated Output (Current source type) (Positive logic *1) |
| Number of Channels | 32ch(One common power supply per 16 channels) | |
| Output rated voltage | 12 – 24VDC(±10%) | |
| Output rated current | 100mA/channel (Max.) | |
| Maximum voltage drop at ON | 1.5V or less | |
| Surge protector | Zener diode RD47FM(Renesas) or equivalent | |
| Response time | 200µsec within | |
| Common | Connecting distance | 50m(Typ.)(depending on wiring environment) |
| I/O address | Any 32-byte boundary | |
| Interruption level | 1 level use | |
| Boards in one system | Maximum of 16 boards can be install in a same system. | |
| Isolated voltage | 1000Vrms | |
| External circuit power supply | 12 – 24VDC(±10%) | |
| Power consumption | 3.3VDC 400mA(Max.) | |
| Bus specification | PCI Express Base Specification Rev. 1.0a x1 | |
| Dimension (mm) | 169.33(L) x 110.18(H) | |
| Weight | 130g | |
*1 Data “0” and “1” correspond to the High and Low levels, respectively.
