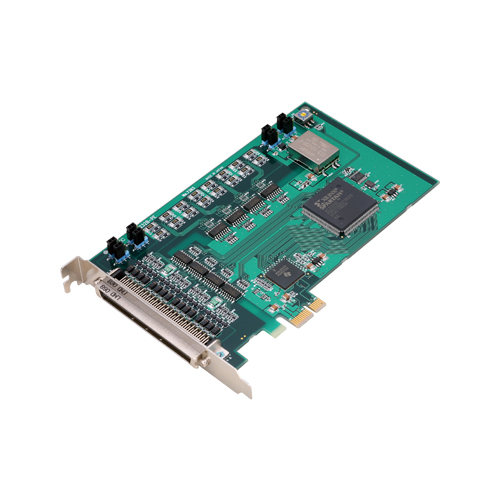

- CONTEC Digital I/O PCI Express Card 32ch/32ch (12VDC On-board Power Supply Isolated 12 - 24VDC) DIO-3232B-PE
Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type). Opto-coupler bus isolation
This product is a PCI Express bus-compliant interface board for input/output of digital signals. This product can input and output digital signals at 12 - 24VDC. This product features 32 opto-coupler isolated inputs (supporting current sink output) and 32 opto-coupler isolated open-collector outputs (current sink type). You can use all of input signals as interrupt inputs. In addition, this product is equipped with a power supply for driving optocouplers (12 VDC), the digital filter function to prevent wrong recognition of input signals is provided and output transistor protection circuit (surge voltage protection and overcurrent protection). Windows/Linux device driver is supported with this product.
Digital I/O PCI Express Card 32ch/32ch (12VDC On-board Power Supply Isolated 12 - 24VDC)
Model:
DIO-3232B-PE
Maker:
CONTEC Co., Ltd.
Features
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI Express |
| Size | Short Size |
| Used Connector | 1.27mm-pitch 96-pin (Male) |
Digital I/O
| Input Channels | 32-ch |
|---|---|
| Output Channels | 32-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200μsec (max.) |
| Response Time (Output) | 200μsec (max.) |
| Operating Voltage (Input) | 12 to 24VDC |
| Operating Voltage (Output) | 12 to 24VDC |
| Input Circuit | Opto-isolated input (for sink current output) |
| Output Circuit | Opto-isolated open-collector output (current sink type) |
| Built-in Power Supply | 12VDC |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specifications | |
|---|---|---|
| Input | Type | Opto-Isolated Input (for current sinking output) (Negative logic *1) |
| Number of Channels | 32ch (all available for interrupts) (One common power supply per 16 channels) | |
| Input resistance | 4.7kΩ | |
| Current required to turn ON | 2.0mA or more | |
| Current required to turn OFF | 0.16mA or less | |
| Interrupts | Combine 32 interrupt signals to one interrupt request signal as the INTA. Either rising edge or falling edge of input signal can generate interrupt. | |
| Response time | 200µsec within | |
| Output | Type | Opto-Isolated Open Collector Output (current sinking type) (Negative logic *1) |
| Number of Channels | 32ch (One common power supply per 16 channels) | |
| Output rated voltage | 35VDC (Max.) | |
| Output rated current | 100mA/channel (Max.) | |
| Residual voltage with output on | 0.5V or less (Output current ≤50mA), 1.0V or less (Output current ≤100mA) | |
| Surge protector | Zener diode RD47FM(Renesas) or equivalent | |
| Response time | 200µsec within | |
| Common | Internal power | 12VDC 240mA *2 |
| Connecting distance | 50m(Typ.)(depending on wiring environment) | |
| I/O address | Any 32-byte boundary | |
| Interruption level | 1 level use | |
| Boards in one system | Maximum of 16 boards can be install in a same system. | |
| Isolated voltage | 500Vrms | |
| External circuit power supply | 12 – 24VDC(±10%) | |
| Power consumption | When using the internal power supply : 3.3VDC 500mA (Max.), 12VDC 350mA (Max.) When using the external power supply : 3.3VDC 500mA (Max.) |
|
| Bus specification | PCI Express Base Specification Rev. 1.0a x1 | |
| Dimension (mm) | 169.33(L) x 110.18(H) | |
| Weight | 160g | |
*1 Data “0” and “1” correspond to the High and Low levels, respectively.
*2 When using the internal power supply, the input section consumes up to 80mA and the SW section of output channel consumes up to 60mA, so the output current that can be supplied to the external device is 100mA.
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI Express |
| Size | Short Size |
| Used Connector | 1.27mm-pitch 96-pin (Male) |
Digital I/O
| Input Channels | 32-ch |
|---|---|
| Output Channels | 32-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 5μsec (max.) |
| Response Time (Output) | 5μsec (max.) |
| Operating Voltage (Input) | 12 to 24VDC |
| Operating Voltage (Output) | 12 to 24VDC |
| Input Circuit | Opto-isolated input (for sink current output) |
| Output Circuit | Opto-isolated open-collector output (current sink type) |
| Built-in Power Supply | – |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specifications | |
|---|---|---|
| Input | Input format | Opto-coupler isolated input (Compatible with current sink output) (Negative logic *1) |
| Number of input signal channels | 32ch (all available for interrupts) (1 common in 16ch) | |
| Input resistance | 2.2kΩ | |
| Input ON current | 4.9mA or more | |
| Input OFF current | 0.66mA or less | |
| Interrupt | 32 interrupt input signals are arranged into a single output of interrupt signal INTA. An interrupt is generated at the rising edge (HIGH-to-LOW transition) or falling edge (LOW-to-HIGH transition). | |
| Response time | Within 5µsec | |
| Output | Output format | Opto-coupler isolated open collector output (current sink type) (Negative logic *1) |
| Number of output signal channels | 32ch (1 common per 16ch) | |
| Output voltage | 35VDC (Max.) | |
| Output current | 50mA (par channel) (Max.) | |
| Surge protector | Zener diode RD47FM(NEC) or equivalent to it | |
| Response time | Within 5µsec | |
| Common | Built-in power | None |
| Allowable distance of signal extension | Approx. 50m (depending on wiring environment) | |
| I/O address | Any 32-byte boundary | |
| Interruption level | 1 level use | |
| Max. board count for connection | 16 boards including the master board | |
| Isolated Power | 500Vrms | |
| External circuit power supply | 12 – 24VDC(±10%) | |
| Power consumption (Max.) | 3.3VDC 550mA | |
| Bus specification | PCI Express Base Specification Rev. 1.0a x1 | |
| Dimension (mm) | 169.33(L) x 110.18(H) | |
| Connector | 96 pin half pitch connector [M(male) type] PCR-E96LMD+[HONDA TSUSHIN KOGYO CO., LTD.] equivalent to it |
|
| Weight | 160g | |
*1 Data “0”and “1”correspond to the High and Low levels, respectively.
