- CONTEC Digital Output PCI Card 32ch (12VDC On-board Power Supply Isolated 12 - 24VDC) PO-32B(PCI)H
Opto-coupler isolated open-collector output (current sink type). Opto-coupler bus isolation

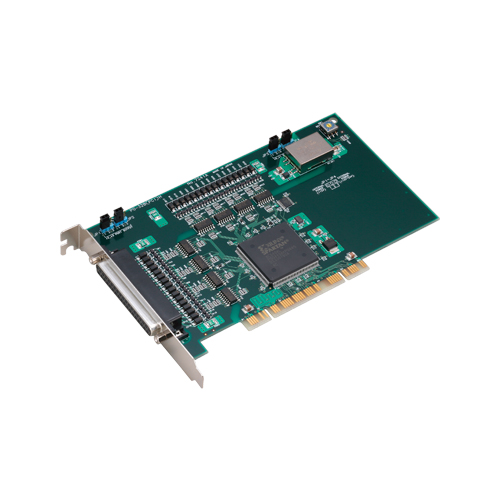

This product is a PCI bus-compliant interface board for output of digital signals. This product can output digital signals at 12 - 24VDC. PO-32B(PCI)H features 32 opto-coupler isolated open-collector outputs. In addition, this product is equipped with a power supply for driving opto-couplers (12 VDC) and output transistor protection circuit (surge voltage protection and overcurrent protection). Windows/Linux device driver is supported with this product.
Digital Output PCI Card 32ch (12VDC On-board Power Supply Isolated 12 - 24VDC)
Model:
PO-32B(PCI)H
Maker:
CONTEC Co., Ltd.
Features
- A different external power supply can be used for each common pin as it is shared by 16 channels.
Because of the common composition of a 16-point unit, each common line can respond to a different external power supply. - Opto-coupler bus isolation
As the PCI bus (PC) is isolated from the input and output interfaces by opto-couplers, this product has excellent noise performance. - Windows/Linux support device driver
Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided. - Zener diode connected to output transistors for protection from surge voltage
Zener diodes are connected to the output circuits to protect against surge voltages. In addition, the output circuit, it attaches the overcurrent protection circuit at the output 8-channel unit. The output rating is max. 35VDC, 100mA per channel.
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI |
| Size | Short Size |
| Used Connector | D-SUB 37-pin (Female) |
Digital I/O
| Input Channels | – |
|---|---|
| Output Channels | 32-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | – |
| Response Time (Output) | 200μsec (max.) |
| Operating Voltage (Input) | – |
| Operating Voltage (Output) | 12 to 24VDC |
| Input Circuit | – |
| Output Circuit | Opto-isolated open-collector output (current sink type) |
| Built-in Power Supply | 12VDC |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specifications | |
|---|---|---|
| Output | Type | Opto-Isolated Open Collector Output (current sinking type) (Negative logic *1) |
| Number of Channels | 32ch (One common power supply per 16 channels) | |
| Output rated voltage | 35VDC (Max.) | |
| Output rated current | 100mA/channel (Max.) | |
| Residual voltage with output on | 0.5V or less (Output current ≤50mA), 1.0V or less (Output current ≤100mA) |
|
| Surge protector | Zener diode RD47FM(Renesas) or equivalent | |
| Response time | 200µsec within | |
| Common | Connecting distance | 50m(Typ.)(depending on wiring environment) |
| I/O address | Any 32-byte boundary | |
| Interruption level | Not used | |
| Boards in one system | Maximum of 16 boards can be install in a same system. | |
| Isolated voltage | 500Vrms | |
| External circuit power supply | 12 – 24VDC(±10%) | |
| Internal power | 5VDC 240mA(Max.) | |
| Power consumption | 5VDC 1200mA (Max.) (Using the internal power) 5VDC 300mA (Max.) (Using the External power) |
|
| PCI bus specification | 32bit, 33MHz, Universal key shapes supported *2 | |
| Dimension (mm) | 176.41(L) x 105.68(H) *4*5 | |
| Weight | 130g | |
*1 Data “0” and “1” correspond to the High and Low levels, respectively.
*2 This product requires power supply at +5 V from an expansion slot (it does not work on a machine with a +3.3-V power supply alone).
