- CONTEC Digital I/O PCI Express Card 16ch/16ch (Isolated 12 - 48VDC / - 120VAC - 120VDC) DIO-1616RY-PE
Opto-coupler isolated input (compatible with current sink output/current source output) and semiconductor-relay output. Opto-coupler and semiconductor-relay bus isolation
This product is a PCI Express bus-compliant interface board for input/output of digital signals. This product is compatible with the digital signal I/O with high voltage (input 12 - 48VDC, output 120VAC/DC) and features 16 opto-coupler isolated inputs (compatible with current sink output/current source output) and 16 solid-state relay outputs. You can use all of input signals as interrupt inputs. In addition, the digital filter function to prevent wrong recognition of input signals is provided. Windows/Linux device driver is supported with this product.

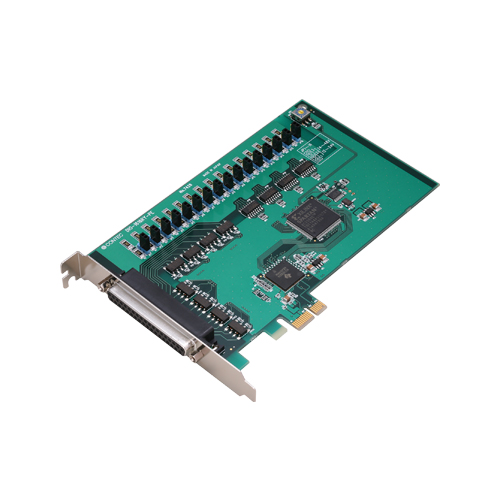

Digital I/O PCI Express Card 16ch/16ch (Isolated 12 - 48VDC / - 120VAC - 120VDC)
Model:
DIO-1616RY-PE
Maker:
CONTEC Co., Ltd.
Features
- Opto-coupler isolated input (compatible with current sink output/current source output) and semiconductor-relay output
This product has the 16 of opto-coupler isolated input (compatible with current sink output/current source output) whose response speed is 200µsec and 16 of semiconductor-relay output whose response speed is 1.0msec. Supporting driver voltages of 12 – 48VDC for input and 120VAC/DC for output with high voltage - Opto-coupler and semiconductor-relay bus isolation
As the PCI Express bus (PC) is isolated from the input and output interfaces by opto-coupler and semiconductor-relay, this product has excellent noise performance. - You can use 16 input signals as interrupt request signals.
You can use 16 input signals as interrupt request signals and also disable or enable the interrupt in bit units and select the edge of the input signals, at which to generate an interrupt. - Windows/Linux support device driver
Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided. - This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI Express |
| Size | Short Size |
| Used Connector | D-SUB 37-pin (Female) |
Digital I/O
| Input Channels | 16-ch |
|---|---|
| Output Channels | 16-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200μsec (max.) |
| Response Time (Output) | 1msec (max.) |
| Operating Voltage (Input) | 12 to 24VDC |
| Operating Voltage (Output) | to 120VAC / VDC |
| Input Circuit | Opto-isolated input (for both current sink and source output) |
| Output Circuit | Semiconductor relay output |
| Built-in Power Supply | – |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specifications | |
|---|---|---|
| Input | Type | Opto-Isolated Input (Both of current sink and source outputs supported) |
| Number of Channels | 16ch (all available for interrupts) (1 common) | |
| Input resistance | 3kΩ (with 12 to 24 V selected) or 6kΩ (with 24 to 48 V selected) | |
| Current required to turn ON | 3.1mAor more | |
| Current required to turn OFF | 1.0mA or less | |
| External circuit power supply | 12 – 24 VDC (±10%) or 24 – 48 VDC (±10%) (selected by jumper switch) | |
| Interrupt | Combine 16 interrupt signals to one interrupt request signal as the INTA. An interrupt occurs at the High-to-Low or Low-to-High edge (software-selected) | |
| Output | Type | Solid-state relayoutput |
| Number of Channels | 16ch (1 common) | |
| Output rated voltage | 120VAC/DC(Max.) | |
| Output rated current | 100mA (par channel) (Max.) | |
| Device used | PS7221A-2A (Renesas) or equivalent | |
| ON resistance | 10.0Ω or less | |
| OFF leakage current | 1.0μA or less | |
| Response time | 1.0msec within | |
| Common | Connecting distance | 50m(Typ.) (depending on wiring environment) |
| I/O address | Any 32-byte boundary | |
| Interruption level | 1 level use | |
| Boards in one system | Maximum of 16 boards can be install in a same system. | |
| Isolated voltage | 1000Vrms | |
| Power consumption | 3.3VDC 550mA (Max.) | |
| PCI bus specification | PCI Express Base Specification Rev. 1.0a x1 | |
| Dimension (mm) | 169.33(L)×110.18(H) | |
| Weight | 120g | |
*1 Data “0” and “1” correspond to the High and Low levels, respectively.
