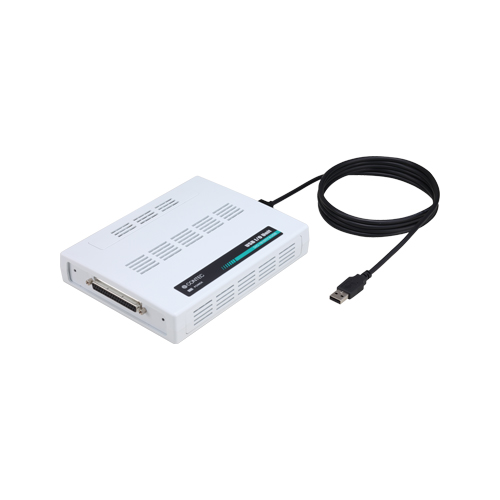

- CONTEC Digital I/O USB I/O Unit 16ch/16ch (Isolated 12 - 24VDC / - 120VAC - 120VDC) - The X Series DIO-1616RYX2-USB
16 channels of Optocoupler isolated inputs (compatible with current sink output/current source output) and 16 channels of semiconductorrelay output
This product is an USB2.0-compliant digital I/O unit used to provide a digital signal I/O function on a PC. This product features 16 channels of Opto-coupler isolated inputs (compatible with current sink output/current source output) and 16 channels of semiconductor-relay outputs. You can use all of signals as interrupt inputs. Equipped with the digital filter function to prevent wrong recognition of input signals. As there is compatible with PCI bus-compatible board PIO-16/16RY(PCI) and PCI Express bus-compatible board DIO-1616RY-PE in terms of connector shape and pin assignments, it is easy to migrate from the existing system. The input specification is fixation from 12 - 24VDC for this product. Windows/Linux device driver is supported with this product.
Digital I/O USB I/O Unit 16ch/16ch (Isolated 12 - 24VDC / - 120VAC - 120VDC) - The X Series
Model:
DIO-1616RYX2-USB
Maker:
CONTEC Co., Ltd.
Features
- 16 channels of Optocoupler isolated inputs (compatible with current sink output/current source output) and 16 channels of semiconductorrelay output
This product has 16 channels of Optocoupler isolated inputs (compatible with current sink output/current source output) whose response speed is 200µsec and 16 channels of semiconductor-relay whose response speed is 1.0msec. Supporting driver voltages of 12 – 24 VDC for input and 120VAC/DC for output with high voltage. (12 – 24VDC external circuit power supply is required separately.) - Opto-coupler and semiconductor-relay bus isolation
As the USB (PC) is isolated from the input and output interfaces by optocouplers and semiconductor-relay, this product has excellent noise performance. - All input signals can be used as interrupt request signals
You can use all input signals as interrupt request signals and also disable or enable the interrupt in bit units and select the edge of the input signals, at which to generate an interrupt. - Connectors are compatible with PCI/PCI Express bus-compatible board and digital I/O unit
As there is compatible with PIO-16/16RY(PCI), DIO-1616RY-PE and DIO-1616RYX-USB in terms of connector shape and pin assignments, it is easy to migrate from the existing system. The specification of the input part is from 12 – 24VDC fixation however. If the system of this product is created by the digital I/O driver APIDIO( 98/PC), it is required to replace it with API-DIO(WDM). - Windows/Linux support device driver
Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
Specifications
Add-on Module
| Series | USB X(Mass connector) |
|---|---|
| Bus Specification | USB |
| Size | X Type |
| Used Connector | D-SUB 37-pin (Female) |
Digital I/O
| Input Channels | 16-ch |
|---|---|
| Output Channels | 16-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200μsec (max.) |
| Response Time (Output) | 200μsec (max.) |
| Operating Voltage (Input) | 12 to 24VDC |
| Operating Voltage (Output) | to 120VAC / VDC |
| Input Circuit | Opto-isolated input (for both current sink and source output) |
| Output Circuit | Semiconductor relay output |
| Built-in Power Supply | – |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specifications | |
|---|---|---|
| Input section | Input format | Optocoupler isolated input (Both of current sink and source outputs supported) |
| Number of input signal channels | 16 channels (all available for interrupts) (1 common pin) | |
| Input resistance | 3kΩ | |
| Input ON current | 3.1mA or more | |
| Input OFF current | 1.0mA or less | |
| Interrupt | 16 input signals are arranged into a single output of interrupt request signal INTA. An interrupt is generated at the rising edge (HIGH-to-LOW transition) or falling edge (LOW-to-HIGH transition) (set by software). |
|
| Response time | 200µsec within *1 | |
| Output section | Output format | Semiconductor relay output |
| Number of output signal channels | 16ch | |
| Output rated voltage | 120VAC/DC (Max.) | |
| Output rated current | 100mA (par channel) (Max.) | |
| ON resistance | 10.0Ω or less | |
| OFF leakage current | 1.0µA or less | |
| Response time | 1.0msec within | |
| USB section | Bus specification | USB Specification 2.0/1.1 standard |
| USB transfer rate | 12Mbps (Full-speed), 480Mbps (High-speed) *2 | |
| Power supply | Bus power / Self-power *3 | |
| Common section | Allowable distance of signal extension | Approx. 50m (depending on wiring environment) |
| Number of terminals used at the same time | 16 terminals (Max.) | |
| Dielectric strength | 1000Vrms | |
| External circuit power supply *4 | 12 -24VDC (±10%) | |
| Current consumption | 5VDC 500mA(Max.) | |
| Physical dimensions (mm) | 180(W) x 140(D) x 34(H) (No protrusions) | |
| Weight | 300g (Not including the USB cable, attachment) | |
| Attached cable | USB cable 1.8m | |
*1 The Optocoupler’s response time comes.
*2 This depends on the PC environment used (OS and USB host controller).
*3 Use 5VDC power supply for sefl-power when you use the USB hub function.
*4 External circuit power supply is required separately.
