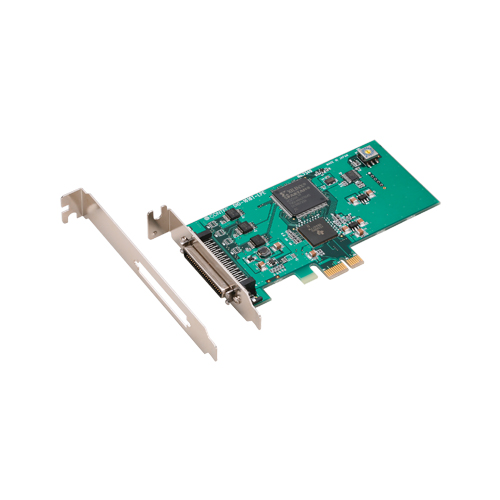

- CONTEC Digital I/O Low Profile PCI Express Card 16ch/16ch (Non-isolated 5VDC-TTL) DIO-1616T-LPE
Unisolated open collector output x 16 channels. Unisolated TTL-level (positive logic) input/output enabling fast response (within 200nsec)
This product is a PCI Express bus-compliant interface card for input/output of unisolated TTL-level digital signals. This product can input and output up to 16 channels. You can use all of the input signals as interrupt inputs. This product supports a Low Profile size slot and, if replaced with the supplied bracket, supports a standard size slot, too. Using the bundled API function library package [API-PAC(W32)], you can create Windows application software for this card in your favorite programming language supporting Win32 API functions, such as Visual Basic or Visual C++.
Digital I/O Low Profile PCI Express Card 16ch/16ch (Non-isolated 5VDC-TTL)
Model:
DIO-1616T-LPE
Maker:
CONTEC Co., Ltd.
Features
- Unisolated open collector output x 16 channels. Unisolated TTL-level (positive logic) input/output enabling fast response (within 200nsec)
- You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
- The rated output signal is up to 30VDC, 40mA per one signal.
- Support for both of low-profile and standard size slots (interchangeable with a bundled bracket)
- Equipped with the same function as the PCI card PIO-16/16T(LPCI)H. The connector shape and the signal assignment for the connector is compatible with PIO-16/16T(LPCI)H.
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI Express |
| Size | Low Profile |
| Used Connector | Miniature ribbon 50-pin |
Digital I/O
| Input Channels | 16-ch |
|---|---|
| Output Channels | 16-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200μsec (max.) |
| Response Time (Output) | 200μsec (max.) |
| Operating Voltage (Input) | 5VDC-TTL |
| Operating Voltage (Output) | 5VDC-TTL |
| Input Circuit | Non-isolated TTL level input (Negative logic) |
| Output Circuit | Non-isolated TTL open-collector output (Negative logic) |
| Built-in Power Supply | – |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specifications | |
|---|---|---|
| Input | Type | TTL-Level Input (Negative logic *1) |
| Number of Channels | 16 channels (all available for interrupts) (1 common) | |
| Input resistance | 10kΩ(1TTL load) | |
| Interrupts | Combine 16interrupt signals to one interrupt request signal as the INTA. Either rising edge or falling edge of input signal can generate interrupt. | |
| Response time | 200nsec within | |
| Output | Type | Open Collector Output (Negative logic *1) |
| Number of Channels | 16ch (1 common) | |
| Output rated voltage | 30VDC(Max.) | |
| Output rated current | 40mA(per channel) (Max.) | |
| Response time | 200nsec within (Variable with pull-up resistance) | |
| Common | Built-in power | None |
| Connecting distance | 1.5m(Typ.)(depending on wiring environment) | |
| I/O address | Any 32-byte boundary | |
| Interruption level | 1 level use | |
| Boards in one system | Maximum of 16 boards can be install in a same system. | |
| Power consumption | 3.3VDC 350mA (Max.) | |
| Bus specification | PCI Express Base Specification Rev. 1.0a x1 | |
| Dimension (mm) | 121.69(L) x 67.90(H) | |
| Weight | 60g | |
*1 Data “0” and “1” correspond to the High and Low levels, respectively.
