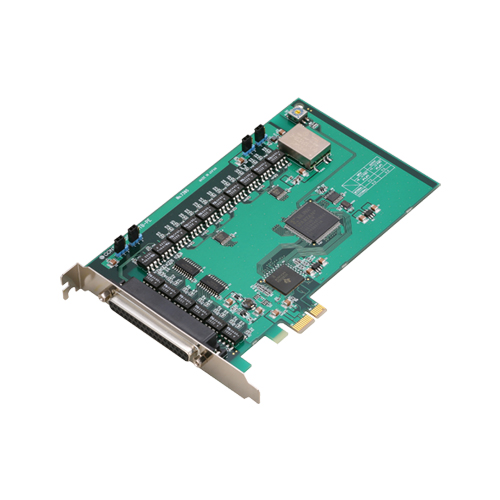

- CONTEC Digital I/O PCI Express Card 16ch/16ch (5VDC On-board Power Supply High-speed Isolated 5VDC-TTL) DIO-1616TB-PE
Opto-coupler isolated TTL level input, opto-coupler isolated TTL level output. Opto-coupler bus isolation
This product is a PCI Express card used to provide a digital signal I/O function on a PC. This product features TTL level input 16ch, TTL level output 16ch opto-coupler isolated type with an internal 5VDC power supply that does not require external power. You can use all of the input signals as interrupt inputs. In addition, digital filter function to prevent wrong recognition of input signals is provided. Windows/Linux driver is bundled with this product. Possible to be used as a data recording device for LabVIEW, with dedicated libraries.
Digital I/O PCI Express Card 16ch/16ch (5VDC On-board Power Supply High-speed Isolated 5VDC-TTL)
Model:
DIO-1616TB-PE
Maker:
CONTEC Co., Ltd.
Features
- Opto-coupler isolated TTL level input, opto-coupler isolated TTL level output
This product has the opto-coupler isolated TTL level input 16ch and output 16ch whose high speed response speed is 1µsec. - Opto-coupler bus isolation
As the PCI Express bus (PC) is isolated from the input and output interfaces by opto-couplers, this product has excellent noise immunity. - Power supply (5VDC 600mA) for driving opto-coupler
Power supply (5VDC 600mA) for driving opto-coupler is equipped. Whether or not to use the internal power supply can be specified by jumpers in blocks of 16ch. - You can use all of the inpur signals as interrupt events.
You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge. - This product has a digital filter to prevent input signals from carrying noise or a chattering.
This product has a digital filter to prevent input signals from carrying noise or a chattering. This product has a digital filter to prevent input signals from carrying noise or a chattering. All input channels can be added a digital filter, and the setting can be performed by software. - Windows/Linux compatible driver libraries are attached
Bundled driver library API-PAC(W32) enables to create Window/Linux applications. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI Express |
| Size | Short Size |
| Used Connector | D-SUB 37-pin (Female) |
Digital I/O
| Input Channels | 16-ch |
|---|---|
| Output Channels | 16-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 1μsec (max.) |
| Response Time (Output) | 1μsec (max.) |
| Operating Voltage (Input) | 5VDC-TTL |
| Operating Voltage (Output) | 5VDC-TTL |
| Input Circuit | Opto-isolated TTL level input (Negative logic) |
| Output Circuit | Opto-isolated TTL level output (Negative logic) |
| Built-in Power Supply | 5VDC |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specifications | ||
|---|---|---|---|
| Input | Input format | Opto-isolated TTL level input (Negative logic *1) | |
| Number of input signal channels | 16ch (all available for interrupts) (1 common) | ||
| Input resistance | 1.1kΩ | ||
| Interrupt | 16 interrupt input signals are arranged into a single output of interrupt signal INTA. An interrupt is generated at the rising edge (HIGH-to-LOW transition) or falling edge (LOW-to-HIGH transition). |
||
| Responsec time | Within 1μsec. | ||
| Output | Output format | Opto-isolated TTL level output (Negative logic *1) | |
| Number of output signal channels | 16ch (1 common) | ||
| Output rating | Output voltage | 5VDC (Max.) | |
| Output current | Average 6.4mA (par channel) (4 TTL loads ) | ||
| Response time | Within 1µsec | ||
| Common | Built-in power | 5VDC 600mA *2 | |
| Allowable distance of signal extension | Approx. 5m (depending on wiring environment) | ||
| I/O address | Any 32-byte boundary | ||
| Interruption level | 1 level use | ||
| Max. board count for connection | 16 boards including the master board | ||
| Isolated Power | 500Vrms | ||
| External circuit power supply | 5VDC (±10%) | ||
| Power consumption (Max.) | When using the internal power supply : 3.3VDC 550mA, 12VDC 350mA When using the external power supply : 3.3VDC 550mA |
||
| Bus specification | PCI Express Base Specification Rev. 1.0a x1 | ||
| Dimension (mm) | 169.33(L) x 110.18(H) | ||
| Connector | 37 pin D-SUB connector [F (female) type] DCLC-J37SAF-20L9E [mfd by JAE] or equivalent to it | ||
| Weight | 140g | ||
| Standards | VCCI Class A, CE Marking (EMC Directive Class A, RoHS Directive), UKCA | ||
*1 Data “0” and “1” correspond to the High and Low levels, respectively.
*2 When using the internal power supply, the input section consumes a maximum of 51mA and the output channel switching section consumes a maximum of 105.6mA. In this case, therefore, the output current to be supplied from the board is 443.4mA.
