- CONTEC Digital I/O Low Profile PCI Express Card Bi-directional 48ch (Non-isolated 3VDC-LVTTL) DIO-48D-LPE
This product can be used to input/output 48 points bi-directional digital corresponding to the i8255 mode 0. Unisolated LVTTL-level (positive logic) input/output enabling fast response (within 200nsec).
This product is a PCI Express bus-compliant interface card that can perform the input/output of LVTTL level bi-directional digital signal. This product can input and output up to 48 channels. You can select the input/output by the application software in eight signals units. This product supports a Low Profile size slot and, if replaced with the supplied bracket, supports a standard size slot, too. Using the bundled API function library package [API-PAC(W32)], you can create Windows application software for this card in your favorite programming language supporting Win32 API functions, such as Visual Basic or Visual C++.

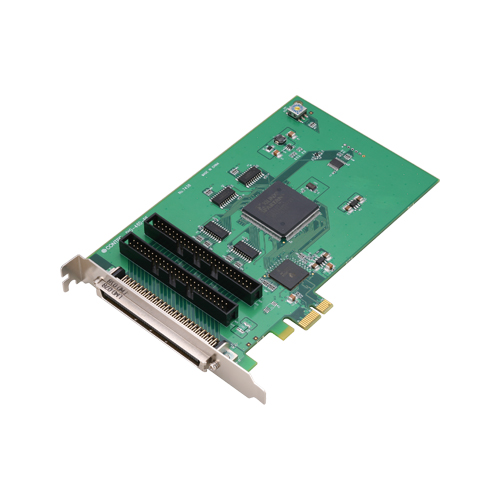

Digital I/O Low Profile PCI Express Card Bi-directional 48ch (Non-isolated 3VDC-LVTTL)
Model:
DIO-48D-LPE
Maker:
CONTEC Co., Ltd.
Features
- This product can be used to input/output 48 points bi-directional digital corresponding to the i8255 mode 0. Unisolated LVTTL-level (positive logic) input/output enabling fast response (within 200nsec).
- You can use all of the input signals (Max. 48) as interrupt inputs. You can also disable or enable the interrupt in bit units and select the interrupt edge.
- This product has a digital filter to prevent input signals from carrying noise or a chattering. This product has a digital filter to prevent input signals from carrying noise or a chattering. All input channels can be added a digital filter, and the setting can be performed by software.
- Application software enabling the switching of input and output settings
- Support for both of low-profile and standard size slots (interchangeable with a bundled bracket)
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI Express |
| Size | Low Profile |
| Used Connector | 0.8mm-pitch 68-pin (Female) |
Digital I/O
| Input Channels | – |
|---|---|
| Output Channels | – |
| Bi-directional I/O Channels | 48-ch |
| Response Time (Input) | 200nsec (max.) |
| Response Time (Output) | 200nsec (max.) |
| Operating Voltage (Input) | 3.3VDC-LVTTL |
| Operating Voltage (Output) | 3.3VDC-LVTTL |
| Input Circuit | Non-isolated LVTTL level input (Positive logic) |
| Output Circuit | Non-isolatedLVTTL level output (Positive logic) |
| Built-in Power Supply | – |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specification | |
|---|---|---|
| I/O | Type | Non-isolated LVTTL-level I/O (Positive logic) *1 |
| Number of Channels | 48ch (all available for interrupts) | |
| Interrupts | Combine 48 interrupt signals to one interrupt request signal as the INTA. Either rising edge (LOW-to-HIGH transition) or falling edge (HIGH-to-LOW transition) of input signal can generate interrupt. | |
| Response time | 200nsec within | |
| Rated output current | IOL=8mA (Max.) IOH=-8mA (Max.) | |
| Common | Connecting distance | 1.5m(Typ.) (depending on wiring environment) |
| I/O address | Any 32-byte boundary | |
| Interruption level | 1 level use | |
| Boards in one system | Maximum of 16 boards can be install in a same system. | |
| Power consumption | 3.3VDC 300mA (Max.) | |
| Bus specification | PCI Express Base Specification Rev. 1.0a x 1 | |
| Dimension (mm) | 121.69(L) x 67.90(H) | |
| Weight | 60g | |
*1 Data “0” and “1” correspond to the Low and High levels, respectively.
