Kakuhunter by Shashin Kagaku

Kakuhunter

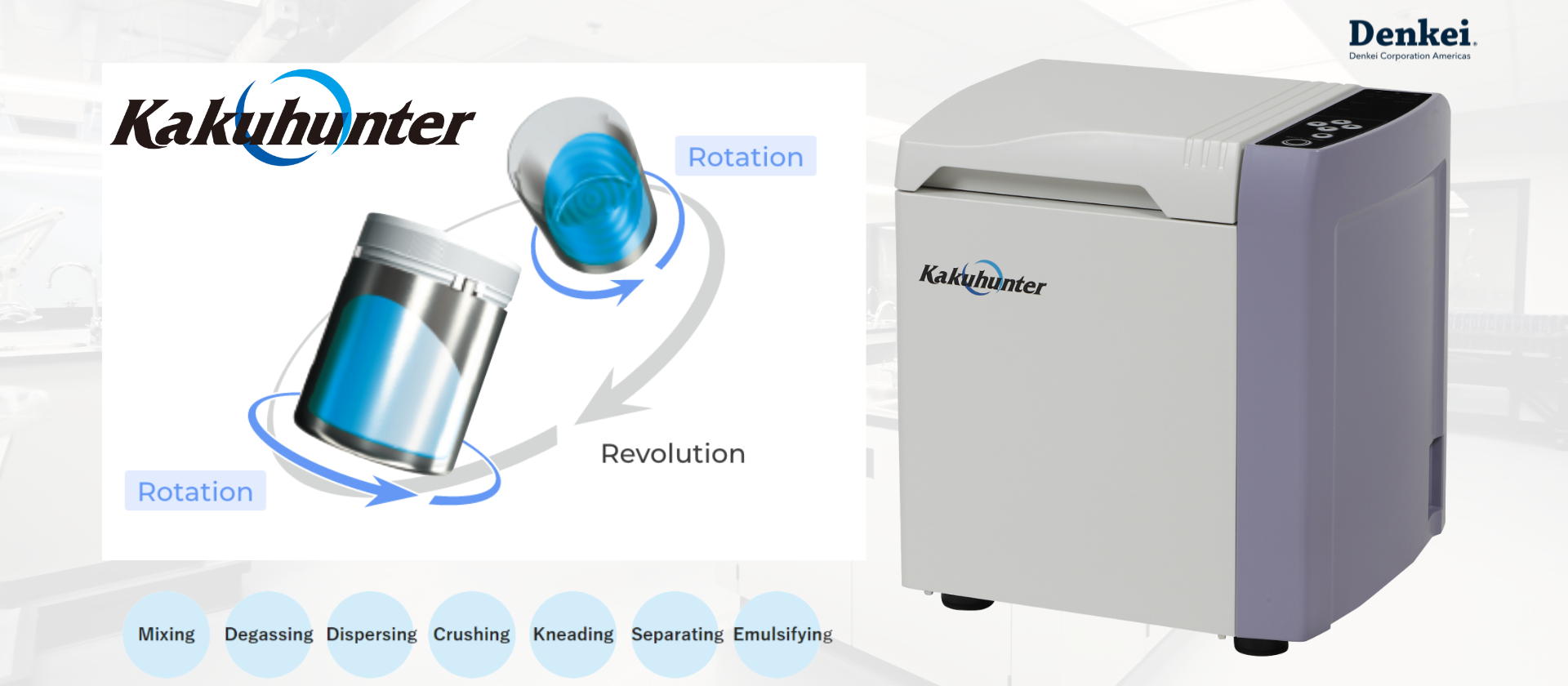

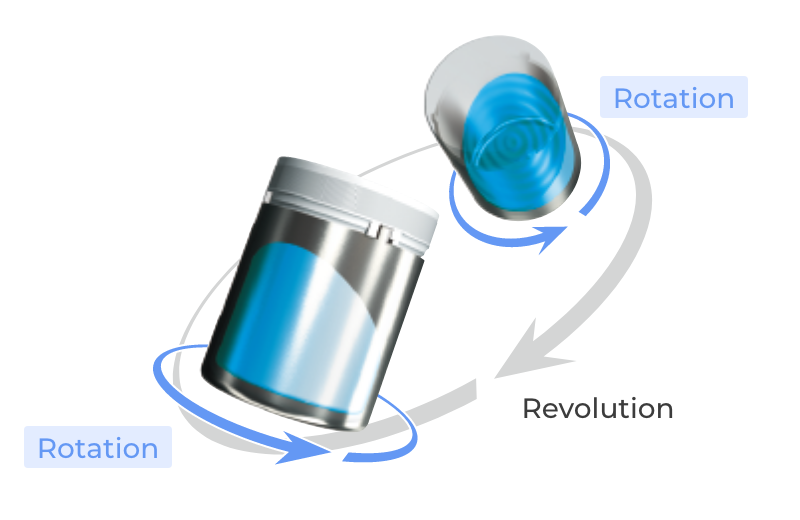

Individual revolution and rotation speed control system




Equipped with revolution and rotation individual speed control system.
The ratio of revolution and rotation can be adjusted; thus 90 different speed combinations can be set.



All-in-one support of other applications (abrasive, coating, etc.).
With ordinary models, the rotation speed ratio is fixed by the gear ratio, so even if the speed of revolution is adjusted, some materials may not properly mix or create lump, and practically these problems could not be solved.
By contrast, with the individual speed control system, revolution can be set in 9 steps, rotation in 10 steps, providing the advantages below.





6 advantages of variable rotation speed




Features include…

  • Short-time processing
  • Mixing and degassing of the material with high viscosity
  • Mixing and dispersing of the materials with different specific gravities
  • Mixing of the materials with different viscosities
  • No lump from the mixing
  • Eliminating fine bubbles
  • Deaerating process before analyze and the inspection
