Hệ thống camera quay video VDM-3
Malcom VDM-3 là một thiết bị nhận dữ liệu như thời gian, nhiệt độ và lực làm ướt từ các kiểu máy (model) tương thích như bộ mô phỏng chỉnh nhiệt, lò nung nóng đối lưu (reflow oven) và máy kiểm tra khả năng thấm ướt, đồng thời xuất ra video được xếp chồng lên video của máy quay video đang được quay tại cùng lúc.
Hệ thống camera quay video
Model:
VDM-3
Maker:
Malcom
Tính năng và đặc trưng sản phẩm
- Xem đồng thời ảnh từ hai máy ảnh.
- Bạn có thể chọn máy ảnh theo mục đích của mình, máy ảnh tiêu chuẩn hoặc máy ảnh hiệu suất cao.

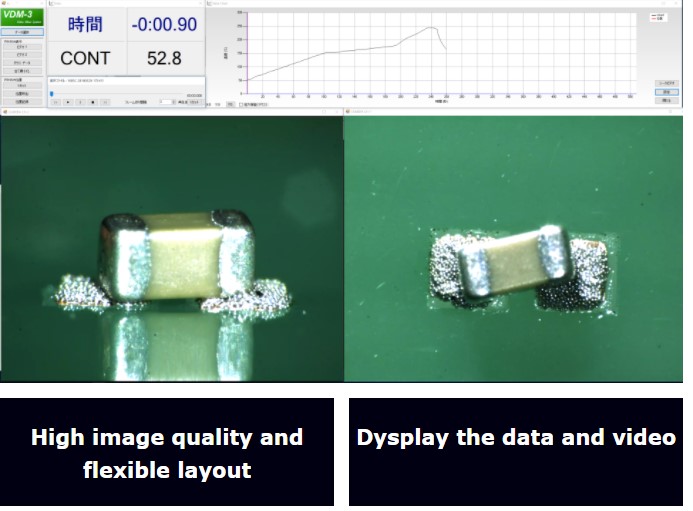

- Tự do bố trí các mục hiển thị kích thước phim và vị trí dữ liệu trong khi phát lại.
- Sắp xếp hai nguồn cấp dữ liệu video và dữ liệu đầu ra từ thiết bị riêng biệt.
- Chuyển động chậm (Slow motion) được hỗ trợ.
- VDM-3 hỗ trợ Reflow Simulator, Table Top Module Relfow Oven và Máy kiểm tra làm ướt dán hàn.

Ứng Dụng
- Đánh giá chất lượng linh kiện và vật liệu điện tử …
Video mẫu
Thông số kỹ thuật
Item | Specification | ||
Model Name | VDM-2 | ||
Mixer | Image mixing function | Black blanking composition, 4-division display,Picture-in-picture | |
Data display position control | Sets the positions and sizes of time, temperature data and temperature graph freely. | ||
Scale function | Displays a scale in an image input from the camera A or B to allow the user to measure the length, area, etc. | ||
Inpu | Camera 1 | Input image from Camera 1 CameraLink (PoCL) 1688×1236(UXGA) 30FPS | |
Camera 2 | Input image from Camera 2 CameraLink (PoCL) 1688×1236(UXGA) 30FPS | ||
Data input | Data input from RDT-1, RDT-250C, RS-1, SRS-1 & SP-2 | ||
Output | Image | Video image output HDMI Type A (HDCP noncompliant)1688×1236(UXGA) | |
PC | OS | Windows10 64bit | |
Capture image resolution | 1688×1236(UXGA) | ||
Capture file format | H.264 / MPEG-4 AVC | ||
Capture frame rate | 30FPS | ||
Weight | Approx. 9kg | ||
Power source | AC100V 50/60Hz |
- 【Applicable Models】① RDT-1 ② RDT-250C ③ RS-1 ④ SRS-1 , SRS-1C, SRS-2 ⑤ SP-2
【Camera】
TV method | Cameralink (PoCL) 1688×1236(UXGA) 30FPS |
Effective number of pixels | 1688×1236 |
Current consumption | Approx. 4w |
【Lens】
Optical magnification | 0.75×~ 4.5× |
W. D. | Approx. 90 mm (with the optional lens : Approx. 187mm) |
Depth of field | ±1.78mm~±0.13 mm |
Weight | Approx. 8kg (Camera & Stand included) |
【 Lighting】
Light source | 150W Halogen lamp |
Average lamp life | Approx. 500 hours |
Average illuminance | 45000 luxes |
Power source | 100~240 V AC±10% 50 or 60 Hz |
Current consumption | 2.3 A |
Weight | Approx. 1kg (Light fiber guide not included) |
