Đo nhiệt độ dễ dàng hơn với Nhiệt kế Anritsu HD-1500E/K
Anritsu Meter là công ty tiên phong trong công nghệ đo lường nhiệt độ và đóng một vai trò tích cực trong việc nâng cao kỹ thuật đo nhiệt độ trong ngành công nghiệp.
Với độ chính xác cao, Nhiệt kế cầm tay Anritsu Meter HD-1500E/K được sử dụng để đo nhiệt độ tại chỗ và nhiều ứng dụng khác trong các nhà máy sản xuất.
Nhiệt kế điện tử cầm tay
Model:
HD-1500E/K
Maker:
ANRITSU METER
Tính năng và đặc điểm của sản phẩm
- Độ chính xác cao ± 0,2 ° C (ở 0 ° C)
- Đo nhiệt độ chính xác trong điều kiện môi trường thay đổi nhanh chóng.
- Được làm từ vật liệu chống thấm nước
- Được trang bị màn hình LCD lớn dễ đọc
- Tiêu thụ ít năng lượng
- Có khả năng hoạt động liên tục trong vòng 300 giờ (HD-11 * 0,12 * 0,14 * 0,1650,1750)
- Có nhiều loại đầu đo khác nhau

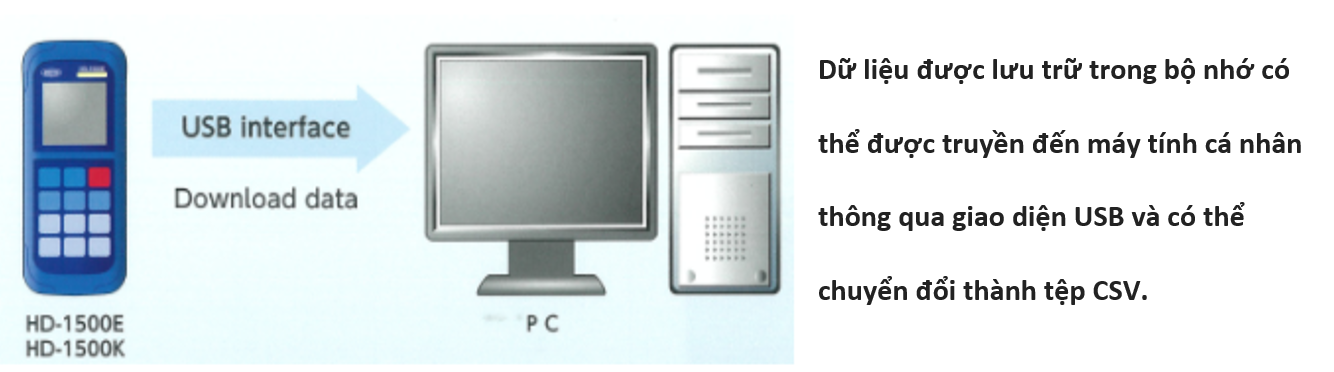

- Dữ liệu đo được lưu trong bộ nhớ có thể kết nối với máy tính thông qua phần mềm AMS-100
Thông số kỹ thuật
Model | HD-1500E/K | ||
Display | LCD with Backlight | ||
Waterproof specifications | – | ||
Input connector | ASP | ||
Input type | Thermocouple Input: Type E, K | ||
Channel | 1ch | ||
Signal source resistance | MAX.500ohm | ||
Measurement Range | 1°C Resolution | E | -200 to 800°C |
K | -200 to 1370°C | ||
0.1°C Resolution | E | -104.9 to 504.9°C
(Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.) |
|
K | -104.9 to 504.9°C
(Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.) |
||
Measurement Accuracy | 1°C Resolution | 0°C to | ± (0.1% of reading +1°C) |
to 0°C | ± (0.5% of reading +1°C) | ||
0.1°C Resolution | 0°C to | ± (0.05% of reading + 0.2°C) | |
to 0°C | ±0.5°C | ||
Reference junction compensation accuracy | ±0.2°C at 25°C±10°C | ||
Temperature Coefficient | ±0.01% of F/S per °C (F/S : full scale) | ||
Operation Environment | 0 to 40°C, 0 to 80%RH (Non condensing)
32 to 104°F, 0 to 80%RH (Non condensing) |
||
Storage Environment | -20 to 50°C, 0 to 85%RH (Non condensing)
-4 to 122°F, 0 to 85%RH (Non condensing) |
||
Battery life | 150h | ||
Power supply(Dry battery) | 4 AA Alkali Batteries | ||
Power supply(AC power) | AC-Adaptor (Option) | ||
Sampling rate | approx.300ms | ||
Linearlizer | Digital Linearizer method (Compliant with IEC 60584-1 (2013)) | ||
Dimensions(mm) | approx. 76(w)×167(H)×36(D) [Protruded parts excluded] | ||
Weight | approx. 350g [Include Batteries] | ||

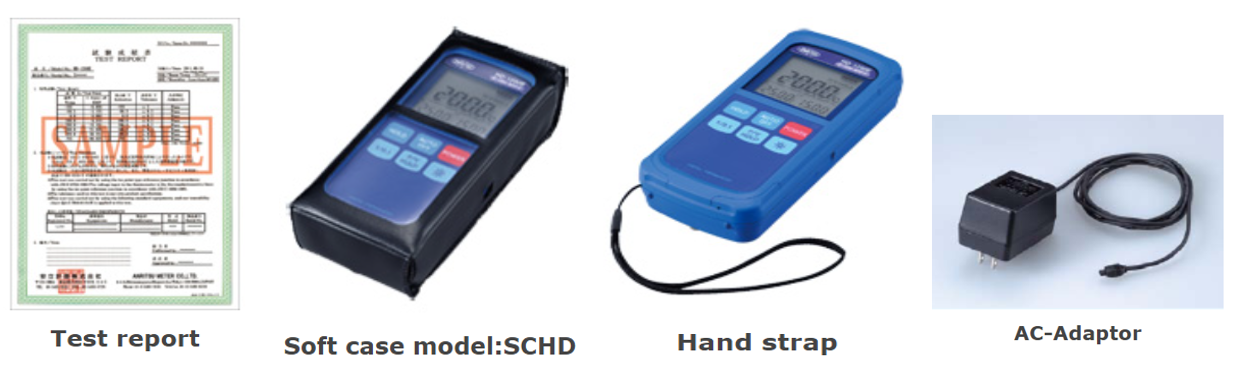

Supplied accessories | Manual,Test report,Soft case, | ||
Hand strap,4 AA Alkaline batteries | |||
Optional accessories | Communication Cable,Software (AMS-100) | ||
Alarm Output | – | ||
Analog Output | – | ||
Memory function | (Table1) | ||
Compatible standards | CE Marking, RoHS |
PHẦM MỀM

Phụ kiện tiêu chuẩn
