T-35 sheath thermocouple (type K)

T-35 sheath thermocouple (type K)

A sheath thermocouple is an electrical device consisting of thermocouple wires running through a heat resistant metal tube (SUS316) that is filled and sealed with high-purity insulator.
It is a narrow piece of metal, and has excellent response speed.

Maker:

SAKAGUCHI ELECTRIC HEATERS

Specification

Thermocouple Type K type
Sheath material SUS316
End shape grounded type, ungrounded type
Extension wire heat resistant glass coating (blue)
EMF conforms to JIS C1605
Tolerance JIS class 2 (K)
(Class 2: -40℃ to 333℃, ±2.5℃
333℃ to 1200℃, ±0.00751 |t|*)
*|t|: A temperature value (℃) represented irrespective of the + and – signs of measured temperatures.

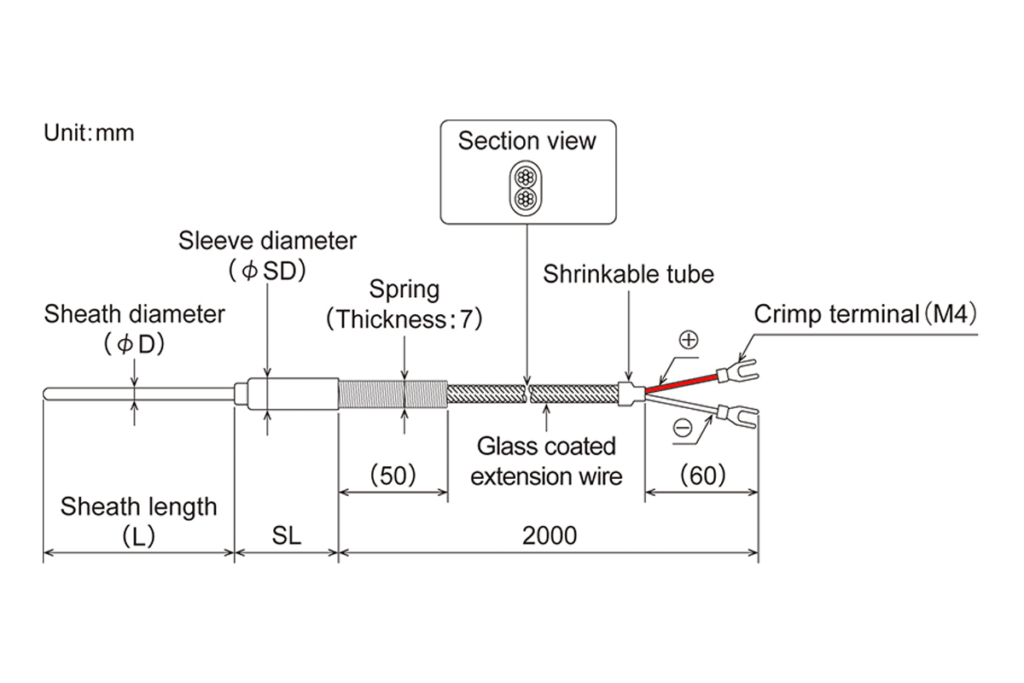

Configure of standard types

Precautions when using this product

  • ・Do not operate the product when the sleeve temperature reaches 70℃ or higher.
  • ・When the sleeve temperature exceeds 70℃ during use, contact our sales representative.
