- HIOKI GENNECT One SF4000
Get Results from Job Site in Real-Time Capture Data on the PC while Testing Remotely

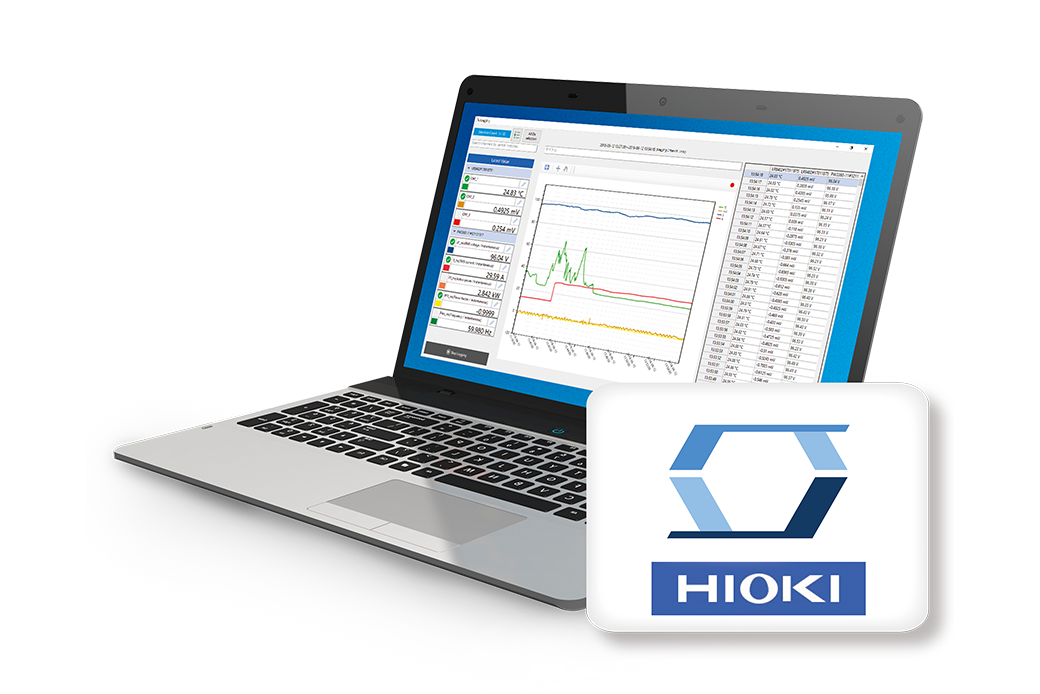

GENNECT ONE is a free PC software for Windows operating systems that lets you log data in real-time, import data and files, configure instrument settings, export native data as a CSV file and create reports with select Hioki measuring instruments.
Remote measurement is also possible by connecting to the GENNECT Cloud.
GENNECT One
Model:
SF4000
Maker:
HIOKI E.E. CORPORATION
Features
- Operate measuring instruments connected via LAN from a PC*2
- Automatically transfer files saved on a LAN-connected measuring instrument to a PC*3
- List MAX, MIN and AVG values (Display time of MAX & MIN data)
- Real-time calculation of measurement values of arbitrary measurement items (calculation between channels)
- Automatically output measurement data to daily/weekly/monthly report or CSV file
- Enable remote measurement by connecting to GENNECT Cloud
*1: Max. number of connections: 30 units. The measurement value (current location) displayed by the instrument is acquired at a fixed interval (minimum 1 second) by the PC timer.
*2: Max. number of connections: 30 units.
*3: Max. number of connections: 15 units.
Specifications
Integration with GENNECT Cloud
| Functions | Upload measurement data on the local PC to the cloud for sharing and management. Receive measurement values from remotely connected instruments, retrieve instrument data files, or control instruments remotely*1 (Remote measurement mode). Upload threshold information of battery testers BT3554, BT3554-01, BT3554-50 and profile information of BT3554-50 to the cloud for sharing and management.*2 *1 Remote instrument control is only available with the Standard/Pro plans of GENNECT Cloud. |
|---|---|
| Storage size | Trial: 512 MB, Free: 5 GB, Standard: 50 GB, Pro: 500 GB |
| Supported models (Remote measurement mode) | PQ3100, PQ3198, PW3335, PW3336, PW3337, PW3360, PW3365, PW3390, PW4001, PW6001, PW8001, LR8410, LR8416, LR8450, LR8450-01, MR8848, MR6000
*1 LR8410 and LR8416 do not support remote control via cloud. |
| Max. number of units that can be connected | Trial: 1, Free: 3, Standard: 8, Pro: 8 |
| Max. number of channels selectable per unit | Trial: 10, Free: 30, Standard: 30, Pro: 100 |
Logging Functions
| Functions | Generate monitor, graph, and list displays of measured values from LAN-connected instruments in real time.* Real-time calculation of measurement values of arbitrary measurement items (calculation between channels). Automatically output measurement data to daily/weekly/monthly report or CSV file. * Acquire measured values displayed on instruments at intervals as short as 1 sec. |
|---|---|
| Logging intervals | 1, 2, 5, 10, 30 sec. 1, 2, 5, 10, 30 min. 1 hour |
| Measured parameters | PW8001, PW4001, PW6001, PW3390: Basic and harmonic measurement items. PW3335, PW3336, PW3337: Basic measurement items. PQ3100, PQ3198, PW3365, PW3360: Voltage, Current, Power. LR8400, LR8401, LR8402, LR8410, LR8450, LR8450-01, MR8848, MR6000: Temperature, Analog input, etc. Calculation between channels (up to 16 items). |
| Number of items able to monitor and log | Max. 512 items + 16 items (calculation between channels) |
| Recording time | Continuous measurement, set time. File segmentation: 1 day, 1 hour. Logging stops when PC storage is below 512 MB. |
| Max. number of connections | 30 units |
Dashboard
| Functions | Monitor measured values in real time from LAN-connected instruments. Display alarms in real time. Display measured values on user-selected images. Real-time calculation between channels. Automatic report and CSV output.
* Acquire measured values displayed on instruments at intervals (as short as 1 sec.) according to the computer’s timer. |
|---|---|
| Monitoring intervals | 1, 2, 5, 10, 30 sec. 1, 2, 5, 10, 30 min. 1 hour |
| Measured parameters | PW8001, PW4001, PW6001, PW3390: Basic Measurement items, Harmonic measurement items (Instantaneous value per interval) PW3335, PW3336, PW3337: Basic Measurement items (Instantaneous value per interval) PQ3100, PQ3198, PW3365, PW3360: Voltage, Current, Power (Instantaneous value per interval, MAX, MIN, AVE values between intervals) LR8400, LR8401, LR8402, LR8410, LR8450, LR8450-01, MR8848, MR6000: Various measurement items such as Temperature, Analog input, etc. (Instantaneous value per interval) Calculation between channels (up to 16 items) |
| Number of stored parameters | Max. 512 items + 16 items (calculation between channels) |
| Recording time | Recording time: Continuous measurement File segmentation: 1 day, 1 hour Logging stops when the storage capacity of the PC is below 512 MB |
| Max. number of connections | 30 units |
Remote Control
| Functions | Control LAN-connected instruments from a computer. |
|---|---|
| Number of simultaneous operation | 30 units at a time. |
File Transfer (Manual)
| Interface | LAN, USB (USB only for BT3554-50, BT3554, 3554) |
|---|---|
| Functions | Acquire files stored in LAN-connected instruments from a PC. BT3554-50 series can be acquired via USB. |
| Compatible instruments | PQ3100, PQ3198, PW3360, PW3365, PW3390, PW4001, PW6001, PW8001, LR8400, LR8401, LR8402, LR8410, LR8416, LR8450, LR8450-01, MR8848, MR6000, BT3554-50, BT3554, 3554 |
| Number of simultaneous operation | 1 unit at a time |
File Transfer (Automatic)
| Functions | Automatically send files saved by LAN-connected instruments to a computer. |
|---|---|
| Compatible instruments | PQ3100, PQ3198, PW3360, PW3365, PW4001, PW8001, LR8400, LR8401, LR8402, LR8410, LR8416, LR8450, LR8450-01, MR8848, MR6000 |
| Max. number of connections | 15 units |
Other Functions
| Files loading | GENNECT Cross files, GENNECT Remote files, measurement data folders and measurement data files.
* Logging, General Measurement, image and battery formats only. Data file obtained by GENNECT Remote |
|---|---|
| Instrument clock synchronization | Set the clocks of measuring instruments connected via LAN to the PC (manual, automatic) |
| CSV output | Logging data, time-series measurement data, waveform files of instruments supporting time-series viewer, data files acquired by GENNECT Cross (standard measurement, battery) |
| Report creation | PDF, Word and Excel formats |
System requirements
| Supported operating systems | Windows 10 (32/64-bit), Windows 11 |
|---|---|
| Software environment | Microsoft .NET Framework 4.6.2 or later |
| CPU | Clock speed: 2 GHz or greater |
| RAM | 4 GB or more |
| Display | 1366 × 768 or better |
| Hard drive | 1 GB or more available space |
