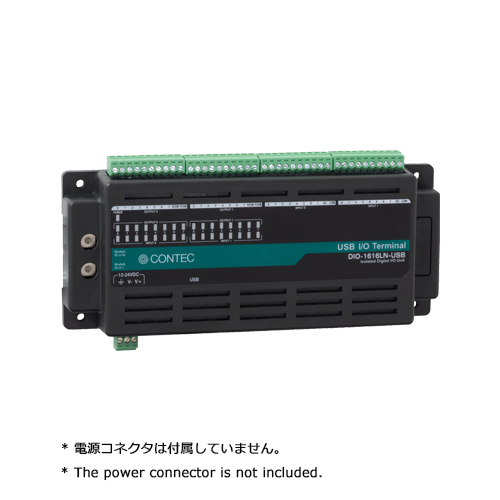

- CONTEC N Series for USB. Isolated Digital I/O Unit (16ch DI, 16ch DO) DIO-1616LN-USB
16 channels of Opto-coupler isolated inputs (compatible with current sink and current source outputs) and 16 channels of Opto-coupler isolated open-collector outputs (compatible with current sink type)
This product is an USB 2.0-compliant digital I/O unit that provides the input and output function of digital signal from the USB port of PC. Digital signals can be input and output at 12 - 24VDC.16 channels of Opto-coupler isolated inputs (compatible with both current sink and current source outputs) and 16 channels of Opto-coupler isolated open-collector outputs (compatible with current sink type) are equipped. Up to eight channels are used as an interrupt. Also, including a digital filter function which prevents wrong recognition of input signals, and output transistor protection circuit (surge voltage protection and over current protection). Compact design not restricting installation location (188.0(W) x 78.0(D) × 30.5(H)) makes it easy to install the product within the panel or device using DIN rail mounting jigs, or on the floor or wall. Windows/Linux device driver is supported with this product.
N Series for USB. Isolated Digital I/O Unit (16ch DI, 16ch DO)
Model:
DIO-1616LN-USB
Maker:
CONTEC Co., Ltd.
Features
- 16 channels of Opto-coupler isolated inputs and outputs
Features 16 channels of isolated inputs (sink/source compatible) and 16 channels of open-collector outputs (sink type) with a 200µsec response time. - 8 interrupt request signals
Allows 8 input signals to serve as interrupts, with bit-level enable/disable and edge selection. - Digital filter for noise prevention
Includes software-configurable digital filtering on all input terminals to prevent noise and chattering errors. - Surge and overcurrent protection
Equipped with Zener diodes for surge protection and overcurrent protection per 8-channel output unit (max. 60VDC, 100mA/channel). - Flexible power supply options
Supports USB bus power or an external 12 – 24VDC power supply, complete with an FG terminal. - OS and driver support
Supports Windows and Linux via the API-TOOL device driver, including a hardware diagnostic program.
Specifications
Add-on Module
| Series | USB N(Compact) |
|---|---|
| Bus Specification | USB |
| Size | N Type |
| Used Connector | 4x 3.5mm-pitch 10-pin 2-piece terminal block |
Digital I/O
| Input Channels | 16-ch |
|---|---|
| Output Channels | 16-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200μsec (max.) |
| Response Time (Output) | 200μsec (max.) |
| Operating Voltage (Input) | 12 to 24VDC |
| Operating Voltage (Output) | 12 to 24VDC |
| Input Circuit | Opto-isolated input (for sink current output); Opto-isolated input (for source current output) |
| Output Circuit | Opto-isolated open-collector output (current sink type) |
| Built-in Power Supply | – |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Linux |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specifications | ||
|---|---|---|---|
| Input | Type | Opto-Isolated Input (compatible with current sink output and current source output)(Negative logic *1) | |
| Number of Channels | 16 channels (8 channels available for interrupts) (8 channels / common) | ||
| Input resistance | 15kΩ | ||
| Current required to turn ON | 0.7mA or more | ||
| Current required to turn OFF | 0.15mA or less | ||
| Interrupts | 8 input signals are arranged into a single output of interrupt signal An interrupt is generated at the falling (HIGH-to-LOW transition) or rising (LOW-to-HIGH transition) edge (set by software). |
||
| Response time | 200µsec within *2 | ||
| Output | Type | Opto-isolated open collector output (Compatible with current sink)(Negative logic *1) | |
| Number of Channels | 16 channels (8 channels share 1 common) | ||
| Output rating | Output rated voltage | 60VDC (Max.) | |
| Output rated current | 100mA/channel (Max.) | ||
| Residual voltage with output on | 0.5V or less (Output current ≤ 50mA), 1.0V or less (Output current ≤ 100mA) | ||
| Surge protector | Zener diode CMZB68(TOSHIBA) or equivalent | ||
| Response time | Within 200µsec *2 | ||
| USB section | Bus specification | USB Specification 2.0/1.1standard | |
| USB transfer rate | 12Mbps (Full-speed), 480Mbps (High-speed) *3 | ||
| Power supply | Bus power / Self-power *4 | ||
| Common | Allowable distance of signal extension | Approx. 50m (depending on wiring environment) | |
| Isolated voltage | 1000Vrms | ||
| External circuit power supply *5 | 12 – 24VDC(±10%) | ||
| Current consumption | 12VDC 200mA (Max.), 24VDC 100mA (Max.) | ||
| Physical dimensions (mm) | 188.0(W)×78.0(D)×30.5(H) (No protrusions) | ||
| Weight | 300g (Not including the USB cable, attachment, connector) | ||
| Attached cable | USB cable 1.8m | ||
*1 Data “0” and “1” correspond to the High and Low levels, respectively.
*2 The Optocoupler’s response time comes.
*3 This depends on the PC environment used (OS and USB host controller).
*4 The product can be operated with both Bus power and Self-powered.
*5 External circuit power supply is required.
