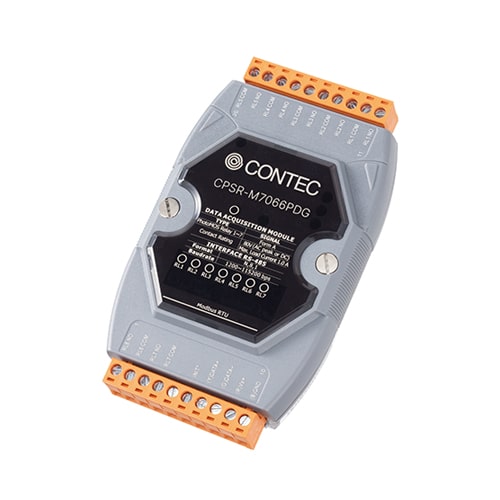

- CONTEC Modbus-RTU RS-485 Remote I/O Photo MOS Relay Output 7ch - CONPROSYS Robust I/O Series CPSR-M7066PDG
Edge AI accelerator equipped with NVIDIA® Jetson Xavier™ NX. Long-term supply and maintenance
The CONPROSYS Robust I/O series is a standalone remote I/O module that supports the Modbus communication protocol. It is designed to be environmentally resistant, with excellent noise resistance and overvoltage and overcurrent protection circuits, and can be used in industrial applications such as monitoring factory equipment and production lines and process control.
CONTEC Modbus-RTU RS-485 Remote I/O Photo MOS Relay Output 7ch - CONPROSYS Robust I/O Sseries
Model:
CPSR-M7066PDG
Maker:
CONTEC Co., Ltd.
Features
- RS-485 based Robust remote I/O module for Modbus-RTU protocol : 7ch Photo MOS Relay Output
RS-485 (Modbus-RTU) based remote I/O with 7ch Photo MOS Relay Output. Communication control system of up to 1.2 km can be constructed using low-cost twist-pair cable. - Designed for a wide operating temperature range of -25 to 75°C (-13 to 167°F)
Designed to withstand a wide operating temperature range of -25 to 75°C (during operation) (-13 to 167°F). Robust design that can be used in outdoor environments with large temperature changes. - Dual watchdog function monitors module and communication failures
Dual watchdog function monitors module and communication failures. If an operational failure of the module is detected, it will automatically reset and return the signal output to the set value. If the communication command from the host is interrupted, the signal output will also return to the set value. This prevents damage and abnormal operation of the sensors/actuators connected to the module. - Robust ESD/EFT resistance
Passes IEC 61000-4-2 ESD and IEC 61000-4-4 EFT tests. Robust design that is resistant to noise, spikes and high-voltage electrostatic discharges.
Specifications
Add-on Module
| Series | CONPROSYS Robust I/O |
|---|---|
| Bus Specification | RS-485 (Modbus-RTU) |
| Size | – |
| Used Connector | – |
Digital I/O
| Input Channels | – |
|---|---|
| Output Channels | 7-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | – |
| Response Time (Output) | – |
| Operating Voltage (Input) | – |
| Operating Voltage (Output) | to 250VAC / to 80VDC; to 60VAC / to 60VDC |
| Input Circuit | – |
| Output Circuit | Semiconductor relay output (type-A contact) |
| Built-in Power Supply | – |
Supported OS
| Supported OS | – |
|---|
System specifications
| Model | Description | |
|---|---|---|
| CPU Module | Watchdog Timer | Module, Communication (Programmable) |
| Display | Type | I/O LED Indicator |
| Isolation | Intra-module Isolation | 2000 VDC |
| EMS Protection | EFT (IEC 61000-4-4) | ±4 kV for 8 Relay and Power Line ±2 kV for RS-485 Port Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
|
| LED Indicators | Status | 1 x Power and Communication 7 x Relay Output |
| COM Ports | Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps | |
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1) | |
| Protocol | Modbus RTU | |
| Power | Reverse Polarity Protection | Yes |
| Input Range | +10 ~ +30 VDC | |
| Consumption | 0.9 W | |
| Mechanical | Dimensions (mm) | 72(W) x 122(L) x 34 (H) |
| Installation | DIN-Rail Mounting | |
| Environment | Operating Temperature | -25 -+75 °C |
| Storage Temperature | -40 -+85°C | |
| Humidity | 10 -95% RH, Non-condensing | |
| Standard | VCCI Class A, FCC Class A, CE Marking (EMC Directive Class A, RoHS Directive), UKCA |
