- (discontinued) CONTEC Industrial 8 Ports Unmanaged Gigabit PoE Ethernet Switching HUB SH-9008AT-POE
PoE power supply function based on IEEE802.3af, IEEE802.3at. Eight of 1000BASE-T ports are equipped
This product is an 8-port industrial switching HUB which conforms to IEEE802.3ab (1000BASE-T) /IEEE802.3u (100BASE-TX) /IEEE802.3 (10BASE-T) standard, and it is capable of PoE power supply based on IEEE802.3af, IEEE802.3at. By using a LAN cable of category 5 or greater, power can be supplied to PoE devices that conform to IEEE802.3af and IEEE802.3at.
The functions including jumbo frames, AutoMDI / MDI-X, and auto negotiations are within. Due to the fan-less design, this hub can be used in the places where the quietness or a longer lifetime of the product is desired. Furthermore, a metal housing with excellent heat dissipation enables the product to be operated in the temperature between -35°C and +70°C. The product can be set on 35mm-DIN rail or on the wall with the supplied brackets.

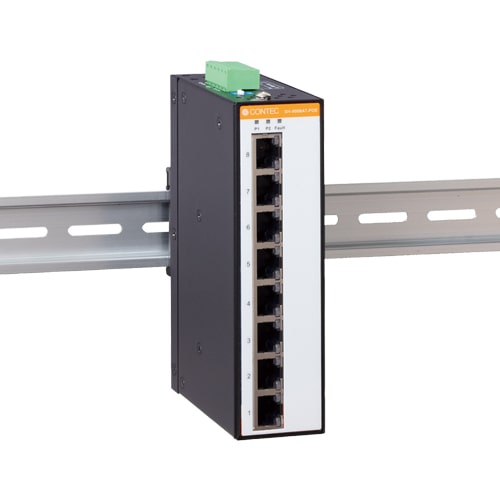

Industrial 8 Ports Unmanaged Gigabit PoE Ethernet Switching HUB
Model:
SH-9008AT-POE
Maker:
CONTEC Co., Ltd.
Features
- PoE power supply function based on IEEE802.3af, IEEE802.3at
Power can be supplied to PoE devices that conform to IEEE802.3af, IEEE802.3at. Up to 30W per port and up to 120W * for all ports can be powered.
*There is a limit to supply the power depending on the power input voltages. - Eight of 1000BASE-T ports are equipped
The product has eight ports which conform to IEEE802.3ab(1000BASE-T) / IEEE802.3u(100BASE-TX)/ IEEE802.3(10BASE-T). Due to the fan-less design, this hub can be used in the places where the quietness or a longer lifetime of the product is desired. Furthermore, a metal housing with excellent heat dissipation enables the product to be operated in the temperature between -35 °C and +70 °C. - Capable of operating in a wide-ranged power inputs, and features dual power support
The product is capable of operating in a wide range of DC power between 12 and 57VDC. Moreover, dual power supports the product to continue to work even if one of the power supplies fails. Failures of the power supply can be seen with the LED on the front panel or the failure detection relay circuit. - DIN rail mounting or Wall installation
With the supplied brackets, the product can be set on a 35mm-DIN rail or on the wall.
Specifications
HUB and PoE Injector
| HUB Function | 10M/100M/1000M switch |
|---|---|
| Number of Ports | x8 (10T/100TX/1000T) |
| Number of sfp Ports | |
| PoE Function | IEEE802.3at standard; IEEE802.3af standard |
System specifications
| Item | Specifications |
|---|---|
| Ethernet standards | IEEE802.3/IEEE802.3u/IEEE802.3ab/IEEE802.3af/IEEE802.3at *1 -compliant |
| Data transfer rate | 10Mbps/100Mbps/1000Mbps (auto-negotiation) |
| Communications method | All ports: Full/Half duplex (auto-negotiation) |
| Flow control | Full Duplex: IEEE802.3x compliant flow control Half Duplex: Back pressure |
| Number of effective ports | 8 |
| Switching method | Store and forward |
| Address table | 4,096 entries |
| Jumbo frame | 9Kbyte |
| Buffer capacity | 192Kbyte |
| Aging time | 300 seconds |
| LED indicator | POWER x 2 (Green), PWR Failure(Orange), LINK/ACT x 8 (Green/Orange), PoE x 8 (Green) |
| DIP switch | Power failure detection function switch for PWR-1 and PWR-2 |
| Power supply voltage | 12V -54VDC±5% |
| FG pin | Power supply connector equipped with FG pin |
| Power consumption(Max.) | When PoE is not in use: 12V 0.47A, 24V 0.24A, 57V 0.10A When PoE is in use: 12V 7.56A, 24V 7.22A, 57V 3.04A |
| Physical dimensions (mm) | 41(W)×95(D)×144(H) (exclusive of protrusions) |
| Weight | 700g |
| Module installation method | Mounting on DIN rail or on the wall |
