Products
The products listed here are for overseas markets, not for Japan domestic.
- Information Equipment / Software
- Industrial PC

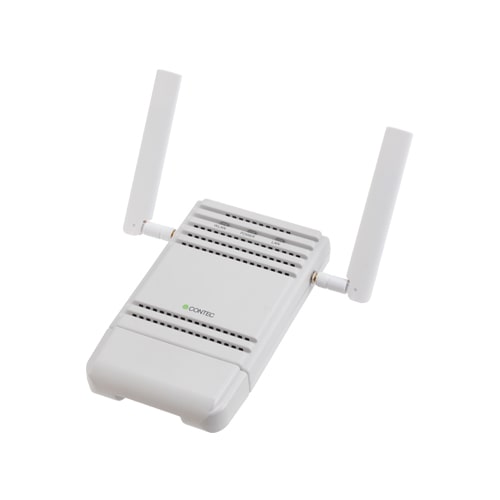

- CONTEC IEEE802.11ax/ac/n/a/b/g Wireless LAN Access Point with External Antenna FXA5020
Wi-Fi 6 (IEEE 802.11ax) compliant high-speed, low-latency communicati Mesh Wi-Fi network
The FXA5020 is a wireless LAN access point that complies with IEEE802.11ax/ac/n/a/b/g wireless LAN standard and supports wide input power (5 - 30 VDC) and PoE. It has various functions such as smart roaming (duplex) and mesh Wi-Fi network support, and offers advanced security, stable communication, and excellent maintainability. By switching modes, it can be used not only as an access point (master station) but also as a station (slave station) or repeater. It can be used as an access point or repeater. In Dual Station Mode, you can use both 5 GHz and 2.4 GHz interfaces simultaneously. Light weight and compact design enables a smart installation with included magnets and tapping screws. This product is supported with a connector protection cover and a security slot for theft proof.
* Only Japanese model support the 6GHz band.
IEEE802.11ax/ac/n/a/b/g Wireless LAN Access Point with External Antenna
Model:
FXA5020
Maker:
CONTEC Co., Ltd.
Features
- Wi-Fi 6E (IEEE 802.11ax) compliant high-speed and low-latency communication
Effective throughput is greatly improved, and data transmission and reception is 2.8 times faster (2.4Gbps) than Wi-Fi 5 (800Mbps). New technologies such as OFDMA(Orthogonal Frequency Division Multiple Access) and MU-MIMO (Multi-User MIMO) have been implemented, greatly improving throughput degradation and delays that occur when many satellite stations are used simultaneously. The use of the conventional 2.4 GHz and 5 GHz bands reduces radio interference, enabling a faster and more stable communication environment. In addition, the 2.4 GHz and 5 GHz bands can be used simultaneously. - Mesh Wi-Fi network
The wireless mesh network function allows a single network group (ESSID) to be configured by multiple access points in a mesh pattern. Even if a failure occurs in any part of the communication path, the network can be built resistant to failures, such as automatically securing the best alternative path and maintaining communication connections. Wireless connections between access points make it easy to expand the communication area by simply increasing the number of access points. - Smart Roaming (Duplex)
Dual Station Mode is installed to extend communication from one wireless connection to two wireless connections. If one wireless connection is lost, data communication will not be lost while roaming because another wireless connection is available. Contec’s unique tuning for “uninterruptible wireless LAN” enables high-dimensional roaming. - This product can be switched between access point, station (client), and repeater operation modes
By switching the operation mode, you can use this product as not only an access point but also as a station (client) and a repeater. You can use this product as a wireless LAN converter for a wired LAN device. You can also use both 5 GHz and 2.4 GHz interfaces simultaneously in Dual Station Mode. - The proprietary encryption technology “WSL” that is available along with WPA3/WPA2/WPA and WEP
In addition to the certifications for advanced security standards WPA3/WPA2/WPA and IEEE802.1X, this product is also equipped with our proprietary encryption technology “WSL”, which can be used at the same time as these certifications. MAC address filtering and ESSID hiding are also supported. - Suitable for flat, wall, ceiling, and other installation environments
With PoE power, you can install it in places that are hard to reach from a power outlet. The included magnets, tapping screws, and optional mounting brackets make it possible to install it in places with good visibility and easy access to radio waves (walls, ceilings, etc.).
Specifications
Wireless LAN Module
| Type | Access point; Staition; Repeater |
|---|---|
| Supported Frequency Band | 6GHz; 2.4GHz / 5GHz simultaneous |
| Supported Wireless LAN Standards | IEEE 802.11ax; IEEE 802.11ac; IEEE 802.11n; IEEE 802.11a; IEEE 802.11g; IEEE 802.11b |
| PoE Compliant | IEEE802.3af standard |
-
*Only Japanese model support the 6GHz band.
* Only Japanese model support the 6GHz band.
