- CONTEC IEEE802.11ax/ac/n/a/b/g Embedded Wireless LAN Board FXE5000
Wi-Fi 6 (IEEE 802.11ax) compliant high-speed, low-latency communicati Mesh Wi-Fi network

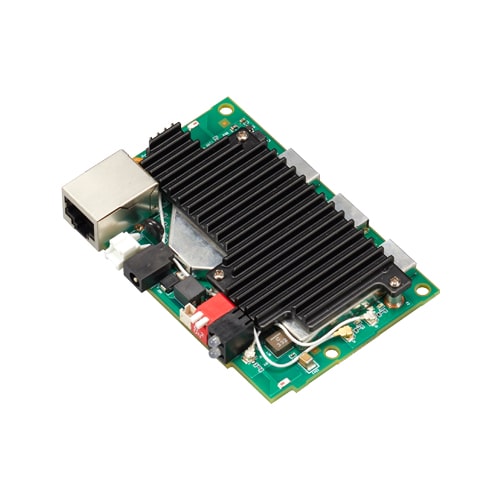

The FXE5000 is a built-in type wireless LAN board that is compatible with Wi-Fi 6E (IEEE 802.11ax) and wide input power supply (5 - 30 VDC). It has various functions such as smart roaming (duplex) and mesh Wi-Fi network support. By simply connecting a LAN cable to the LAN port (RJ-45 connector) of a LAN device, you can turn the device into a wireless LAN device with advanced security, stable communication, and excellent maintainability using the latest standards, regardless of the OS or CPU. By switching modes, it can be used not only as an access point (master station) but also as a station (slave station) or repeater. It can be used as an access point or repeater. In Dual Station Mode, you can use both 5 GHz/6 GHz and 2.4 GHz interfaces simultaneously.
* Only Japanese model support the 6GHz band.
IEEE802.11ax/ac/n/a/b/g Embedded Wireless LAN Board
Model:
FXE5000
Maker:
CONTEC Co., Ltd.
Features
- Form Factor
Type: ATX - Software Support
Supported OS: Windows 11 IoT Enterprise LTSC 2024 - Core System
CPU Generation (Development code): Bartlett Lake-S; 14th Gen. (Raptor Lake-S Refresh); 13th Gen. (Raptor Lake-S); 12th Gen. (Alder Lake-S)
Processor: Intel 14th Gen. Core Processor; Intel 13th Gen. Core Processor; Intel 12th Gen. Core Processor
CPU socket: LGA1700
Memory: up to 128GB
RAS: Real-time clock (RTC); Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer
GPU: –
AI Performance: –
Security: – - Interface
Video: 1x DisplayPort; 1x HDMI; 1x Analog RGB
LAN: 2x 2500BASE-T/1000BASE-T/100BASE-TX/10BASE-T; 1x 1000BASE-T/100BASE-TX/10BASE-T
Wireless: –
Audio: 1x Line out; 1x Line in; 1x Mic-in
I/O: 6x USB3.2 Gen2 (10Gbps); 1x RS-232C/422A/485
Memory card: – - Internal Interface
Video: –
LAN: –
Audio: –
I/O: 2x USB3.2 Gen1 (5Gbps); 6x USB2.0; 5x RS-232C
Power connector: 1x 24-pin ATX; 1x 8-pin ATX 12V - Expansion Slot
Expansion bus: 1x PCI Express 5.0(x16); 1x PCI Express(x8); 3x PCI Express(x4); 2x PCI
Drive bay: – - Power
Input voltage: – - Environment
Operating temperature: 0 to 60°C (32 to 140°F)
Storage temperature: -20 to 80°C (-4 to 176°F)
Standards & Certifications: CE; FCC Class B; UKCA
Specifications
Wireless LAN Module
| Type | Access point; Staition; Repeater |
|---|---|
| Supported Frequency Band | 6GHz; 5GHz; 2.4GHz / 5GHz selectable; 2.4GHz |
| Supported Wireless LAN Standards | IEEE 802.11ax; IEEE 802.11ac; IEEE 802.11n; IEEE 802.11a; IEEE 802.11g; IEEE 802.11b |
| PoE Compliant | – |
-
*Only Japanese model support the 6GHz band.
