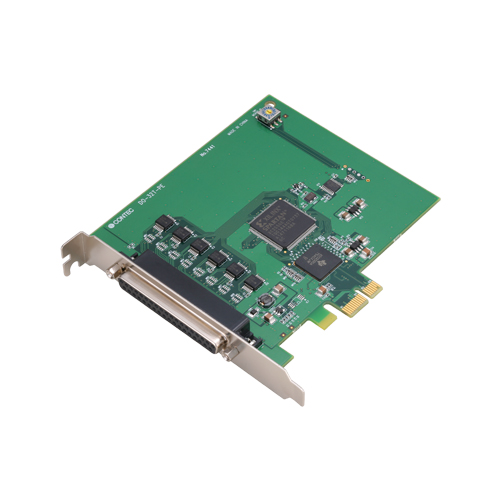

- CONTEC Digital Output PCI Express Card 32ch (Isolated 12 - 24VDC) DO-32L-PE
Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type). Opto-coupler bus isolation
This product is a PCI Express bus-compliant interface board for output of digital signals. This product can output digital signals at 12 - 24VDC. DO-64L-PE features 64 opto-coupler isolated open-collector outputs (current sink type). In addition, output transistor protection circuit (surge voltage protection and overcurrent protection). Windows/Linux device driver is supported with this product.
Digital Output PCI Express Card 32ch (Isolated 12 - 24VDC)
Model:
DO-32L-PE
Maker:
CONTEC Co., Ltd.
Features
- Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type)
DO-32L-PE has the opto-coupler isolated open-collector output 32ch (supporting current sink output) whose response speed is 200μsec. Common terminal provided per 16ch, capable of supporting a different external power supply Supporting driver voltages of 12 – 24 VDC for I/O - Opto-coupler bus isolation
As the PCI Express bus (PC) is isolated from the input and output interfaces by opto-couplers, this product has excellent noise performance. - You can use all of the input signals as interrupt events.
You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge. - Windows/Linux support device driver
Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided. - This product has a digital filter to prevent input signals from carrying noise or a chattering.
This product has a digital filter to prevent input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software. - Output circuits include zener diodes for surge voltage protection and overcurrent protection circuit.
Zener diodes are connected to the output circuits to protect against surge voltages. Similarly, vercurrent protection circuits are fitted to each group of 8ch outputs.
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI Express |
| Size | Short Size |
| Used Connector | D-SUB 37-pin (Female) |
Digital I/O
| Input Channels | – |
|---|---|
| Output Channels | 32-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | – |
| Response Time (Output) | 200μsec (max.) |
| Operating Voltage (Input) | – |
| Operating Voltage (Output) | 12 to 24VDC |
| Input Circuit | – |
| Output Circuit | Opto-isolated open-collector output (current sink type) |
| Built-in Power Supply | – |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specifications | |
|---|---|---|
| Output | Type | Open Collector Output (Negative logic *1) |
| Number of Channels | 32ch (One common power supply per 16 channels) | |
| Output rated voltage | 30VDC (Max.) | |
| Output rated current | 40mA/channel (Max.) | |
| Response time | 200nsec within | |
| Common | External supply capable current | 5VDC 350mA(Max.) |
| Connecting distance | 1.5m(Typ.)(depending on wiring environment) | |
| I/O address | Any 32-byte boundary | |
| Interruption level | Not used | |
| Boards in one system | Maximum of 16 boards can be install in a same system. | |
| Power consumption | 3.3VDC 550mA(Max.) | |
| Bus specification | PCI Express Base Specification Rev. 1.0a x1 | |
| Dimension (mm) | 121.69(L)×110.18(H) | |
| Weight | 100g | |
*1 Data “0” and “1” correspond to the High and Low levels, respectively.
