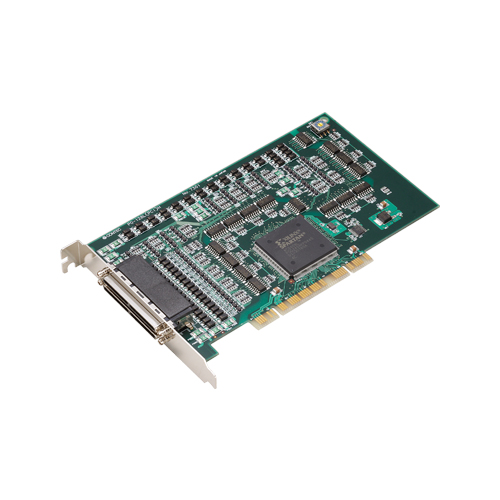

- CONTEC Digital Output PCI Card 128ch (Isolated 12 - 24VDC) PO-128L(PCI)H
Opto-coupler isolated input (compatible with current sink output) and opto-coupler isolated open-collector output (current sink type). Opto-coupler bus isolation
This product is a PCI bus-compliant interface board used to provide a digital signal I/O function on a PC. This product can output digital signals at 12 - 24VDC. This product features 128 opto-coupler isolated open-collector outputs. In addition, output transistor protection circuit (surge voltage protection and overcurrent protection). Windows/Linux driver is supported with this product. Possible to be used as a data recording device for LabVIEW, with dedicated libraries.
Digital Output PCI Card 128ch (Isolated 12 - 24VDC)
Model:
PO-128L(PCI)H
Maker:
CONTEC Co., Ltd.
Features
- Opto-coupler isolated input (compatible with current sink output) and opto-coupler isolated open-collector output (current sink type)
PO-128L(PCI)H has the 128ch of opto-coupler isolated open-collector output (current sink type) whose response speed is 200µsec. Common terminal provided per 16channels, capable of supporting a different external power supply. Supporting driver voltages of 12 – 24 VDC for I/O. - Opto-coupler bus isolation
As the PC is isolated from the input and output interfaces by optocouplers, this product has excellent noise performance. - Windows/Linux compatible driver libraries are supported.
Using the digital I/O driver makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided. - The output circuit, has a built-in Zener diode and the overcurrent protection circuit of the surge voltage protection.
Zener diodes are connected to the output circuits to protect against surge voltages. In addition, the output circuit, it attaches the overcurrent protection circuit at the output 8-channel unit. The output rating is max. 35VDC, 100mA per channel.
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI |
| Size | Short Size |
| Used Connector | 2x 0.8mm-pitch 100-pin (Female) |
Digital I/O
| Input Channels | – |
|---|---|
| Output Channels | 128-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | – |
| Response Time (Output) | 200μsec (max.) |
| Operating Voltage (Input) | – |
| Operating Voltage (Output) | 12 to 24VDC |
| Input Circuit | – |
| Output Circuit | Opto-isolated open-collector output (current sink type) |
| Built-in Power Supply | – |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specifications | ||
|---|---|---|---|
| Output | Type | Optocoupler Isolated Open Collector Output (current sinking type) (Negative logic *1) | |
| Number of Channels | 128 channels (16 channels share a negative common) | ||
| Rate | Voltage | 35VDC(Max.) | |
| Current | 100mA/channel (Max.) | ||
| Residual voltage with output on | 0.5V or less (Output current ≤50mA), 1.0V or less (Output current ≤100mA) | ||
| Surge protector | Zener diode RD47FM(NEC) or equivalent | ||
| Response time | 200µsec(Max.) | ||
| Common | |||
| I/O address | Any 32-byte boundary | ||
| Interrupt level | not use | ||
| Boards in one system | Maximum of 16 boards can be install in a same system. | ||
| Isolated voltage (I/O-to-system) *2 | 250Vrms | ||
| External power supply | 12 – 24VDC(±10%) | ||
| Power consumption | 5VDC 700mA(Max.) | ||
| Operating condition | 0 – 50°C, 10 – 90%RH (No condensation) | ||
| Connecting distance | 50m(Typ.)(depending on wiring environment) | ||
| PCI bus specification | 32bit, 33MHz, Universal key shapes supported *3 | ||
| Dimension (mm) | 176.41(L) x 105.68(H) *4 | ||
| Weight | 215g | ||
*1 Data “0” and “1” correspond to the High and Low levels, respectively.
*2 There was no electrical breakdown after having impressed the specification voltage with AC50/60Hz and DC for one minute to the insulation part.
*3 This board requires power supply at +5V from an expansion slot (it does not work on a machine with a +3.3V power supply alone).
*4 The size of board No.7231 is 176.41 (L) x 106.68 (H) mm.
