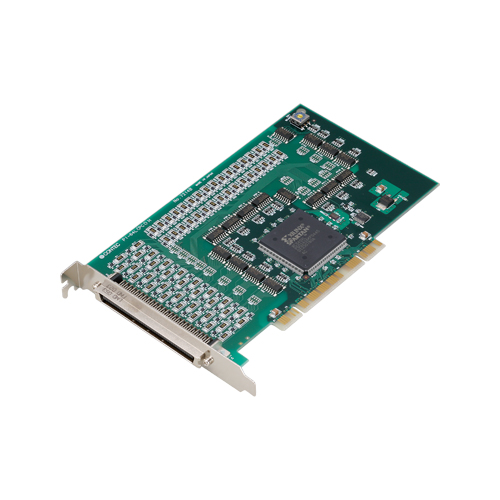

- CONTEC Digital Input PCI Card 64ch (Isolated 12 - 24VDC) PI-64(PCI)H
It can respond to a common independently different external power supply because of the common composition of a 16-point unit.
This product is a PCI bus-compliant interface board for input of digital signals. This product can input digital signals at 12 - 24VDC. PI-64L(PCI)H features 64 opto-coupler isolated inputs (supporting current sink output). You can use 32 input signals as interrupt inputs. In addition, the digital filter function to prevent wrong recognition of input signals is provided. Windows/Linux device driver is supported with this product.
Digital Input PCI Card 64ch (Isolated 12 - 24VDC)
Model:
PI-64(PCI)H
Maker:
CONTEC Co., Ltd.
Features
- It can respond to a common independently different external power supply because of the common composition of a 16-point unit.
- Since the PCI bus (personal computer) and the input-and-output interface are isolated by the photo-coupler, it excels in noise-protection nature.
- 32 points of an input signal can be used as an interruption input. Moreover, the edge of the input signal which generates interruption can also be chosen.
- It has the digital filter function for preventing the incorrect input by the noise or the chattering.
- PI-64L(PCI)H and PI-64L(PCI) are connector pin compatibles.
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI |
| Size | Short Size |
| Used Connector | 1.27mm-pitch 96-pin (Male) |
Digital I/O
| Input Channels | 64-ch |
|---|---|
| Output Channels | – |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200μsec (max.) |
| Response Time (Output) | – |
| Operating Voltage (Input) | 12 to 24VDC |
| Operating Voltage (Output) | – |
| Input Circuit | Opto-isolated input (for sink current output) |
| Output Circuit | – |
| Built-in Power Supply | – |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
*The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specifications | |
|---|---|---|
| Input | Type | Opto-Isolated Input(for current sinking output) (Negative logic *1) |
| Number of Channels | 64ch(32 channels available for interrupts) (One common power supply per 16 channels) | |
| Input resistance | 4.7kΩ | |
| Current required to turn ON | 2.0mA or more | |
| Current required to turn OFF | 0.16mA or less | |
| Interrupts | Combine 32 interrupt signals to one interrupt request signal as the INTA. Either rising edge or falling edge of input signal can generate interrupt. |
|
| Response time | 200µsec within | |
| Common | ||
| Connecting distance | 50m(Typ.)(depending on wiring environment) | |
| I/O address | Any 32-byte boundary | |
| Interruption level | 1 level use | |
| Boards in one system | Maximum of 16 boards can be install in a same system. | |
| Isolated voltage | 500Vrms | |
| External circuit power supply | 12 – 24VDC (±10%) | |
| Power consumption | 5VDC 250mA(Max.) | |
| PCI bus specification | 32bit, 33MHz, Universal key shapes supported *2 | |
| Dimension (mm) | 176.41(L) x 105.68(H) | |
| Weight | 215g |
*1 Data “0” and “1” correspond to the High and Low levels, respectively.
*2 This product requires power supply at +5 V from an expansion slot (it does not work on a machine with a +3.3-V power supply alone).
