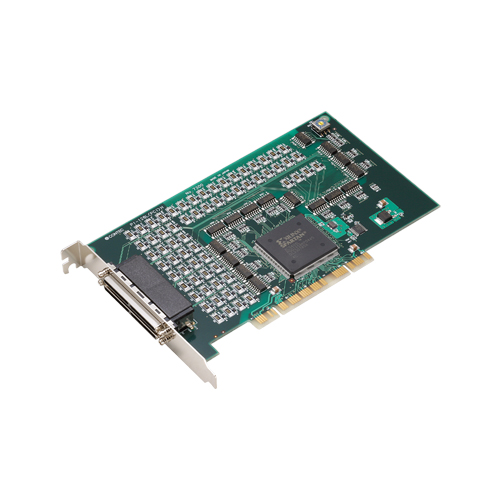

- CONTEC Digital Input PCI Card 32ch (Isolated 12 - 24VDC) PI-128L(PCI)H
It can respond to a common independently different external power supply because of the common composition of 16-point unit.
This board is a PCI-compliant interface board for input/output of digital signals. This board can input the digital signal of 12 - 24VDC. PI-128L(PCI)H can input up to 128 channels. With the Windows version, the Linux version driver (API-PAC(W32)).
Digital Input PCI Card 32ch (Isolated 12 - 24VDC)
Model:
PI-128L(PCI)H
Maker:
CONTEC Co., Ltd.
Features
- A different external power supply can be used for each common pin as it is shared by 16 channels.
- Opto-coupler used to electrically isolated input signal interface from the PCI bus, offering good noise immunity.
- Capable of using up to 16 channels of input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal.
- Digital filtering that prevents input signal noise and chattering.
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI |
| Size | Short Size |
| Used Connector | 2x 0.8mm-pitch 100-pin (Female) |
Digital I/O
| Input Channels | 128-ch |
|---|---|
| Output Channels | – |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200μsec (max.) |
| Response Time (Output) | – |
| Operating Voltage (Input) | 12 to 24VDC |
| Operating Voltage (Output) | – |
| Input Circuit | Opto-isolated input (for sink current output) |
| Output Circuit | – |
| Built-in Power Supply | 12VDC |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
*The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specifications | |
|---|---|---|
| Input | Type | Opto-Isolated Input(for current sinking output) (Negative logic *1) |
| Number of Channels | 128ch (16 channels available for interrupts) (One common per 16 channels) | |
| Input resistance | 4.7kΩ | |
| Current required to turn ON | 2.0mA or more | |
| Current required to turn OFF | 0.16mA or less | |
| Interrupts | Combine 16 interrupt signals to one interrupt request signal as the INTA. Either rising edge or falling edge of input signal can generate interrupt. |
|
| Response time | 200μsec within | |
| Common | ||
| Connecting distance | 50m(Typ.)(depending on wiring environment) | |
| I/O address | Any 32-byte boundary | |
| Interruption level | 1 level use | |
| Boards in one system | Maximum of 16 boards can be install in a same system. | |
| Isolated voltage between channels | 250Vrms | |
| Isolated voltage (I/O-to-system) *2 | 2500Vrms | |
| External circuit power supply | 12 – 24VDC (±10%) | |
| Power consumption | 5VDC 500mA(Max.) | |
| PCI bus specification | 32bit, 33MHz, Universal key shapes supported *3 | |
| Dimension (mm) | 176.41 (L) x 105.68(H) *4 | |
| Weight | 215g |
*1 Data “0” and “1” correspond to the High and Low levels, respectively.
*2 When the internal power supply is used, the input section consumes a maximum of 42 mA and the output channel switching section consumes a maximum of 20 mA. In this case, therefore, the output current to be supplied from the board is 178 mA.
*3 This product requires power supply at +5 V from an expansion slot (it does not work on a machine with a +3.3-V power supply alone).
*4 The size of board No.7300 is 176.41 (L) x 106.68 (H) mm.
