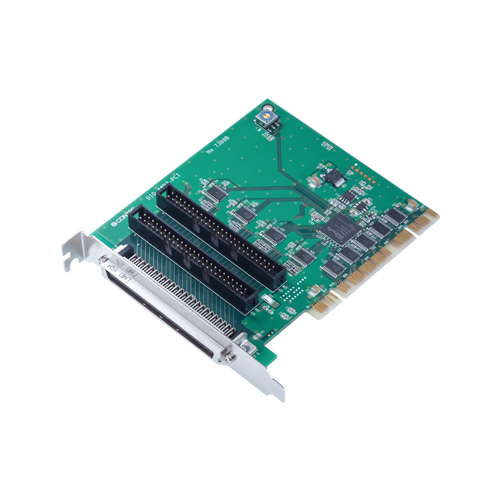

- CONTEC Digital I/O PCI Card Bi-directional 48ch (Non-isolated 5VDC-TTL) DIO-48D2-PCI
This board can be used to input/output 48 points bi-directional digital corresponding to the equivalence to the i8255 mode 0. You can use up to 48channels of the input signals as interrupt events.
This product is a PCI bus-compliant interface board used to provide a digital signal I/O function on a PC.
There are 64 unisolated TTL level inputs and 64 unisolated open-collector outputs.
You can use 16 input signals as interrupt inputs. In addition, the digital filter function to prevent wrong recognition of input signals is provided.
Digital I/O PCI Card Bi-directional 48ch (Non-isolated 5VDC-TTL)
Model:
DIO-48D2-PCI
Maker:
CONTEC Co., Ltd.
Features
- Unisolated TTL level input, unisolated open-collector output
It has the unisolated TTL level inputs 64channels, and the unisolated open collector outputs 64channels whose response speed is 200nsec. Output rating : max 30VDC, 40mA per pin. - You can use 16 input signals as interrupt request signals.
You can use 16 channels of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge. - This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
This product has a digital filter to prevent input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
Specifications
Add-on Module
| Series | |
|---|---|
| Bus Specification | PCI |
| Size | Short Size |
| Used Connector | 1.27mm-pitch 96-pin (Male); 2x Pin Header 50-pin (Male) |
Digital I/O
| Input Channels | – |
|---|---|
| Output Channels | – |
| Bi-directional I/O Channels | 48-ch |
| Response Time (Input) | 200nsec (max.) |
| Response Time (Output) | 200nsec (max.) |
| Operating Voltage (Input) | 5VDC-TTL |
| Operating Voltage (Output) | 5VDC-TTL |
| Input Circuit | Non-isolated TTL level input (Positive logic) |
| Output Circuit | Non-isolated TTL level output (Positive logic) |
| Built-in Power Supply | – |
Supported OS
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux |
|---|
* The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
System specifications
| Item | Specification | ||
|---|---|---|---|
| I/O | I/O format | UnisolatedTTL-level input (Positive logic) | |
| Number of I/O channels | 48 channels (all available for interrupts) | ||
| Pull-up resistance | 10kΩ | ||
| Interrupt | 48 interrupt input signals are arranged into a single output of interrupt signal INTA. An interrupt is generated at the rising edge (LOW-to-HIGH transition). |
||
| Response time | Within 200nsec | ||
| Rated output current | IOL=24mA (Max.) IOH=-15mA (Max.) | ||
| Common | I/O address | Any 32-byte boundary (Common to I/O part) | |
| Power consumption (Max) | 5VDC 600mA | ||
| Allowable distance of signal extension | Approx. 1.5m (depending on wiring environment) | ||
| Bus specification | PCI (32bit, 33MHz, Universal key shapes supported *2) | ||
| Dimension (mm) | 121.69(L) x 105.68(H) *3 | ||
| Connector | CN1 | 96 pin half pitch connector [M (male) type] PCR-E96LMD+ [mfd. by HONDA TSUSHIN KOGYO CO., LTD.] or equivalent to it |
|
| CN2,3 | 50 pin IC pitch pin header connector PS-50PE-D4T1-B1A [mfd.by JAE] or equivalent to it |
||
| Weight | 130g | ||
| Standard | VCCI Class A, CE Marking (EMC Directive Class A, RoHS Directive), UKCA | ||
*1 Data “0” and “1” correspond to the High and Low levels, respectively.
*2 This board requires power supply at +5V from an expansion slot (it does not work on a machine with a +3.3V power supply alone).
*3 Board No.7388, for the board of the 7388A is the 176.41 (L) × 106.68 (H).
