intdash Automotive Pro CAN/CAN-FD DAQ Bundle is a package solution for remote measurement supporting CAN/CAN-FD for the automotive industry. It’s a one-stop solution that consists of an in-vehicle edge computer system, an interface device to acquire CAN data, a cloud system, and a data visualization and management application.
Innovative improvements in data acquisition workflow

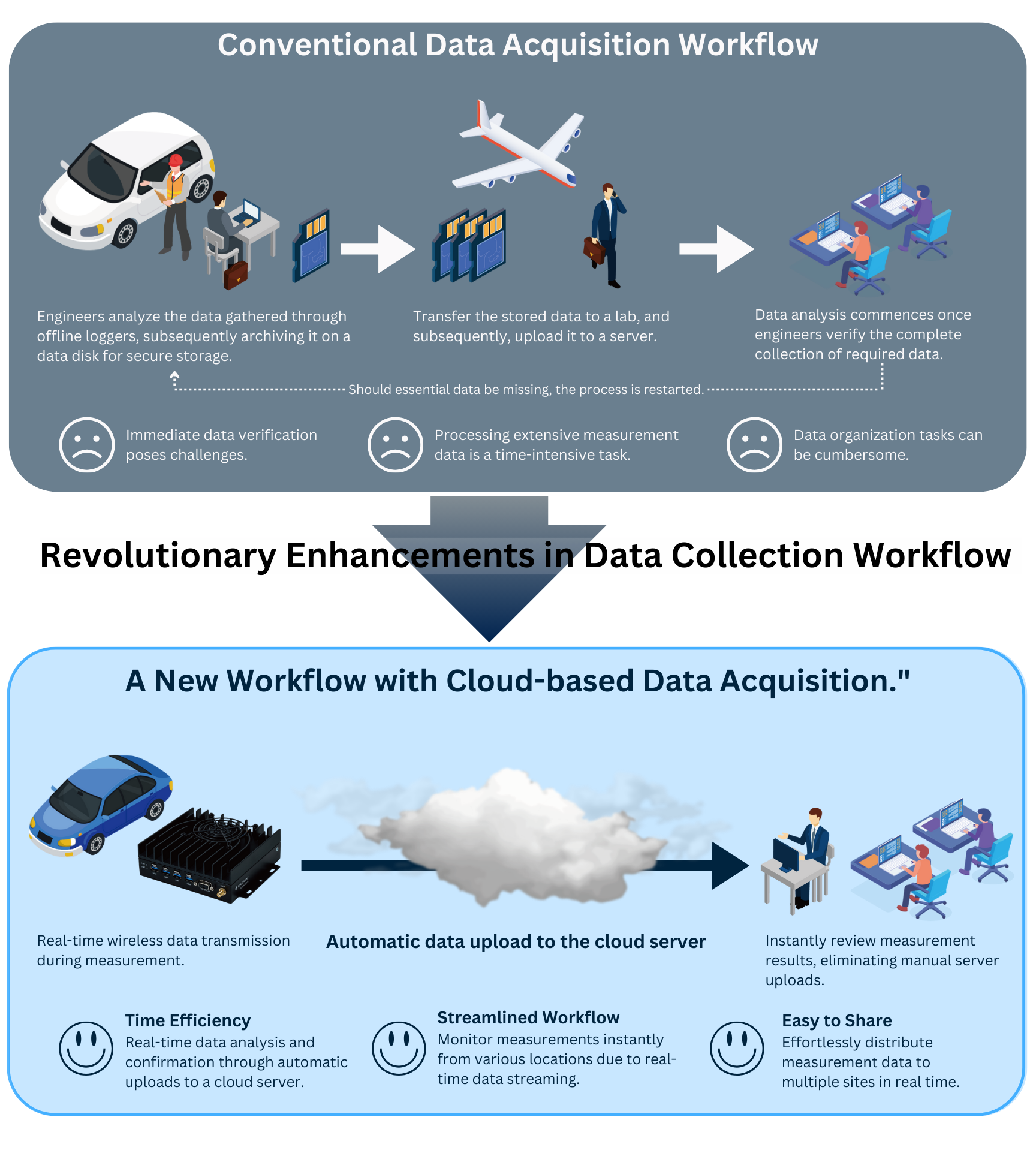

In conventional workflow using data loggers, data from measurement devices is stored and managed on data storage media like HDD, and the media must be retrieved from each site. Before starting the data analysis, this workflow also requires post-processing, such as aligning time stamps, to copy data from a media to a PC, and to facilitate the use of data from multiple sources.
intdash Automotive Pro CAN/CAN-FD DAQ bundle is an innovative solution that reduces the test time and its workload. This solution integrates the time stamps of multiple measurement devices such as CAN, GPS, and video data at the time of measurement and automatically uploads these data to a cloud server in real-time. This functionality saves time and effort in disk retrieval. It also eliminates the need for post-processing time. In this way, the data can be accessed simultaneously from multiple locations, contributing to improved work efficiency.
intdash Automotive Pro CAN/CAN-FD DAQ Bundle solves the following challenges in data measurement for automotive development
Data Acquisition Is time-consuming
Cloud Integration: Instantly send and aggregate data in real time, bypassing traditional, time-consuming collection methods.
It takes time & effort to organize data
Streamlined Data Management: The in-vehicle device transmits data with synchronized time stamps, offering readily usable data and significantly reducing organization time and effort.
Implement real-time monitoring during the measurement process
Live Data Access: Monitor ongoing measurements through live streaming. Our web-based visualization application allows for browser viewing without requiring any specialized software installation.
Share data across multiple locations at once
Cloud-Enabled Distribution: With our cloud-based system, share data seamlessly across multiple locations, even during active measurements.
Cost Reduction Benefits of Implementation
Workflow Optimization for Cost Reduction
• Substantially reduce the temporal cost from data collection to utilization, from weeks to over a month.
• Decrease the expenses involved in data organization.
• Lower the operational costs of data collection, especially beneficial for overseas and multiple locations.
Cost Savings in System Implementation
• Avoid the expenses and complexities of designing and developing a cloud system from scratch.
• Develop in-house hardware, software, and cloud services tailored for vehicle data measurement.
• aptpod system, compared to assembling high-cost general-purpose equipment, offers significantly better cost efficiency.
■Terminal Systems

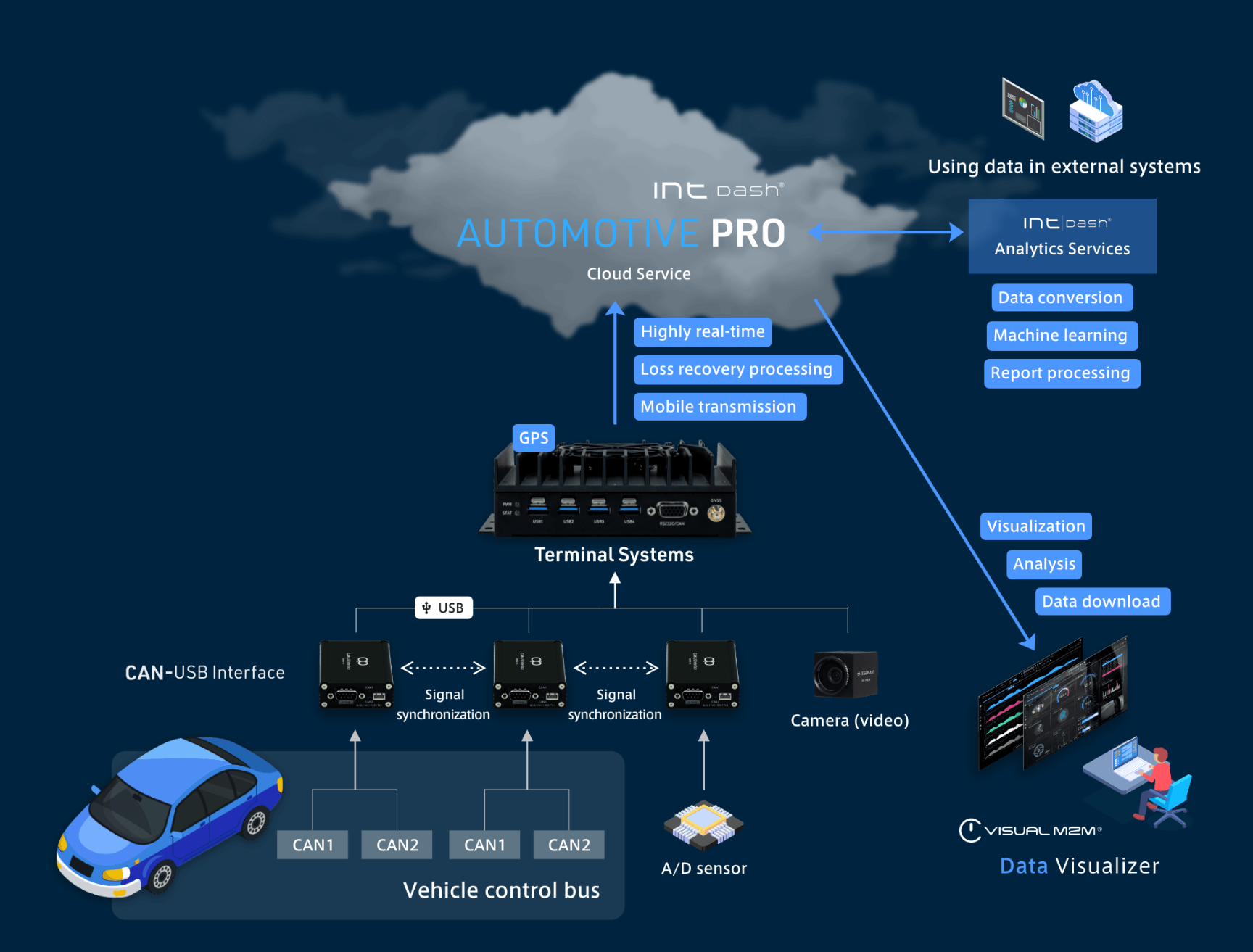

In-vehicle terminal system for remote, automatic, and real-time data measurement

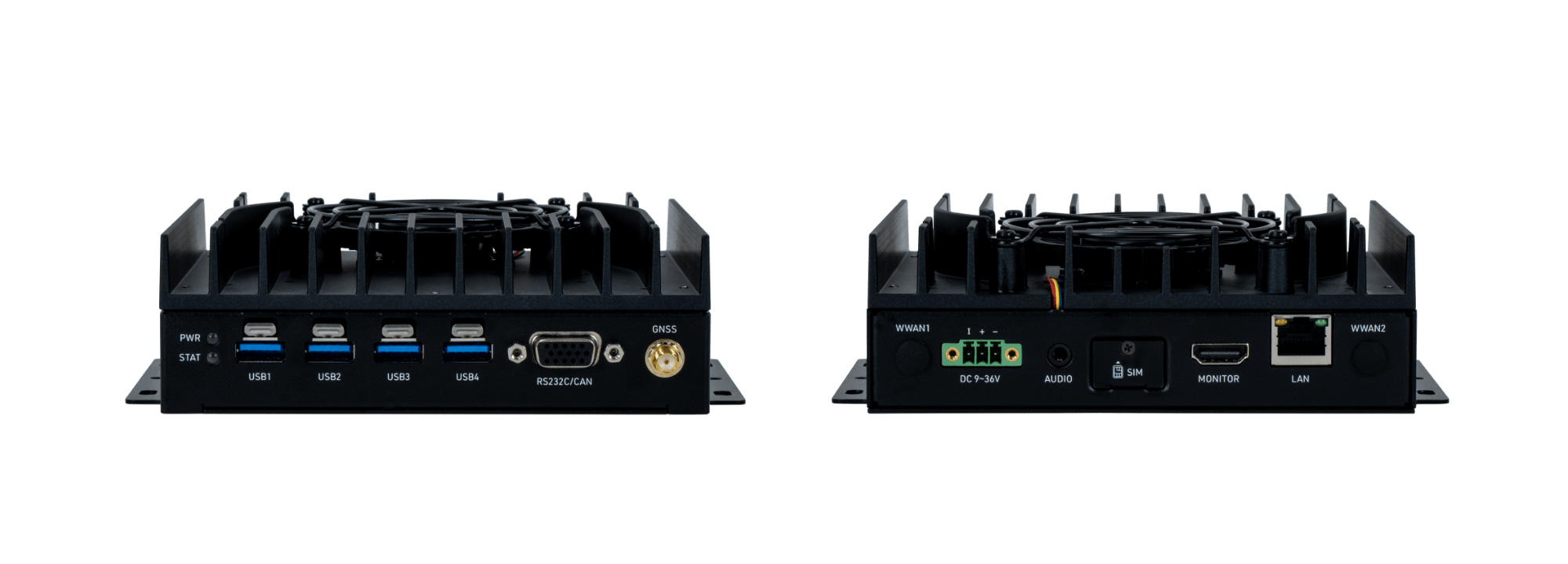

EDGEPLANT T1 APPLIANCE (NVIDIA® Jetson™ TX2)
• All-in-one design for IoT with built-in GPS.
• Highly reliable hardware that can be used as an in-vehicle embedded computer.
• Wide power supply voltage specification (9 to 36V) allows safe use in commercial vehicles and construction machinery as well as passenger cars.
• Compliant with EMC standards (E-mark) required for in-vehicle equipment, suppressing noise propagation to peripheral devices and vehicle power • systems and achieving high immunity performance.
• Wide operating temperature range (-20°C to +65°C).
• Multiple camera inputs and encoding processing are possible.
Utilities to support measurements

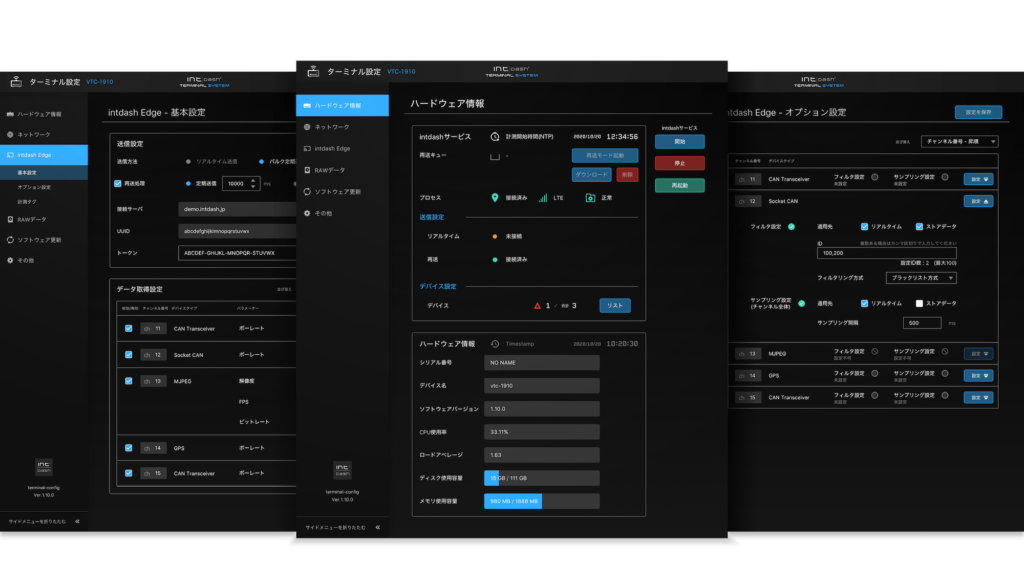

Terminal Config
• Browser-based setting tool
• Wi-Fi or LAN connection from the PC to the in-vehicle terminal
• Status checks of in-vehicle terminal
• Sampling settings for sending data
• Filter settings for sending data
■CAN-USB Interface

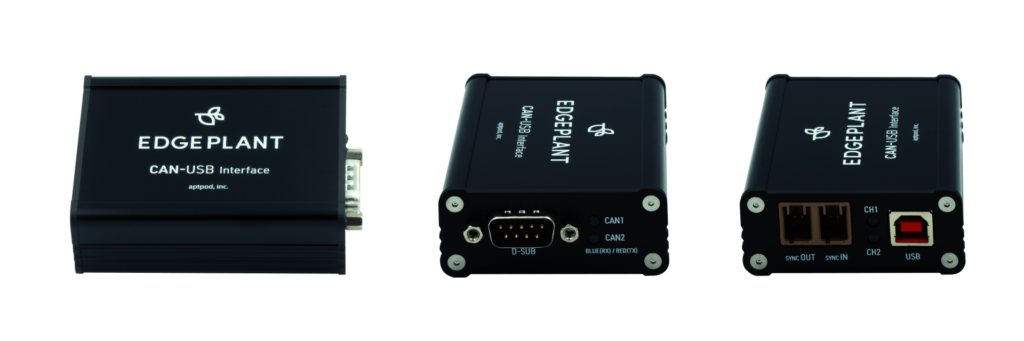

CAN-USB interface that supports two CAN bus channels
• Support of two CAN bus channels.
• Timestamp processing for CAN data.
• Signal synchronization among multiple instruments.
• Signal synchronization with external measuring devices or other equipment.

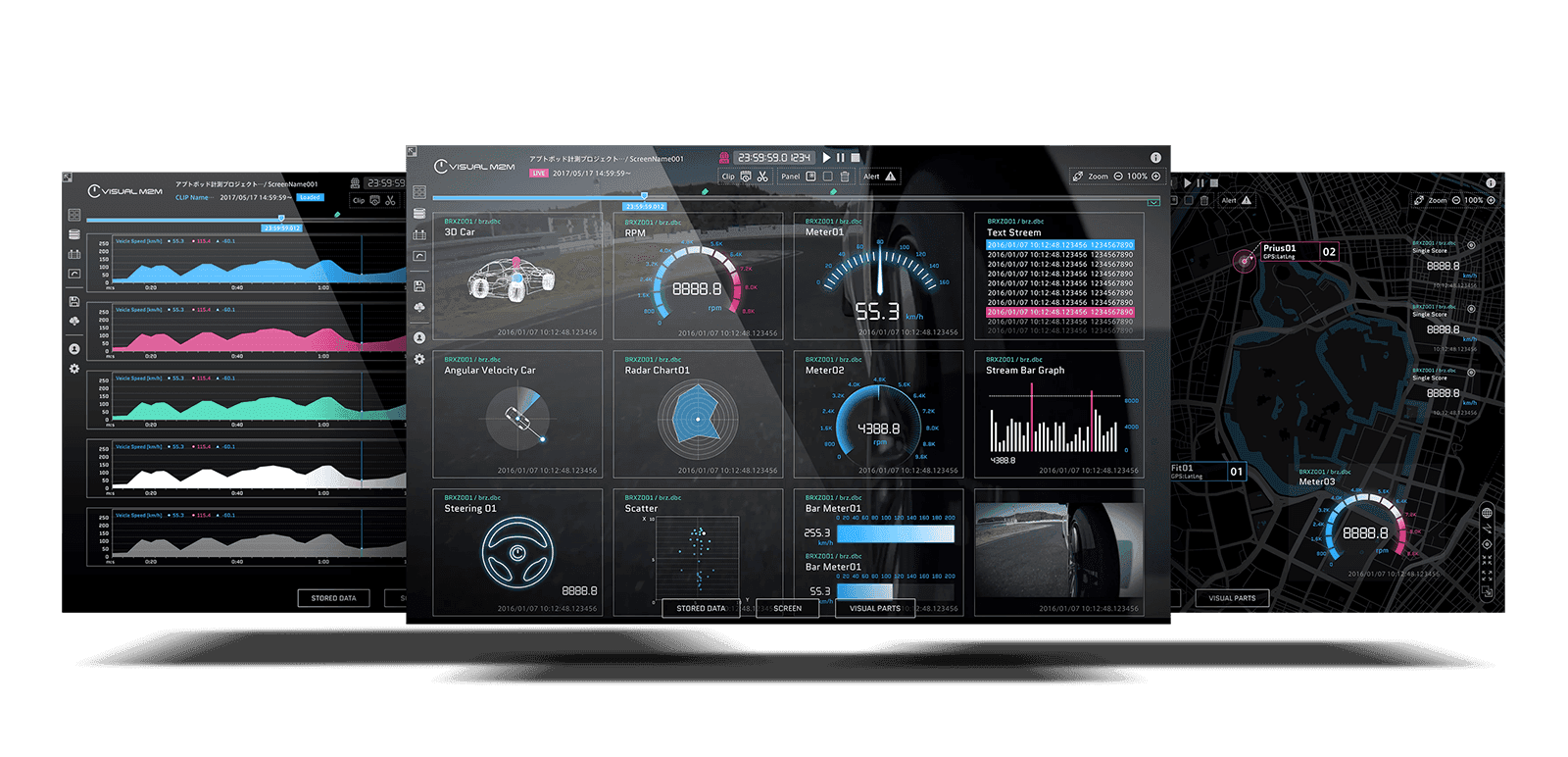

■Data Visualizer
Intuitive browser-based user interface with excellent design
• Functions required for data analysis including data stream playback, analysis graph, and CSV download are provided.
• Users at many sites can access the system at the same time to view real-time data and analyze accumulated data.
Beautiful data visualization anywhere with a browser
Data Visualizer provides a browser-based UI leveraging HTML5. The user can easily create a dashboard and visualize data from various angles with intuitive drag & drop operation.
• Data visualization with a variety of visual parts
• Statistics graphs (such as histograms and scatter diagrams)
• Real-time statistics display
• Data display with 2D or 3D models
• Loading of video data

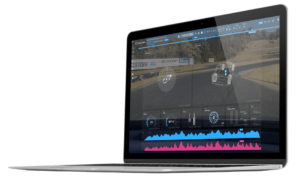

• Parallel and background display of video data and measurement data
• Conversion of binary data into physical values using a CAN database (dbc file)

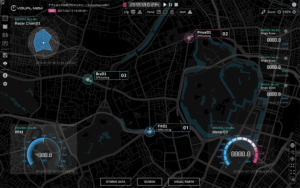

• GPS data mapping
• Vehicle fleet display
• Trajectory display on the map
• Parallel and background display of map data and measurement data
• Display of events (such as errors and values above the threshold) on the trajectory on the map
