Edge Computer System— EDGEPLANT
EDGEPLANT is a hardware brand, specifically designed to enhance edge computer suitably designed for vehicle test.

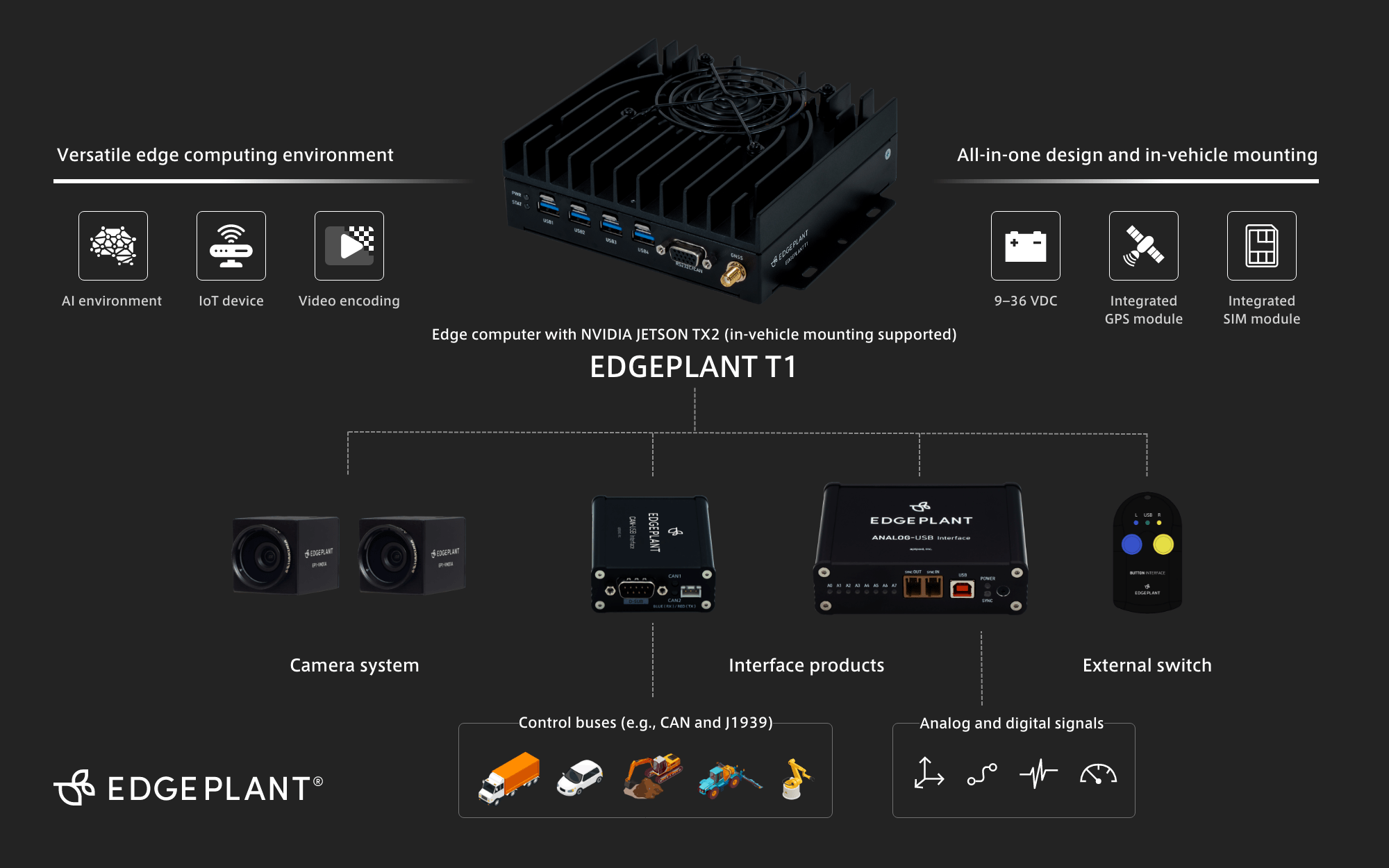

EDGEPLANT series includes powerful edge computers equipped with onboard GPUs, versatile interface devices for connecting to control buses and sensor networks, comprehensive camera systems, and other integral components.
EDGEPLANT series
Maker:
aptpod,Inc.
Product lineup

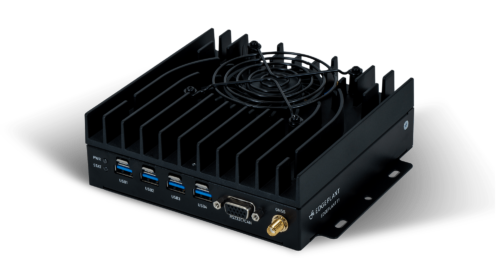

EDGEPLANT T1
The EDGEPLANT T1, equipped with NVIDIA® Jetson™, is a cutting-edge edge computer designed for AI and video processing tasks.
Offering GPU-based edge computing capabilities,
this device is further enhanced with a GPS module, positioning it as a sophisticated solution for advanced IoT applications.
Its blend of high-performance computing and versatile connectivity options makes it an ideal choice for modern, data-intensive environments.
Key features
All-in-one Design
– Design for IoT equipped with GPS.
Design for industrial applications
– Support for a wide range of power voltages (9–36 V) for reliable use in passenger vehicles, commercial vehicles, and construction equipment.
– Conforms to the EMC standards (E mark) required for in-vehicle devices. Noise propagation to the vehicle power system and peripherals is suppressed, and high immunity performance is achieved.
– Wide operating temperature range (−20°C–+65°C).
– USB 3.0 connector with lock mechanism to prevent unintentional cable removal.
– Independent MCU for power management and fault monitoring.
– Highly maintainable external fan mechanism that combines dustproofing and cooling performance.
Video data processing performance
– The device supports multiple camera inputs and encoding, catering to diverse and complex visual data processing needs.
In-vehicle mounting
– Automatic startup and automatic shutdown linked to the ignition of the engine (motor).
– Wake on CAN that starts the computer in response to a specific CAN signal.
Specification
| SoM | NVIDIA® Jetson™ 4GB |
|---|---|
| CPU | Dual NVIDIA® Denver 2 (2.0 GHz), Quad ARM®Cortex®-A57 (2.0 GHz) 6 cores total |
| System memory | 4GB 128-bit LPDDR4 (1600MHz) |
| MCU | STMicroelectronics STM32L071K |
| RTC | Microchip MCP7940M |
| Watchdog timer | To be supported with firmware update. |
| Fault log | Faults can be logged in the EEPROM of the MCU. |
| Built-in storage | 16GB eMMC
1 × M.2 Key M 2242 with SATA3.1*1 |
| GNSS | u-blox NEO-M8 series – Supported satellite positioning systems are GPS, Glonass, QZSS, Galileo, and BeiDou. – The clock can be calibrated at high precision using the PPS signal. |
| LTE | 1×M.2 Key B with USB 3.0 – The EM7430 module from Sierra Wireless is supported.*2 |
| USB | 4 × USB 3.0 (Type A connector with lock mechanism) |
| Ethernet | 1 × 1000Base-T (RJ45) |
| Audio | 1 × 4-pole CTIA (mini jack) |
| HDMI output | 1 × HDMI 1.4b (Type A connector) |
| Wake on CAN | Power-on and shutdown function using CAN communication (to be supported with firmware update) |
| Serial communication | 1 × RS-232C (D-Sub 15pin) |
| LED | 1 × Power LED 1 × Status LED |
| Antenna terminal | 1 × SMA for GNSS 2 × SMA for LTE |
| Protection code of cooling fan | IP55 |
| Maintenance terminal | 1 × USB 2.0 (for recovery) |
| Supported OS | NVIDIA® L4T |
| Standards | FCC Class B, CE, E-mark (ECE Regulation No.10, Revision 6) |
| Operating temperature | −25°C – +65°C |
| Operating humidity | 10%–90% (no condensation) |
| Storage temperature | −40°C – +85°C |
| Storage humidity | 10%–90% (no condensation) |
| Standard external dimensions (width × depth × height) |
135 mm × 143 mm × 48.5 mm (excluding the protrusion) |
| Weight | Approx. 1.0 kg |
| Power supply | 9–36 VDC, 4.6 A (max.) |
*1. A 128-GB industrial grade SSD (Greenliant® GLS87DP128G3-I-BZ202) is equipped as standard.
*2. For wireless communication, EDGEPLANT T1 requires an external communication device such as LTE modem or Wi-Fi router. Please contact us for further details

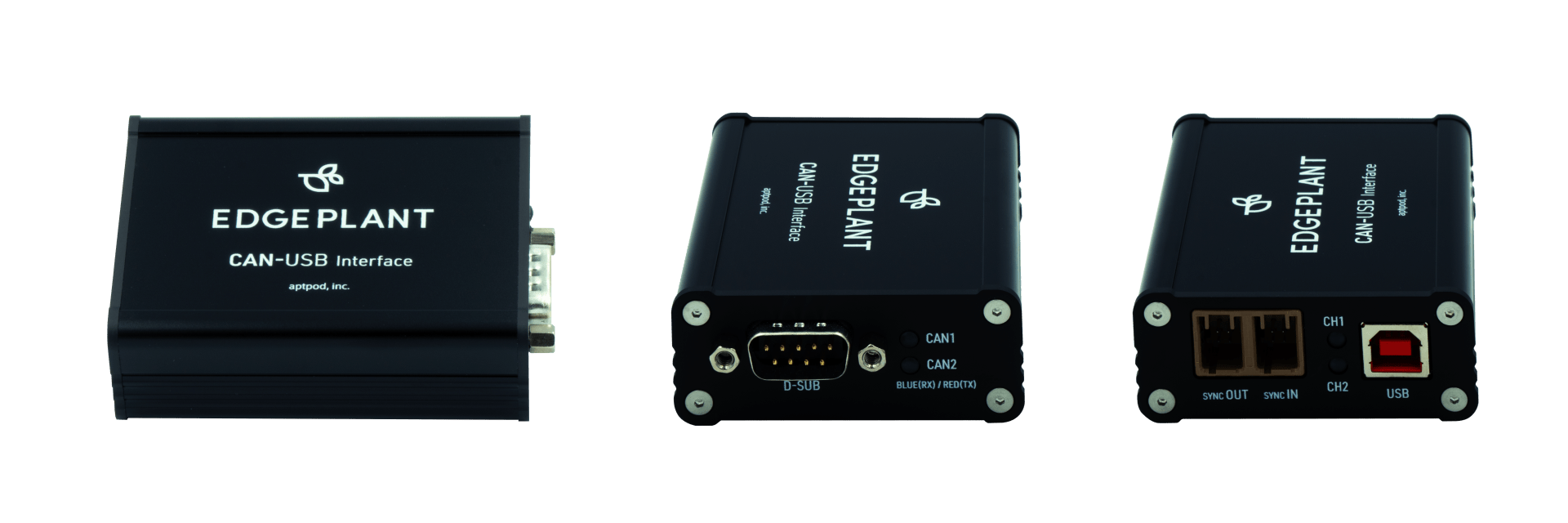

EDGEPLANT CAN-USB
The EDGEPLANT T1, compatible with multiple CAN-USB interfaces, features a hardware mechanism for synchronizing timestamps with microsecond precision, facilitating high-precision data fusion. EDGEPLANT CAN-USB efficiently acquires control signals including CAN and J1939.
Key features
Dual CAN Bus Connectivity
– The interface device supports simultaneous connection to two CAN bus channels through a branching line.
Precision Hardware Timestamping
– Offers high-accuracy hardware-based timestamping for CAN data.
Clock Share Synchronization
– Incorporates a clock share mechanism for aligning timestamps across multiple CAN-USB interfaces.
External Synchronization Output
– Capable of sending synchronization signals to external measurement devices or other related equipment.

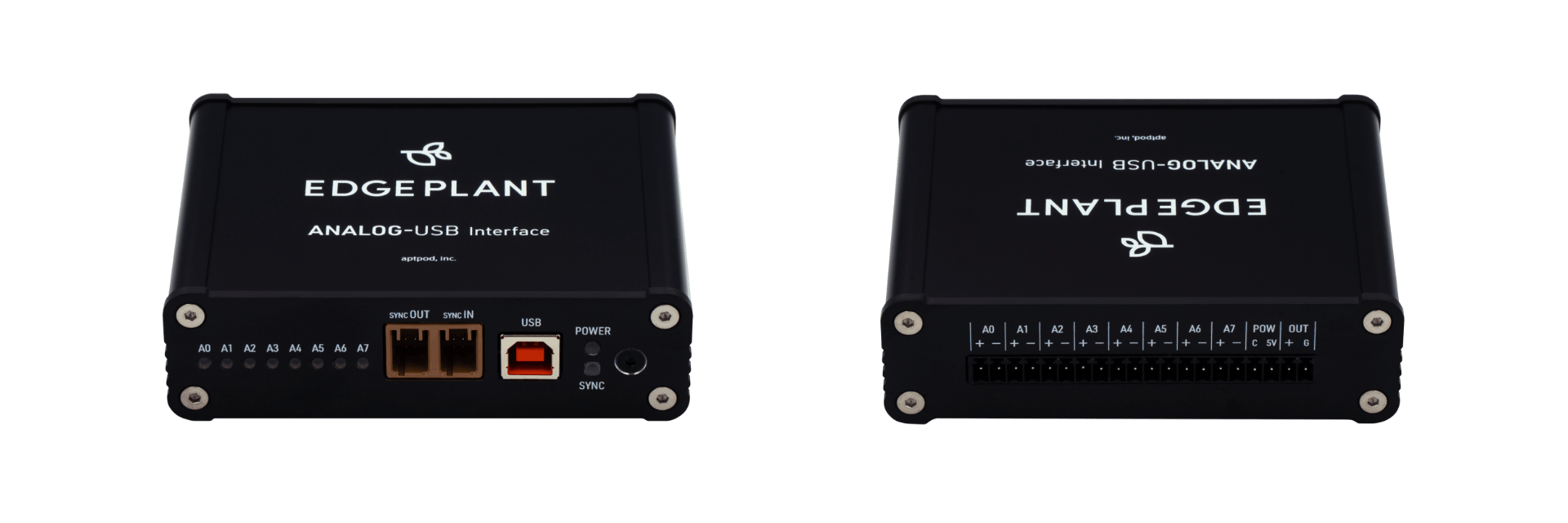

EDGEPLANT ANALOG-USB Interface
The EDGEPLANT ANALOG-USB Interface is designed to connect with analog sensors, acquiring control signals for efficient data management. Integrated with the EDGEPLANT T1, it facilitates high-precision data fusion by utilizing a hardware mechanism that synchronizes timestamps with an accuracy of 1 microsecond.
Key features
High Precision Analog Input
– Offers single-ended 8ch analog input with 16 bit precision with galvanic isolation for enhanced safety and signal integrity.
– Features a 12-bit precision in a single-channel analog output, ensuring detailed and accurate signal processing.
Flexible Input Voltage Range
– Supported input ranges are 0 to 5V, -10 to 10V and -5 to 5V for device application.

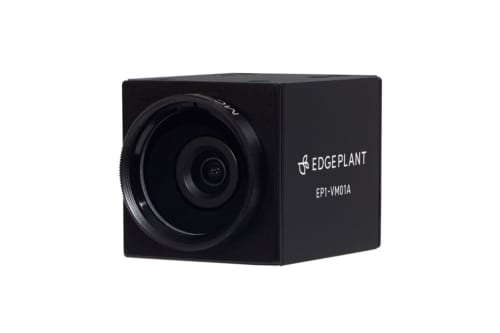

EDGEPLANT USB Camera
The EDGEPLANT USB Camera is an industrial-grade USB camera device, notable for its wide operating temperature range and exceptional resistance to electromagnetic noise. It meets the rigorous standards of the in-vehicle EMS test ISO 11452-2 2019 at 20V/m, ensuring reliable performance in industrial settings, including large vehicles and construction machinery.
Key features
Lightweight and Compact Design
The EDGEPLANT USB Camera is lightweight, approximately 70g, and only about 130g including the cable.
Wide Operating Temperature Range
Designed to function reliably in a range of environments, the camera operates effectively between -20°C and +60°C, making it suitable for both cold and hot conditions.
Superior Electromagnetic Noise Resistance
The camera boasts excellent resistance to electromagnetic noise, passing the ISO 11452-2 2019 test at 20V/m, which underscores its suitability for industrial applications prone to electromagnetic interference.
Compatibility with Consumer Lens Filters
This camera can be equipped with standard 28mm consumer lens filters, providing users the flexibility to adapt to different imaging requirements.
Versatile Mounting Options
Featuring a standard 1/4-inch screw hole for tripod mounting, the camera offers universal mounting options, enhancing its usability across various installation scenarios.
Discover the intdash Automotive Pro CAN/CAN-FD DAQ Bundle: your comprehensive package for remote automotive measurements, featuring an in-vehicle edge computer, CAN data interface device, cloud system, and a sophisticated data visualization and management application.
