- NetVision SVI-09 Parallel Image Recorder
USB 3.0 Output · FPGA Plug-in · Stereo Camera Support · Real-Time Analysis

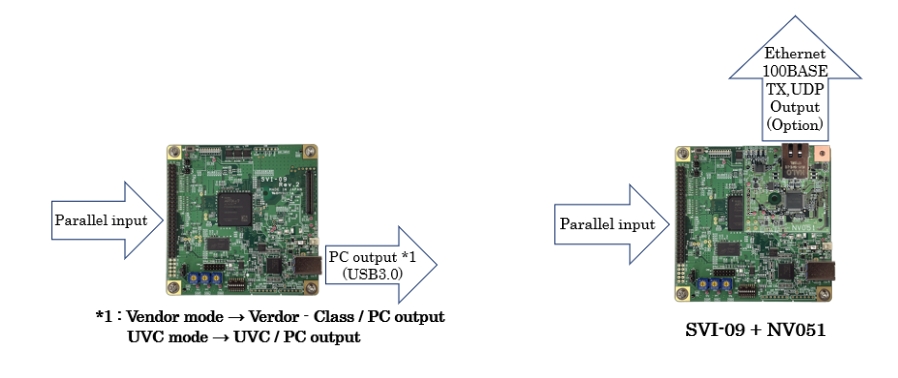

SVI-09 is a board for input/output of parallel-interface video signals to/from USB 3.0.
It supports input up to 8190×4095, ~60 fps at 1920×1080, and ~120 fps at 1280×720.
With FPGA plug-in, I2C/SerDes control, GPIO, and real-time tools (histogram/vector scope in Vendor mode), it suits stereo camera prototyping and live analysis.
Feature
- Parallel I/O: 60-pin and 100-pin ports
- USB 3.0 I/O (Vendor Class / UVC; Windows, Linux)
- FPGA plug-in functions for custom development
- Dual CMOS inputs for stereo camera prototyping
- I2C control (100/200/400 kHz) and up to 16-bit GPIO (per 8-bit direction control)
- Real-time analysis tools in Vendor mode (histogram, vector scope)
- Test pattern output and image clipping functions
Typical Use Cases
-
Display camera module/CMOS sensor video to a DisplayPort monitor
-
Around-view (surround) development
-
Simultaneous monitoring of multiple sensors
■Application Areas
Automotive/transportation equipment, medical testing/analysis/measurement, IT/information/communications, software, education/research institutions.
Specification
| Table Item | Specification | Remarks | |
| Video input interface | Parallel video signal | Supports FPD-Link III, GMSL, GVIF2 as deserializer | |
| Video output interface | USB3.0 (Windows, Linux, UVC Driver) USB3.0 Vendor Driver (Windows) |
Special HDMI monitors are available individually | |
| Input resolution | Up to 8190×4095 pixel | In the case of 1920×1080, about 60 fps In the case of 1280×720, about 120 fps |
|
| Output bit rate | within 3.0 Gbps | In the case of 1920×1080 (UVC mode) about 80 fps In the case of 1920×1080 (HDMI mode) about 60 fps |
|
| Supported sync signal | Vsync, Hsync, Pixel Clock | Supports Embedded Sync (BT.656), Data Enable |
|
| Clock rate | ～ 150 MHz | ー | |
| Supported pixel formats | YUV422 (8 bit, 16 bit) / RGB24 / Raw8, 10, 12 |
ー | |
| Input bit width | 8 / 16 / 24 / 32 bit | Use GPIO pins for 24 and 32 bit | |
| Other interfaces | I2C | Frequency : 100 / 200 / 400 kHz | Voltage level follows VDDL |
| GPIO | Up to 16 bit, IN / OUT direction control every 8 bits | Voltage level follows VDDL | |
| Power supply | Board power (input) | USB bus power / Dedicated 2pin connector (5V) |
ー |
| Target side power (output) | VDDL & VDDH = 1.56 ～ 4.2 V VDDP = 1.5 ～ 4.1 or 5.0 V |
VDDL : IO power supply setting VDDH : Power supply for connection board VDDP : Auxiliary power supply for target device |
|
| Other functions | Test pattern output function Image clipping function FPGA plug-in function |
ROM startup : Function to automatically transmit SerDes setting file (I2C) | |
| Interface connector | 50 + 10 pin (A1-50PA-2.54DSA) 100 pin (LSHM-150-03.0-F-DV-A-N-K-TR) |
10 pin is added for 24 bit or 32 bit input Parallel 2ch / LAN / MIPI Interface can be supported individually with an expansion board using a 100 pin connector |
|
| FPGA | Artix-7 (XC7A35T) | ー | |
| Frame memory | 256 MByte (DDR3-SDRAM) | ー | |
| USB3.0 chip | Cypress EZ-USB FX3 | ー | |
| Dimensions | length x width x height = 101.6 x 101.6 x 25.7 (mm) |
Including spacer (10mm) in height | |
| Attached software Windows |
Video display software | NVCap, SVImon | ー |
| I2C control software | SVMCtl, SVICtl | Including SV board update application | |
| Supported SerDes boards of our company | DS90UB914A, DS90UB934, MAX9272, MAX96706 etc., | ー | |
【SV series common specifications】
Application software：NVCap & SVMCtl, Test pattern output function, Image clipping function
