Parallel Generator SVP-01-G（Previous model# SVO-03）
The Parallel Generator SVP-01-G is a camera emulation board that converts video signals input from USB3.0 or HDMI to parallel video signals and outputs them.
The images recorded on SVP-01-G can be output to image processors, as if they were images from a camera module or CMOS image sensor. CG images can also be used. This makes it possible to develop image processors, even when recording on site is difficult or when you have not had sensors yet such as under developing them.
In addition, the multi-boot function allows for various functions such as outputting HDMI-input to UVC (USB).
Parallel Generator
Model:
SVP-01-G
Maker:
NetVision Co., Ltd.
Features
-Supports parallel output up to 16bit 150MHz
-Input from USB3.0 (Vendor Class) or DisplayPort
-Compatible with 1.9Gbps automotive serializer

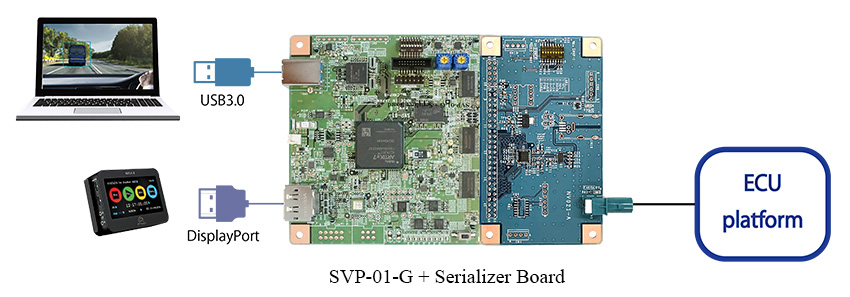

Configuration Example

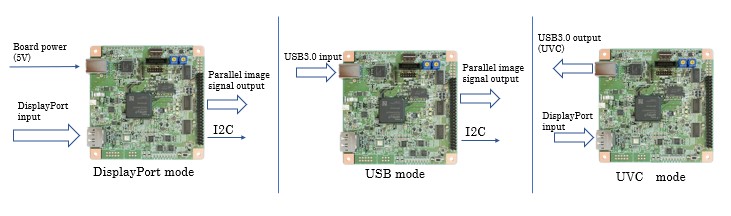

– The DisplayPort input and USB 3.0 input operate in a mode-switching manner, allowing only one of them to be used at a time.
– By using an HDMI to DisplayPort converter, it is also possible to connect to other HDMI recording and playback devices from a PC.
How to Automate Device Initialization Through I2C

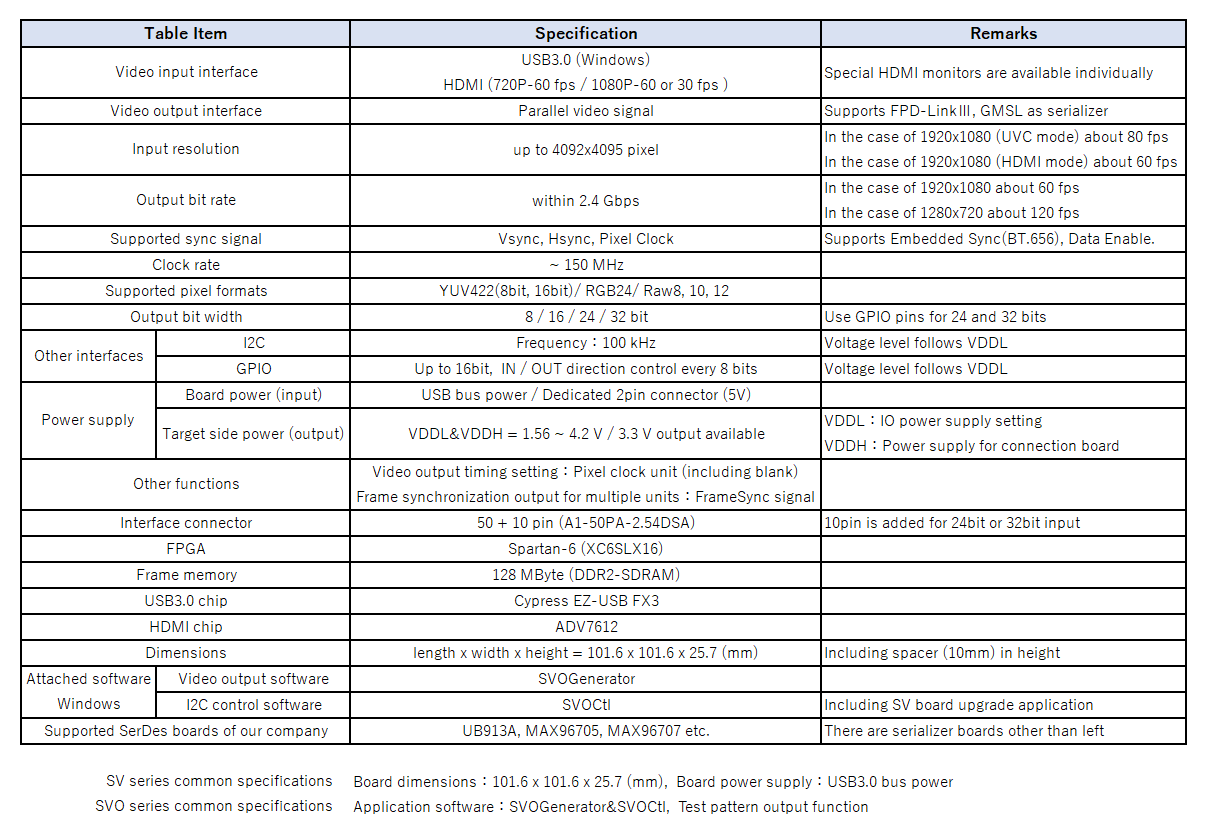

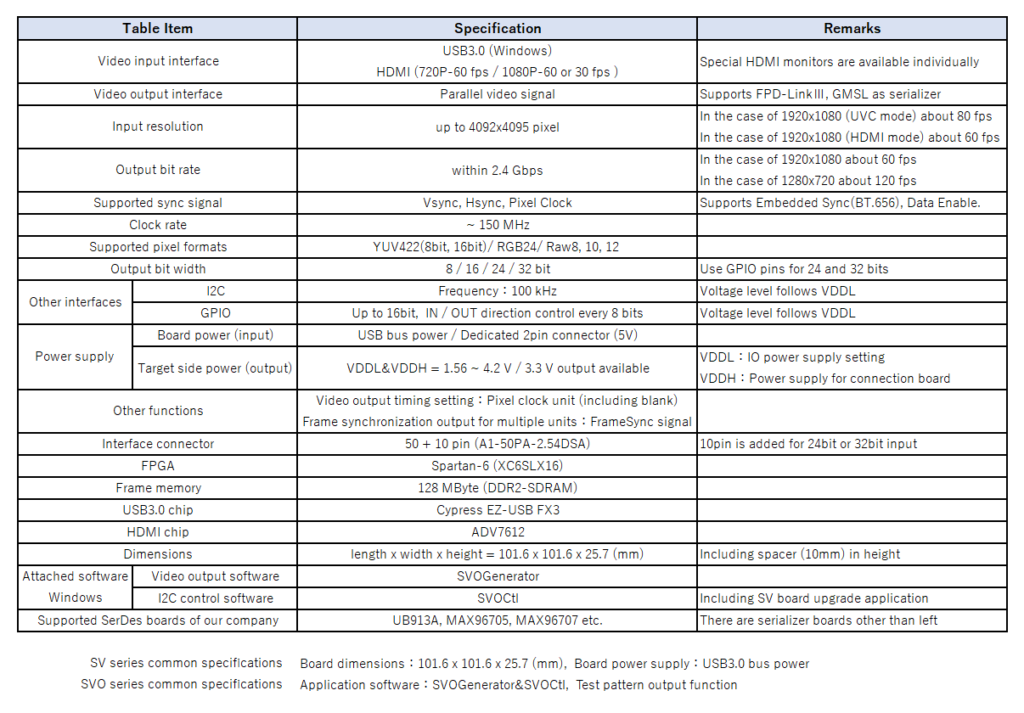

Specification
To view the pdf files, the Adobe Reader from Adobe Systems is required.
