MIPI Generator SVO-03-MIPI
The MIPI Generator SVO-03-MIPI is a camera emulation board that video signals input from USB3.0 or HDMI to MIPI video signals, and outputs them.
The images recorded on SVO-03-MIPI can be output to image processors, as if they were images from a camera module or CMOS image sensor. CG images can also be used.
This makes it possible to develop image processors, even when recording on site is difficult or when you have not had sensors yet such as under developing them.
MIPI Generator
Model:
SVO-03-MIPI
Maker:
NetVision Co., Ltd.
Features
- MIPI CSI-2 supports up to 1Gbps / lane
- Input from USB3.0（Vendor Class) or HDMI
- Compatible with 4Gbps automotive serializer

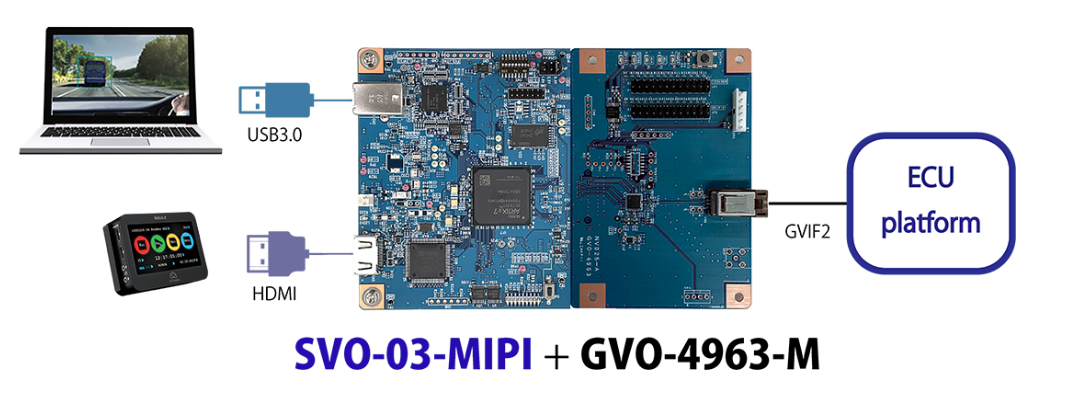

Connection example
SerDes Interface Boards Specification List
Video

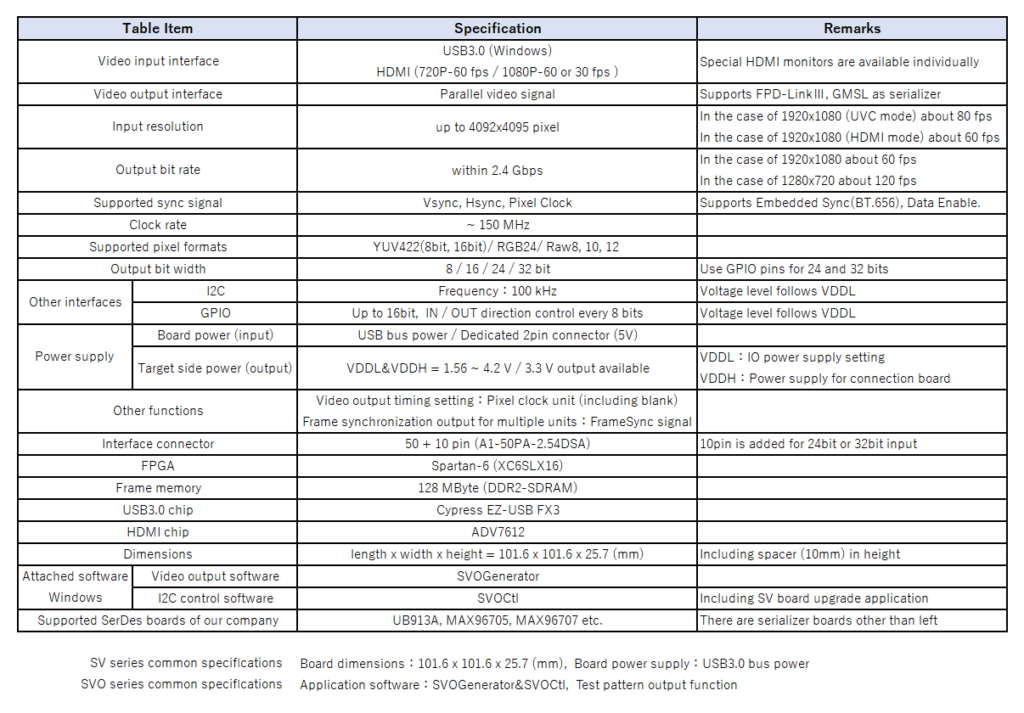

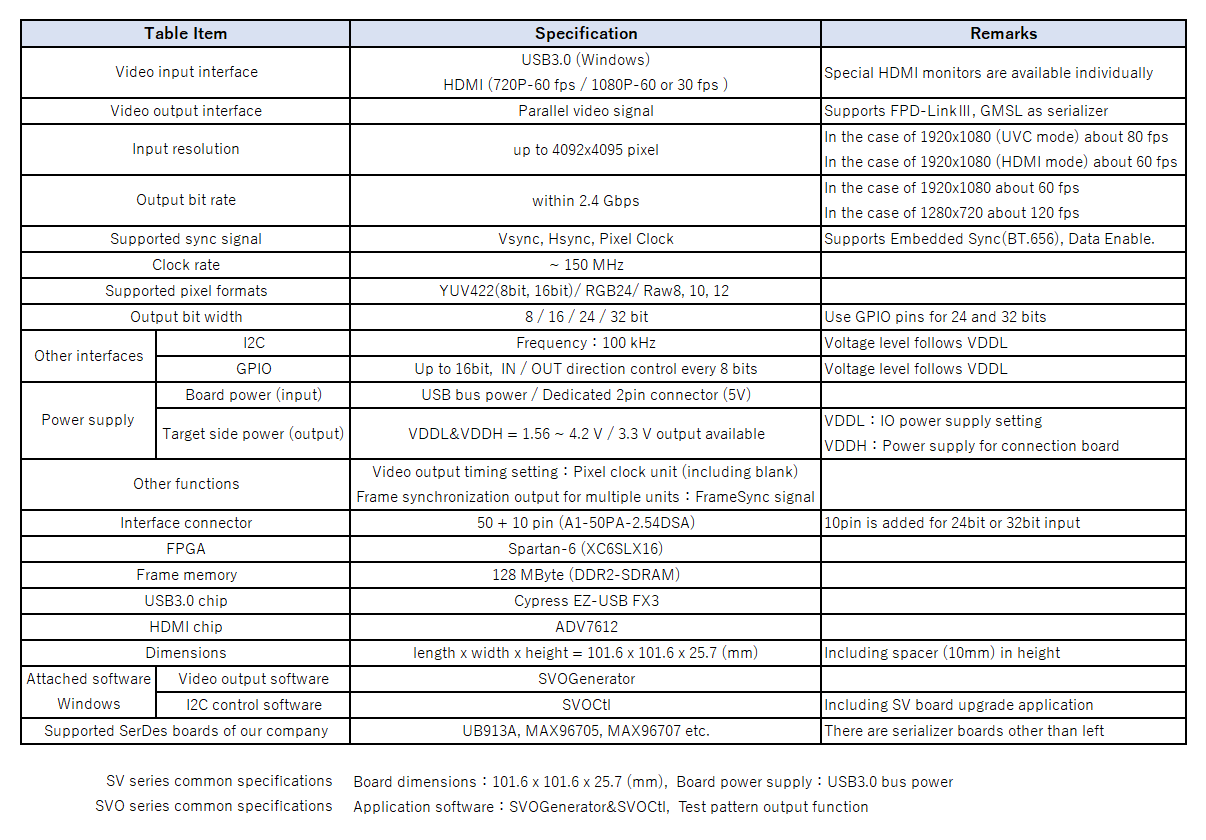

Specifications
To view the pdf files, the Adobe Reader from Adobe Systems is required.
