Thermowave Analyzer TA
Contactless Thermal Diffusivity Measurement

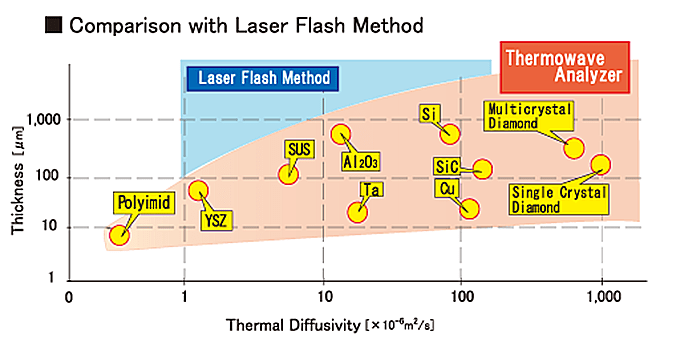

Dynamic Range : Organic films to Diamonds
Thermowave Analyzer TA
Model:
TA
Maker:
Bethel Co., Ltd
Feature
・Measure absolute values of thermal diffusivity
・Anisotropic measurement: In-plane and out of plane directions
・Dynamic range: Organic films to Diamonds
・Contact with sample: Contactless measurement
・Sample shape: Free (disk shape is preferred)
・Thermal conductivity could be derived from the thermal diffusivity
Specification
TA35 | TA33 | TA32 | TA31 | ||
Thermophysical Property Value | Thermal Diffusivity (Absolute) | ||||
Measurement range | 0.1 ∼ 1000[×10-6m2s-1] | ||||
Output data | Frequency, Distance, Amplitude, Phase, Thickness | ||||
Orientation | IN-PLANE | ○ | ○ | - | ○ |
OUT-OF-PLANE | ○ | ○ | ○ | - | |
Distribution | ○ | - | - | - | |
Accessories | Sample stage heater | Option | Option | - | - |
Focus adjustment | Auto | Auto | Manual | Manual | |
Software | ○ | ○ | ○ | ○ | |
PC | ○ | ○ | ○ | ○ | |
Measurement environment | Temperature | Room Temperature | |||
Temperature(Heater installed) | RT ∼ 300[℃] | - | |||
Frequency | 0.01[Hz] ∼ 100[kHz] | ||||
Heating laser(Semiconductor laser) | wavelength | 808[nm] | |||
Maximum output | 1.5[W] | ||||
Radiation thermometer | Element | InSb | |||
Cooling method | Liquid nitrogen | ||||
Stage displacement(XY axis) | Detection stage | ±5[mm] | ±5[mm] | ±5[mm] | - |
Sample stage | ±10[mm] | - | - | - | |
Repeatability | ±5[%] | ||||
Power supply | AC100-240[V], 10-5[A], 50/60[Hz] | ||||
Laser safety standards | CLASS Ⅰ LASER PRODUCT IEC/EN 60825-1:2007 |

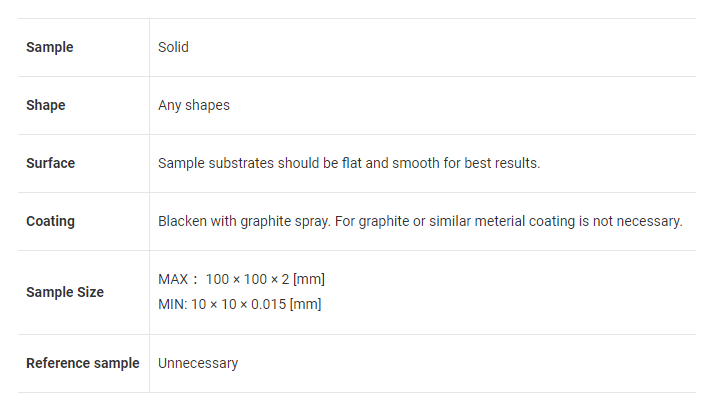

Samples
