SAMICON Polyimide Heater “MPI type”

SAMICON Polyimide Heater "MPI type"

SAMICON Polyimide Heater "MPI type"

Maker:

SAKAGUCHI ELECTRIC HEATERS

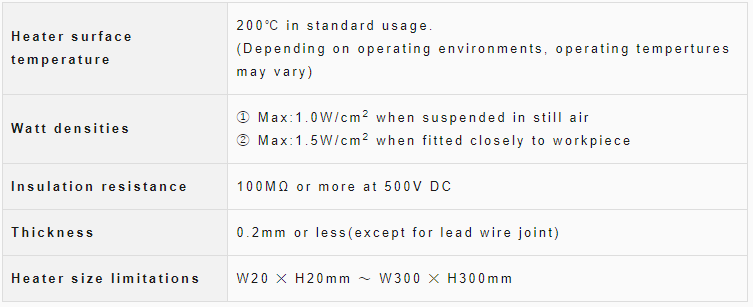

▪Features

  • 【Hight heat resistance】
    This heater operates in environments as high as 200℃ since special polyimide films providing high heat resistance are used for insulators holding heating materials.
  • 【Homogeneous temperature distribution】
    A paper-thin sheet of heating material evenly placed on the heaterʼ s surface. provides high heat efficiency resulting in less chance of uneven heating.
  • 【Ecologically friendly】
    The terminal structure, taking advantage of the thinness of heater, is designed to be ecologically friendly adopting lead-free soldering between a lead wire and terminal.
  • 【Low outgassing】
    The heater products very low rate of outgas as no adhesive is used to paste insulators (polyimide films). The heater is also suitable for environments disliking siloxanes as polyimide films do not produce siloxanes, which cause conduction failure.
  • 【Fast temperature】
    A very thin insulator (polyimide film), 0.2mm thick (or thinner), results in a small heat capacity and thus enables a particularly fast temperature rise.

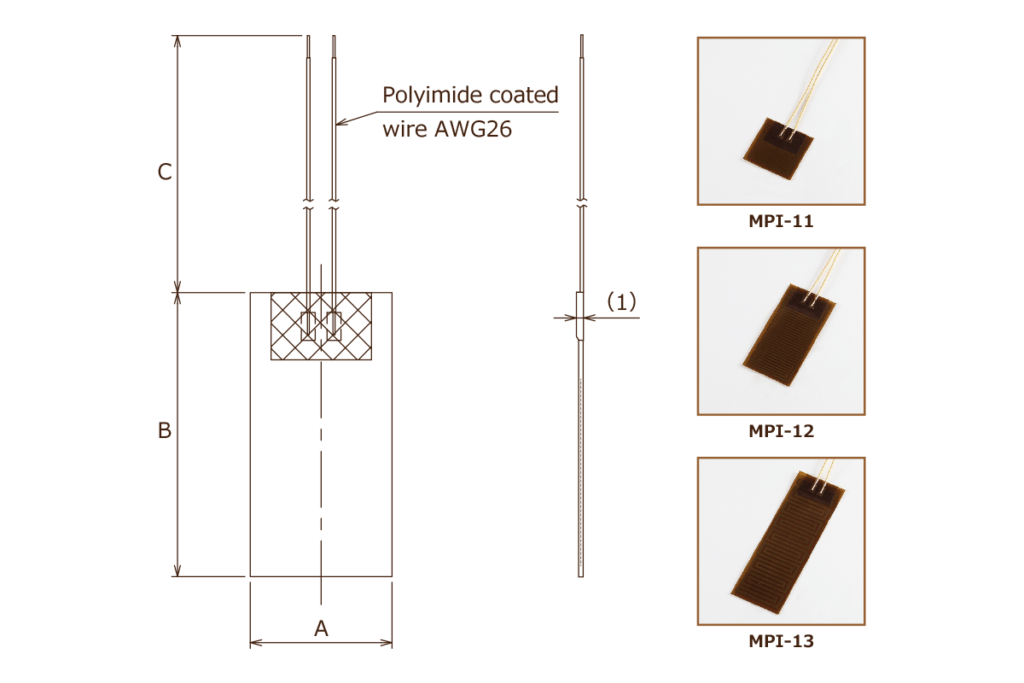

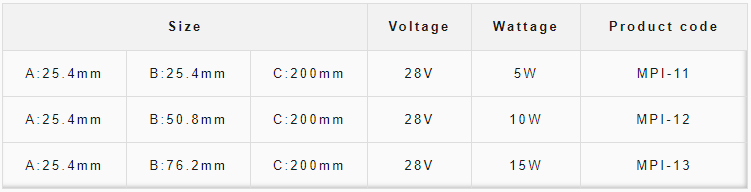

Configure of standard types

All products listed are available in different voltages.
