LISN Controller TNW-LISNCR-02

This unit can remotely control line switching of LISNs manufactured by Kyoritsu Technology and Kyoritsu Denshi Kogyo (excluding some) from a PC using optical communication. It is possible to remotely switch the measurement phase of LISNs in shielded rooms and anechoic chambers.

TNW-LISNCR-02

Model:

TNW-LISNCR-02

Maker:

KYORITSU ELECTRICAL INSTRUMENTS WORKS, LTD.

Specification

Item / Equipment	Controller	Selector
Function	Line Display	Line Select
	16 segment LED and indication by individual LEDs	・Max. 4 lines selection
	Interface	・Reset without line selection, RF signal line input side is terminated.
	RS-232C and optical communication
Interface	RC Interface	Control Interface
	RS-232C or USB serial translation	Optical communication (received)
	Control Interface
	Optical communication (sending)
Signal line noise prevention function	None (not required)	Yes (50 Ω termination for a certain time)

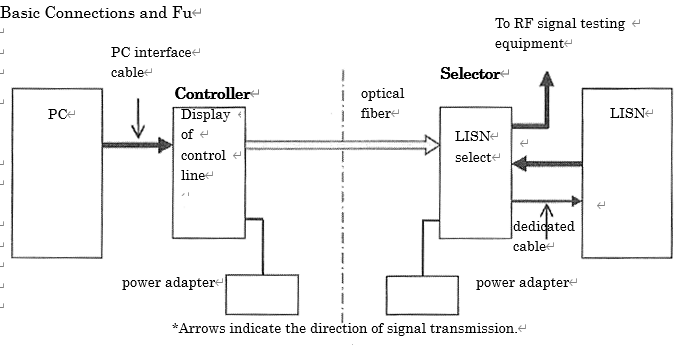

This product consists of a controller and a selector, both of which are connected using a fiber-optic cable.Basic Connections and Fu
