- HIOKI Resistance Meter RM3545A
New Heights in 100% Inspection. Market leading precision tests for testing every weld or connection on your production line.
As electric mobility gains popularity, manufacturers are developing components for higher currents and voltages. Since even minuscule amounts of resistance can have a significant impact on energy efficiency and safety, more accurate quality control focusing on resistance is required. The Resistance Meter RM3545A facilitates accurate resistance measurements and is suitable for diverse applications in development and production lines.
The RM3545A-1 is the successor from RM3545, and the RM3545A-2 is the successor from RM3545-02.

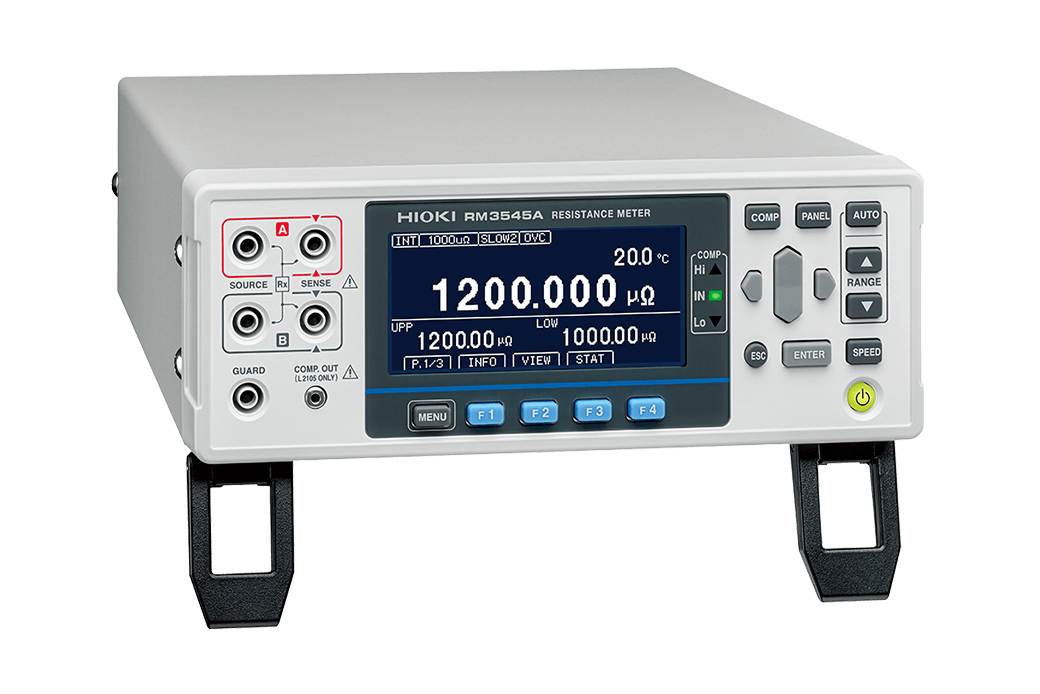

Resistance Meter RM3545A
Model:
RM3545A-1, RM3545A-2
Maker:
HIOKI E.E. CORPORATION
Features
- 0.045% basic accuracy, 1 nΩ max. resolution, 1 A max. testing current
- Measure from 1 nΩ (testing current 1 A) to 1200 MΩ
- Equipped with advanced features, ensuring precise resistance measurement (OVC, temperature measurement, and correction function)
- The RM3545A-2 can be equipped with up to two optional Z3003 Multiplexer Units, allowing it to measure up to 20 channels (using the 4-terminal method)
- High path resistance tolerance allows seamless integration into an automatic test system, eliminating concerns about wiring or contact resistance
- Advanced contact-check, comparator function, control, and communications features
Specifications comparison with new and previous models
Accuracy guaranteed for 1 year
| Item | RM3545A | RM3545 (pevious model) |
|---|---|---|
| Resistance range |
[Range, Maximum display value, Resolutions, Testing current (Measurement current) ] 1000 μΩ: 1200.000 μΩ, 1 nΩ, 1 A 10 mΩ: 12.000 00 mΩ, 10 nΩ, 1 A 100 mΩ: 120.000 0 mΩ, 100 nΩ, 1 A 1000 mΩ: 1200.000 mΩ, 1 μΩ, 100 mA 10 Ω: 12.000 00 Ω, 10 μΩ, 10 mA 100 Ω: 120.000 0 Ω, 100 μΩ, 10 mA 1000 Ω: 1200.000 Ω, 1 mΩ, 1 mA 10 kΩ: 12.000 00 kΩ, 10 mΩ, 1 mA 100 kΩ: 120.000 0 kΩ, 100 mΩ, 100 μA 1000 kΩ: 1200.000 kΩ, 1 Ω, 10 μA 10 MΩ 12.000 00 MΩ, 10 Ω, 1 μA 100 MΩ (100 MΩ range high-precision mode): 120.000 0 MΩ, 100 Ω, 100 nA 1000 MΩ: 1200.0 MΩ, 100 kΩ, 1 μA or less |
10 mΩ (12.00000 mΩ display Max., 10 nΩ resolution) to 1000 MΩ range (1200.0 MΩ display Max., 100 kΩ resolution), 12 steps [LP ON] 1000 mΩ (1200.00 mΩ display Max., 10 µΩ resolution) to 1000 Ω range (1200.00 Ω display Max., 10 mΩ resolution), 4 steps |
| Representative accuracy |
1000 μΩ: ±0.045% rdg ±0.010% f.s. 10 mΩ: ±0.045% rdg ±0.001% f.s. 100 mΩ: ±0.045% rdg ±0.001% f.s. 1000 mΩ: ±0.012% rdg ±0.001% f.s. 1000 Ω: ±0.006% rdg ±0.001% f.s. |
1000 μΩ: N/A 10 mΩ: ±0.060% rdg ±0.001% f.s. 100 mΩ: ±0.060% rdg ±0.001% f.s. 1000 mΩ: ±0.012% rdg ±0.001% f.s. 1000 Ω: ±0.006% rdg ±0.001% f.s. |
| Testing current(Measurement current) |
High mode: 1000μΩ (1 A) to 1000 MΩ (up to 1 μA) Low mode: 100 mΩ (100 mA) to 100 Ω (1 mA) Low power mode (LP): Low power measurement with measurement current and open circuit voltage down to 20 mV LP1000 mΩ (1 mA) to LP1000 Ω (5 μA) |
1 A DC to 1 µA or less [LP ON] 1 mA to 5 μA DC |
| Measurement speed |
Representative value: FAST (2.3 ms) / MED (50 Hz: 22 ms, 60 Hz: 19 ms) / SLOW1 (102 ms) / SLOW2 (202 ms) PR(Pure Resistance)10 mΩ range: FAST (21 ms) / MED (50 Hz: 41 ms, 60 Hz: 37 ms) / SLOW1 (121 ms) / SLOW2 (221 ms) |
Representative value: FAST (2.2 ms) / MED (50 Hz: 21 ms, 60 Hz: 18 ms) / SLOW1 (102 ms) / SLOW2 (202 ms) 10 mΩ range: FAST (41 ms) / MED (50 Hz: 61 ms, 60 Hz: 58 ms) / SLOW1 (141 ms) / SLOW2 (241 ms) |
| Maximum open-terminal voltage |
8 V (1000 Ω or less) 20 V (10 kΩ or greater) |
5.5 V max. (1000 Ω range or less) 20 V (10 kΩ range or more) LP mode: 20 mV max. |
| Temperature measurement |
Temperature Sensor (Z2001[included accessories]): -10.0℃ to 99.9℃ Analog input (Ex: Infrared thermometer): DC 0 V to 2.0 V |
-10.0°C to 99.9°C, accuracy: ±0.50°C (Temperature Sensor Z2001 and RM3545 combined accuracy), -99.9°C to 999.9°C (analog input) |
| Multiplexer support |
[Only RM3545A-02] Multiplexer unit Z3003 Number of installable units：Max. 2 Maximum number of channels : 20 channels (4-wire method), 42 channels (2-wire method) Switching time: 30 ms |
[Only RM3545-02] Multiplexer unit Z3003 Number of installed units: Max. 2 Measurement terminal settings : Front terminals / MUX (multiplexer) Number of channels that can be set: 42 channels switching time: 30 ms (reference value) |
| Multiplexer (external option) |
Switch Mainframe Maximum number of channels (SW1001): 33 channels (4-wire method) Maximum number of channels (SW1002): 132 channels (4-wire method) Switching time：11 ms |
– |
| Communication interfaces | LAN (TCP/IP, 10BASE-T/100BASE-TX), RS-232C (Max. 115200 bps, also used as printer interface), USB, EXT I/O (D-sub 37-pin, Analog output (D/A output voltage range: DC 0 V to 1.5 V ) | Select from GP-IB (RM3545-01 only), RS-232C, Printer (RS-232C), or USB . Remote function, communications monitor function, data output function, memory (50) |
| Functions |
Contact check, Zero adjustment (within each range ±50% f.s.) *1, Zero-adjustment-free accuracy guaranteed, OVC function, Contact improvement function (max. applied voltage: 5V; max. applied current: 10 mA), Low-power mode (maximum open voltage: 20 mV), Auto-hold function, Comparator, Temperature measurement function, Temperature correction (TC) function, Temperature conversion (ΔT) function, Statistical calculation function, Delay function, Averaging function, Saving panels (saving of measurement conditions), Data memory function, Command monitor function (display of send/receive status of commands and queries),LabVIEW® Driver compatible*2 *1: Zero adjustment forcibly disabled for 100 MΩ or greater *2: LabVIEW Driver is the trademark or registered trademark of National Instruments. |
Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/ REF%), BIN, key-lock (OFF, menu lock, all lock), display digit count selection function (7- digit/ 6-digit/ 5-digit), automatic power supply frequency settings (AUTO/ 50Hz/ 60Hz), scaling, judgment sound setting, auto hold, averaging, statistical calculations, panel store/panel load, D/A output. |
| Power supply |
100 to 240 V AC, 50/60 Hz Rated power consumption: 40 VA max. |
|
| Dimensions | 215 mm × 80 mm × 306.5 mm | |
| Mass |
RM3545A-1: 2.7 kg RM3545A-2: 3.4 kg |
RM3545 / RM3545-01: 2.5 kg RM3545-02: 3.2 kg |
| Included accessories | Power cord ×1, Temperature sensor Z2001 ×1, Male EXT I/O connector ×1, EXT. I/O connector cover ×1, Spare fuse (F1.6AH 250 V)×1, Start up guide ×1, Operating Precautions ×1, Instruction manual ×1 | Power cord ×1, Clip type lead L2101 ×1, temperature sensor Z2001 ×1, Male EXT I/O connector ×1, Instruction manual ×1, USB cable (A-to-B type) ×1, Spare fuse ×1 |
